Hydro Systems 38411 Accudose E-Gap Dilution System for 3 Products
With just the touch of a button, concentrated chemicals can be automatically diluted and dispensed into spray bottles,buckets or other containers.
HY038411000
In stock
Part List
Technical Bulletin
Technical Specifications - Brand Accudose
- Color Beige
- Components 3 buttons
- Configuration Multiple
- Locking No Unit Converter
Our best suggestions
Detailed Description

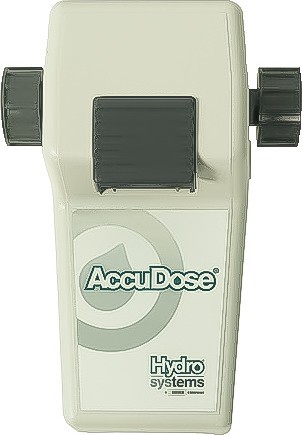

Accudose E-Gap Dilution Dispenser HYDRO
AccuDose dispensers are an economical way to dispense a variety of automatically diluted solutions. With just the touch of a button, concentrated chemicals can be automatically diluted and dispensed into spray bottles, buckets or other containers.The dilution is controlled by drawing chemicals through various metering tips and injecting the metered amount into the water flow. AccuDose can dilute with consistent accuracy at water pressures below 40 PSI.
ADVANTAGES
- Approximate Dilution Range: 128:1/3:1 (1 GPM Max*/Min) and 350:1/3.5:1 (3.5 GPM Max*/Min)
- Customize with any combination of product configurations
- Fittings allow for more than three products to be dispensed
- Expandable installation
- Time and labour savings; solutions are prepared accurately with reduced preparation time
- Hydro’s E-Gap educators provide backflow protection through the use of an elastomeric sleeve (ASSE 1055B Approved)
Technical Specifications
|
Brand
|
Accudose
|
|
Color
|
Beige
|
|
Components
|
3 buttons
|
|
Configuration
|
Multiple
|
|
Locking
|
No
|
|
Manufacturer
|
Hydro Systems
|
|
Material
|
Plastic
|
|
Maximum Flow
|
3.5 GPM
|
|
Minimum Flow
|
1 GPM
|
|
Model
|
3 products
|
|
Mounted
|
Wall mount
|
|
Pressure
|
40 PSI
|
|
Style
|
E-GAP
|
|
Type
|
Dilution system
|
|
Use
|
Chemical Products
|
