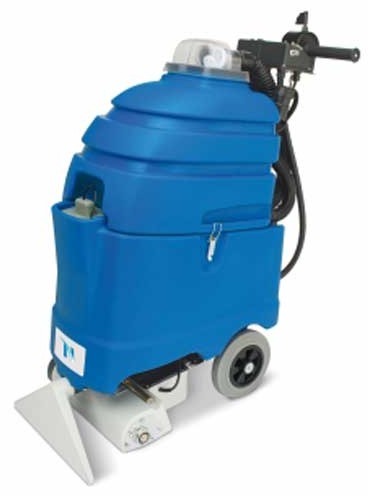

Nacecare Carpet Extractor AVB 9QX
Pull back carpet extractor with twin brush
NA080251930
In stock
Part List
Technical Bulletin
Technical Specifications - Capacity 9 gal US (34 L)
- Water Lift 135"
- Color Blue
- Air Flow 95 CFM
- Water flow 1.2 gpm Unit Converter
Detailed Description
Carpet extractor with twin brush AVB 9QX
- With a sound level of only 60 DBA the carpet extractor AVB 9QX can be used in even the most sensitive areas
- Dual counter rotating 16" brushes ensure it can handle the toughest of jobs as it truly is the market leader in pull back carpet extractors
- The high waterlift motor provides excellent soil recovery and carpet dry in 1 hour
- The Patented "Click" system allows the carpet extractor to be moved forward without tilting it back to raise the brush
- Brush pressure is fully ajustable for different types of carpet
- The water flow rate is variable, allowing for low moisture or full restoration cleaning
- Quick disconnect jets are standard and an optional hard floor squeegee is available
Technical Specifications
|
Manufacturer
|
Nacecare
|
|
Capacity
|
9 gal US (34 L)
|
|
Water Lift
|
135"
|
|
Color
|
Blue
|
|
Air Flow
|
95 CFM
|
|
Water flow
|
1.2 gpm
|
|
Dimensions
|
31.49" x 15.75" x 36.61"
|
|
Working Width
|
15.75"
|
|
Power Cord Length
|
50' (15.2 m)
|
|
Pipe Length
|
Optional
|
|
Vacuum Motor
|
3 Stages
|
|
Sound Level
|
60 dB(A)
|
|
Nose
|
4 jets
|
|
Weight
|
105.82 lb
|
|
Power Pressure
|
130 PSI
|
|
Power
|
1400 W
|
|
Pump Power
|
100 W
|
|
Vacuum Motor Power
|
1.87 HP
|
|
Brush RPM
|
600 RPM
|
|
Tension
|
120 V - 60 HZ
|
