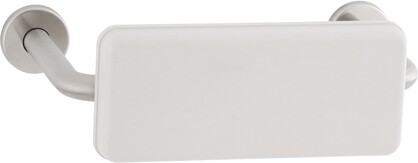

Bobrick 5892 Grab Bar Rail with Padded Back Bar
The Grab Bar Rail comes with a Padded Back Bar with a stainless steel and a satin finish to give yo the support that you need.
BO005892000
In stock
Part List
Technical Bulletin
Technical Specifications - Color Stainless steel
- Depth 11-1/8" (28,3 cm)
- Diameter 1-1/4" (3.2 cm)
- Dimensions 16" x 11-1/8"
- Feature Padded Cushion Unit Converter
Our best suggestions
Detailed Description
Grab bar with padded back bar
The grab bar comes with a padded back bar made of type 304 stainless steel and satin finish and which is equipped with six screw holes for wall mounting to ensure good stability.
The back bar shall have a wall thickness of 1.2 mm (18 gauge) and an outside diameter of 30 mm (1-1/4in). The clearance between the grab bar and the wall shall be 210mm (8-1/4in)and The concealed mounting flanges contains a 3mm (11 gauge), 50 x 80mm (2in x 3-1/8in) stainless steel plate.
The flange covers shall be 0.8mm (22 gauge) stainless steel, 85mm (3-1/4in) in diameter, and shall snap onto the mounting flanges to conceal the mounting screws
The ends of the grab bar shall pass through the concealed mounting flanges and be welded to the heliarc to form a structural unit.
The grab bar has a 360 x 160 x 40mm (14-1/4 x 6-3/8in x 1-5/8in) white polyurethane integral foam back.
Technical Specifications
|
Color
|
Stainless steel
|
|
Depth
|
11-1/8" (28,3 cm)
|
|
Diameter
|
1-1/4" (3.2 cm)
|
|
Dimensions
|
16" x 11-1/8"
|
|
Feature
|
Padded Cushion
|
|
Manufacturer
|
Bobrick
|
|
Material
|
Stainless Steel
|
|
Mounted
|
Wall
|
|
Type
|
Grab bar with back cushion
|
|
Width
|
16" (40,6 cm)
|
