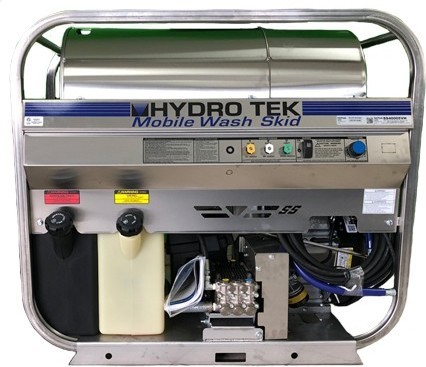

16616 Hot Water Mobile Wash Skid Hydro Tek SS40005VH

Hydro Tek SS40005VH hot water mobile wash skid is a power washer that uses the 12-volt charging system on the engine to power the diesel-fired burner giving you continuous hot water.
MU001661600
Technical Specifications
  • Dimensions 47.5" x 26" x 40"
  • Material Stainless Steel
  • Max Output Temperature 250° F (maximum)
  • Power Pressure 4000 PSI
  • Powerful Vacuum Motor 18 HP
  • Unit Converter

Detailed Description

Hot Water Mobile Wash Skid Hydro Tek SS40005VH

Its compact size allows passage through commercial doorways, and simple design makes it easy to run and maintain. The SS series is versatile, you select a mounting option: on a trailer, on a truck, on wheels or stationary.

The SS Series has the output to perform heavy duty cleaning without needing any outside electrical power. Simply turn the key for high pressure, hot cleaning strength. An invaluable piece of equipment for property management companies, farmers, mechanics or anyone requiring a mobile cleaning solution for dirt, grease, and grime.

  • Rugged, powder coated Pro-Tect-It™ frame, stainless panels, coil wrap, and double-wall coil end caps
  • Can be installed on a trailer, on a truck, on wheels or stationary
  • Vanguard gas engine. Twin cylinder, electric start
  • AR pump, Triplex ceramic plunger
  • Lighted control switch
  • Unloader valve, Industrial Fittings, Safety Burst Disc
  • Pressure feed from garden hose with convenient frame mounted fitting (float tank available)
  • Spiralast™ robotically fused 1/2" schedule. 80 steel pipe, cold rolled 4 spiral, ceramic insulation
  • 48" molded insulator wand with multi-nozzle holder and quick coupler
  • Nozzles #4.5 (15º, 40º), #3.5 (25º steam)
  • Diesel fuel, kerosene, or fuel oil, 8 gallons – 386,400 BTU input
  • Battery not included*


Technical Specifications

Dimensions
47.5" x 26" x 40"
Material
Stainless Steel
Max Output Temperature
250° F (maximum)
Power Pressure
4000 PSI
Powerful Vacuum Motor
18 HP
Type
Pressure washer on platform
Water flow
4.8 gallon / minute
Weight
450 lb
Serie
SS
Model
SS40005VH
Manufacturer
Hydro Tek
