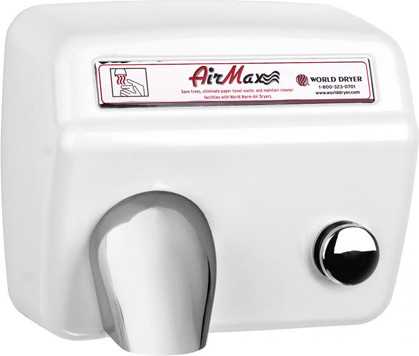

Airmax Push Button Ultra-Speed Hand Dryer #NVDM5497200
This product
is not available

with the option set selected. Please try another set of options.

If you have any questions, please contact us.

514-645-2753

Canada Hand Dryers Airmax Push Button Ultra-Speed Hand Dryer

Airmax push button hand dryer cuts drying time by 50%
NVDM5497200
Technical Specifications
  • Type Push Botton
  • Input Voltage 208-230 V - 60 Hz
  • Sound Level 75 dB
  • Hand Dry Time 30 seconds
  • Material Cast iron
  • Unit Converter

Detailed Description

Ultra-Speed Push Button Hand Dryer

With a 275 CFM output, the AirMax cuts drying time by 50 % compared to the Model A. Durable and incredibly powerful, the AirMax is also energy-saving and Greenspec Certified. Available in white porcelain enamel coated cast iron, polished or brushed stainless steel, both surface and recessed mount.

Features:

  • Motor: universal type, 1/6 HP, 12,000 RPM at rated load with resilient mountings and sealed, permanently lubricated ball bearings for durability and extremely rapid drying
  • Heating Element: industrial strength spiral wound element with integrated high-temperature limit switch
  • Push button models: durable cam-activated timer to operate dryer for 20 seconds after activation
  • No-touch Circuitry: environmentally sealed reflective infrared sensor to detect hands, initiate and terminate drying
  • Cover and finish: cover construction of 1/4" cast iron. Exposed areas are porcelain enameled. Stainless steel tamper-resistance air intake grills. Stainless steel covers also available
  • Internal assembly: dynamically balanced blower wheel for vibration-free running. Internal parts are plated with corrosion-resistant material
  • Locking mechanism: two tamper-resistant screws lock cover securely to base
  • Mounting: can be easily mounted on wood, cement, brick, tiled cement or hollow walls

Technical Specifications

Type
Push Botton
Input Voltage
208-230 V - 60 Hz
Sound Level
75 dB
Hand Dry Time
30 seconds
Material
Cast iron
Warranty
10 years
Heigth
9" (22.9 cm)
Width
10" (25,4 cm)
Depth
9" (22.9 cm)
Motor
1/6 hp
Motor Speed
12 000 rpm
Powerful
2300 watts
Airspeed
238 cfm
Model
Airmax
Manufacturer
Canada Hand Dryers
