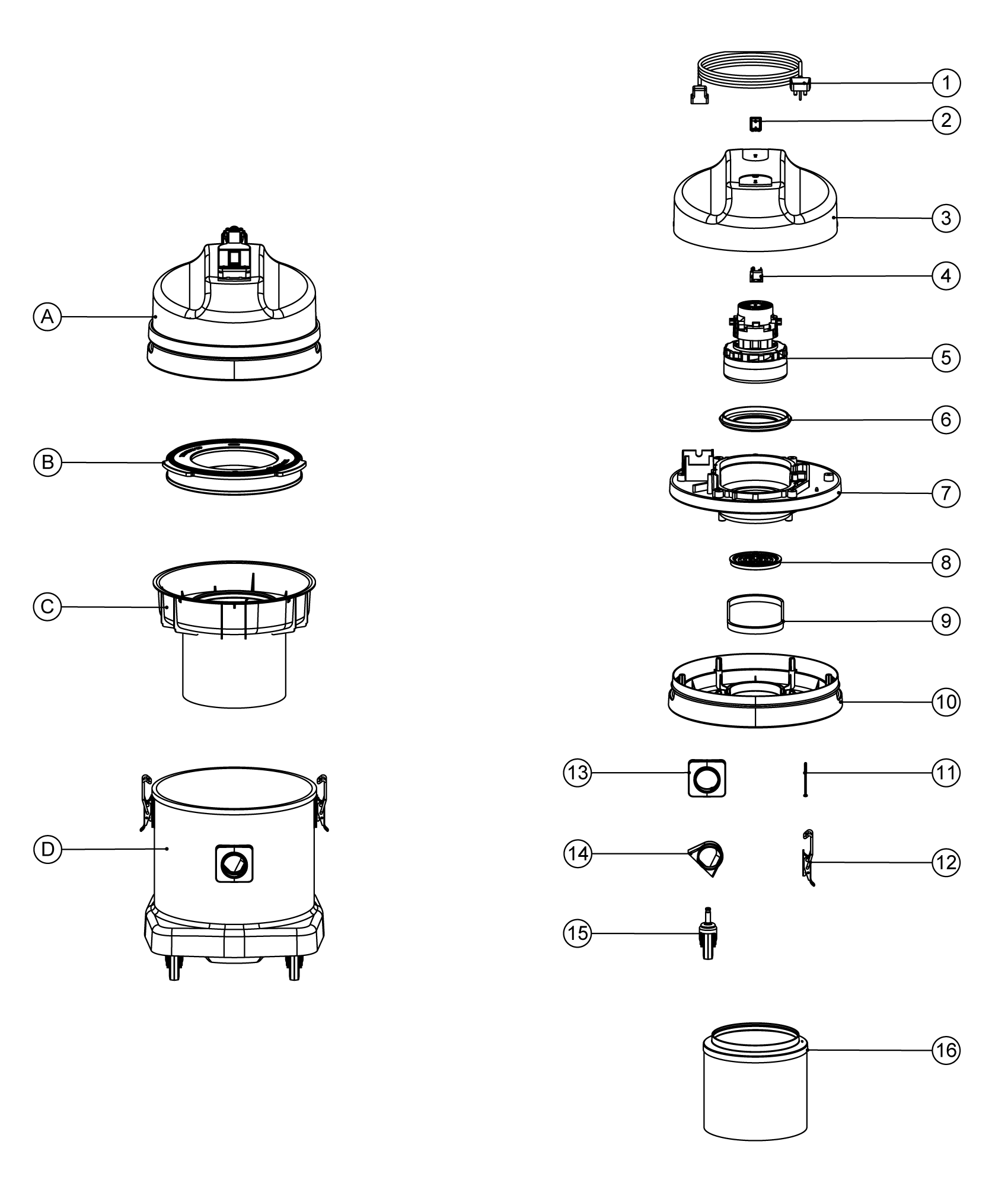

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA588886000 | A | Cvd 14 inch black plastic lamb head assembly (bp) (v30/53/83) (euro & south africa) | Demander un prix |
|
NA588992000 | A | Cvd 14 inch black plastic lamb head assembly (bp) (v16/81) (uk) | Demander un prix |
|
NA588885000 | A | Cv 14 inch black plastic lamb head assembly (bp) (v30/53/83) (euro & south africa) | Demander un prix |
|
NA588947000 | A | Cv 14 inch black plastic lamb head assembly (bp) (v16/81) (uk) | Demander un prix |
|
NA236009000 | 1 | 10.0m x 1.00mm x 2 core nucable (uk plug) | Demander un prix |
|
NA236013000 | 1 | 10.0m x 1.00mm x 2 core nucable (euro plug) | Demander un prix |
|
NA220843000 | 2 | Blue rocker switch | Demander un prix |
|
NA227043000 | 3 | Cover moulding | Demander un prix |
|
NA220555000 | 4 | 230v delay start module | Demander un prix |
|
NA205411000 | 5 | 240v 2 stage d.i bypass acustek motor (bl21104)(marked 230v) | Demander un prix |
|
NA202005000 | 6 | Motor bottom gasket | Demander un prix |
|
NA301048000 | 7 | Processed bottom motor housing | Demander un prix |
|
NA301047000 | 7 | Processed bottom motor housing | Demander un prix |
|
NA206010000 | 8 | Fan guard | Demander un prix |
|
NA202138000 | 9 | Gasket seal 14" adaptor cvd/s | Demander un prix |
|
NA237610000 | 10 | Adaptor bottom motor housing 14" wet | Demander un prix |
|
NA291094000 | 11 | No8 x 2.95 tx-pn-plast screw (stainless steel) | Demander un prix |
|
NA000900391 | B | Cartridge filter | Demander un prix |
|
NA502988000 | C | Float cage assembly | Demander un prix |
|
NA525097000 | D | 570 drum assembly | Demander un prix |
|
NA206135000 | 12 | Toggle fastener | Demander un prix |
|
NA206024000 | 13 | Dry hose connector flange | Demander un prix |
|
NA227811000 | 14 | Water deflector | Demander un prix |
|
NA204060000 | 15 | 3 inch castor | Demander un prix |
|
NA207126000 | 16 | Mesh filter | Demander un prix |
