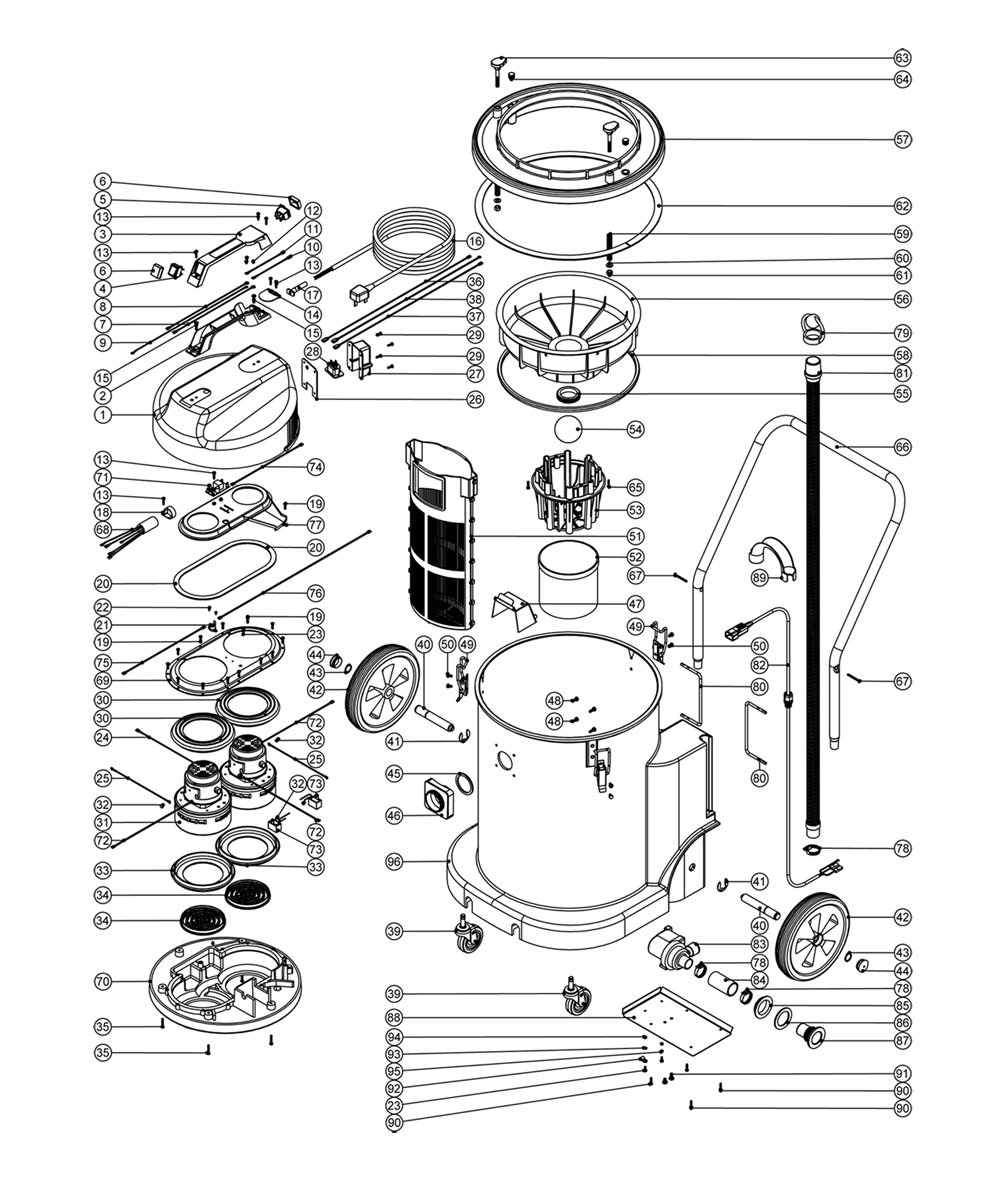

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA301092000 | 1 | Processed head top | Demander un prix |
|
NA320007000 | 2 | Handle moulding | Demander un prix |
|
NA206212000 | 3 | Handle cover Square Hole | Demander un prix |
|
NA220843000 | 4 | Blue rocker switch | Demander un prix |
|
NA220582000 | 5 | Green rocker switch (white print) 0-1 | Demander un prix |
|
NA320003000 | 7 | 200mm long brown link wire | Demander un prix |
|
NA320320000 | 7 | 200mm long brown link wire 110/120v machines (1.5mm wire) | Demander un prix |
|
NA320183000 | 8 | 200mm long blue link wire | Demander un prix |
|
NA320322000 | 8 | 200mm long blue link wire 110/120v machines (1.5mm wire) | Demander un prix |
|
NA320093000 | 9 | 400mm long green/yellow link wire | Demander un prix |
|
NA320090000 | 10 | 100mm long brown link wire | Demander un prix |
|
NA320325000 | 11 | 100mm long blue link wire | Demander un prix |
|
NA219090000 | 12 | M4 x 8mm long pozi pan sems screw | Demander un prix |
|
NA219107000 | 13 | No6 x 5/8 inch long pozi pan plastite screw | Demander un prix |
|
NA220131000 | 14 | Cable clamp | Demander un prix |
|
NA219546000 | 15 | M5 x 20mm long pozi pan sems screw | Demander un prix |
|
NA220059000 | 16 | Mains cable (3 wire / no plug) 230v machines | Demander un prix |
|
NA220253000 | 16 | Mains cable (3 wire / continental plug) | Demander un prix |
|
NA220094000 | 16 | Mains cable (3 wire / no plug) 110/120v machines | Demander un prix |
|
NA220541000 | 17 | Stress relief sleeve 110/120v machines | Demander un prix |
|
NA220288000 | 18 | 30mm diameter p-clip | Demander un prix |
|
NA021937000 | 19 | No8 X 5/8 INCH LONG PLASTITE STAINLESS STEEL SCREW | Demander un prix |
|
NA202012000 | 20 | Gasket | Demander un prix |
|
NA220532000 | 21 | Thermostat | Demander un prix |
|
NA220659000 | 21 | Thermostat 120v csa spec machines | Demander un prix |
|
NA219491000 | 22 | M5 x 3mm long pozi pan taptite screw | Demander un prix |
|
NA219471000 | 23 | M4 x 12mm long pozi pan sems screw | Demander un prix |
|
NA320286000 | 24 | 240mm long white link wire | Demander un prix |
|
NA320092000 | 25 | 180mm long green/yellow link wire | Demander un prix |
|
NA202082000 | 26 | Socket cover gasket | Demander un prix |
|
NA206511000 | 27 | Socket cover | Demander un prix |
|
NA229018000 | 28 | Power take off socket | Demander un prix |
|
NA219569000 | 29 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
|
NA202003000 | 30 | Top motor gasket | Demander un prix |
|
NA305424000 | 31 | 220V 2 STAGE BP MOTOR | Demander un prix |
