Autorécureuse à batteries TGB 2120 20" #NA906727000

Liste de pièces pour:

Autorécureuse à batteries TGB 2120 20"
#NA906727000


TGB 2120 est une autorécureuse compacte et efficace. Il a une largeur de travail de 20" et fonctionne avec des batteries au gel.

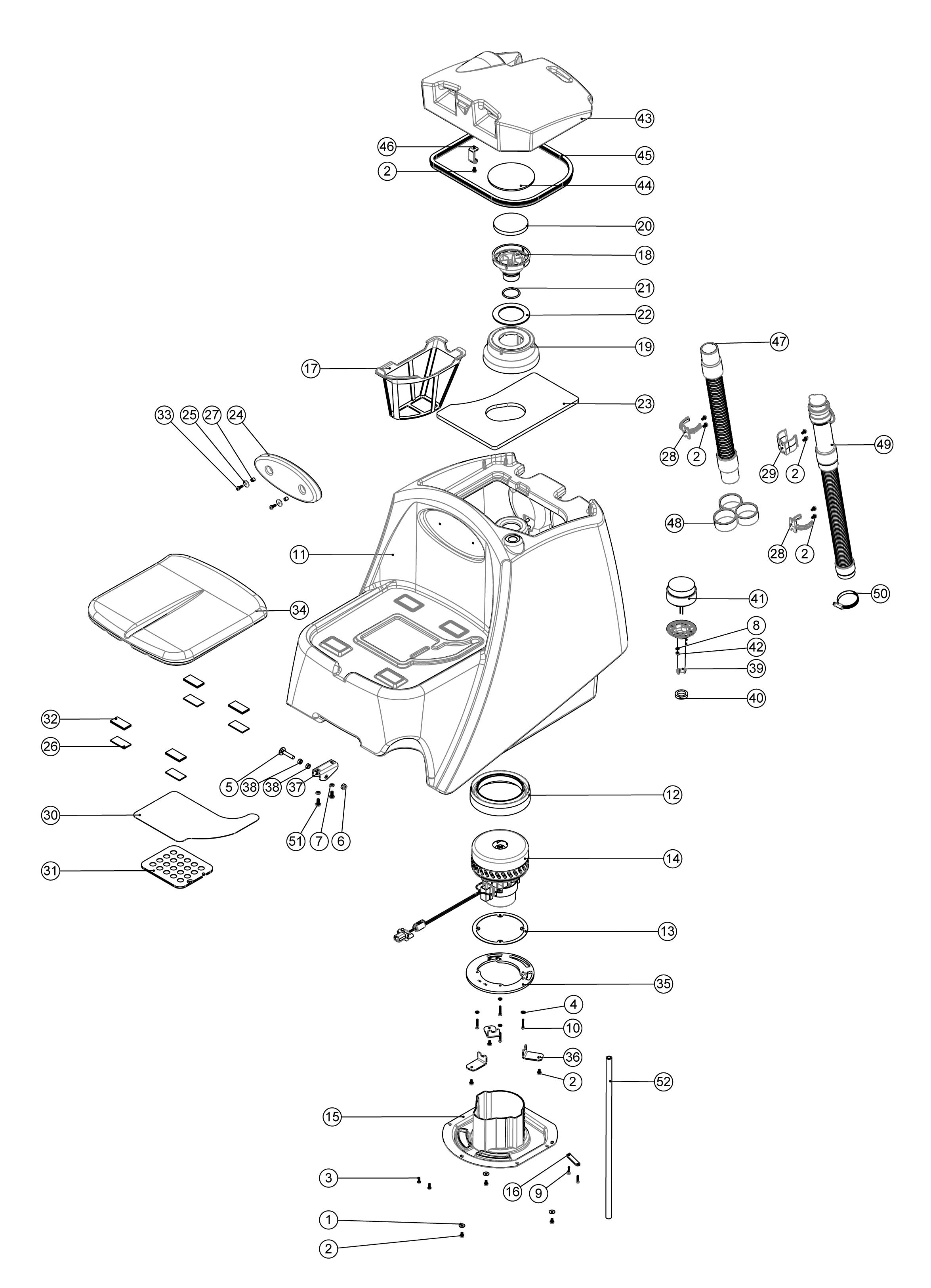

Schéma de pièces
Assemblage du réservoir supérieur - TGB 2120 20" CRG8055 et CRG8072 05/01/2018
Image SKU# Étiquette schéma Description Demander un prix
NA219644000 1 M5 form g stainless steel washer Demander un prix
NA291135000 2 M5 x 10mm long stainless steel pozi pan sems screw Demander un prix
NA219569000 3 No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite Demander un prix
NA219355000 4 M5 form a stainless steel washer Demander un prix
NA291120000 5 M8 x 40 carriage bolt s/s Demander un prix
NA219639000 6 M8 stainless steel nylon insert nut Demander un prix
NA219870000 7 M6 form a washer stainless steel Demander un prix
NA219688000 8 M4 form a stainless steel washer Demander un prix
NA219568000 9 No8 x 3/4 inch long pozi pan stainless steel screw Demander un prix
NA219369000 10 No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW Demander un prix
NA903722000 11 Mini ride on top tank graphite Demander un prix
NA202069000 12 Bottom motor gasket Demander un prix
NA202139000 13 Motor gasket Demander un prix
NA323258000 14 Vac motor 24v with plug and ferrite Demander un prix
NA237620000 15 Exhaust diverter moulding Demander un prix
NA392496000 16 Wire retainer Demander un prix
NA906070000 17 Grit filter basket (red) Demander un prix
NA237618000 18 Air filter moulding Demander un prix
NA237619000 19 Vac shut off moulding Demander un prix
NA208861000 20 Air filter Demander un prix
NA208860000 21 O ring 39mm id x 3.5mm dia. Demander un prix
NA208858000 22 Lower sealing ring Demander un prix
NA208980000 23 Cro foam pad Demander un prix
NA208864000 24 Back pad moulding Demander un prix
NA291118000 25 M5 stainless steel washer 19mm od Demander un prix
NA208865000 26 Velcro loop 50 x 25 self adhesive backed Demander un prix
NA208475000 27 8mm spacer Demander un prix
NA237754000 28 35-38mm hose clip Demander un prix
NA237382000 29 Acetal hose clip moulding Demander un prix
NA208983000 30 Seat switch flexible membrane Demander un prix
NA323290000 31 Pressure pad Demander un prix
NA280003000 32 50mm x 25mm back to back (hook & loop) Demander un prix
NA291132000 33 M5 x 16mm long stainless steel pozi pan sems screw Demander un prix
NA208862000 34 Seat moulding Demander un prix
NA906638000 35 Cro motor mount plate Demander un prix
NA906637000 36 Cro vac motor support bracket Demander un prix
NA392455000 37 Gas strut bracket - carriage bolt Demander un prix
NA291121000 38 Nylon spacer i/d 8.2mm x o/d 12mm x 5mm lg Demander un prix
NA237681000 39 Beacon mount Demander un prix
NA208984000 40 32mm o/d x 22mm i/d x 7mm self adhesive gasket Demander un prix
NA208867000 41 Flashing xenon beacon x80 series Demander un prix
NA219687000 42 M4 stainless steel nylon insert nut Demander un prix
NA903725000 43 Mini ride on separator graphite Demander un prix
NA208899000 44 Upper sealing disc Demander un prix
NA304503000 45 1045mm long sealing strip Demander un prix
NA330200000 46 Cro separator bracket assy Demander un prix
NA021306100 47 Suction hose 1330mm x ø38mm Demander un prix
NA237718000 48 Hose guide Demander un prix
NA902468000 49 35mm x 180mm stretch hose (3:1) c/w adjustable cuff + cap Demander un prix
NA219919000 50 32mm-50mm stainless steel hose clip Demander un prix
NA219646000 51 M6 x 16mm long pozi pan stainless steel screw traction machines only Demander un prix
