| Image |
SKU# |

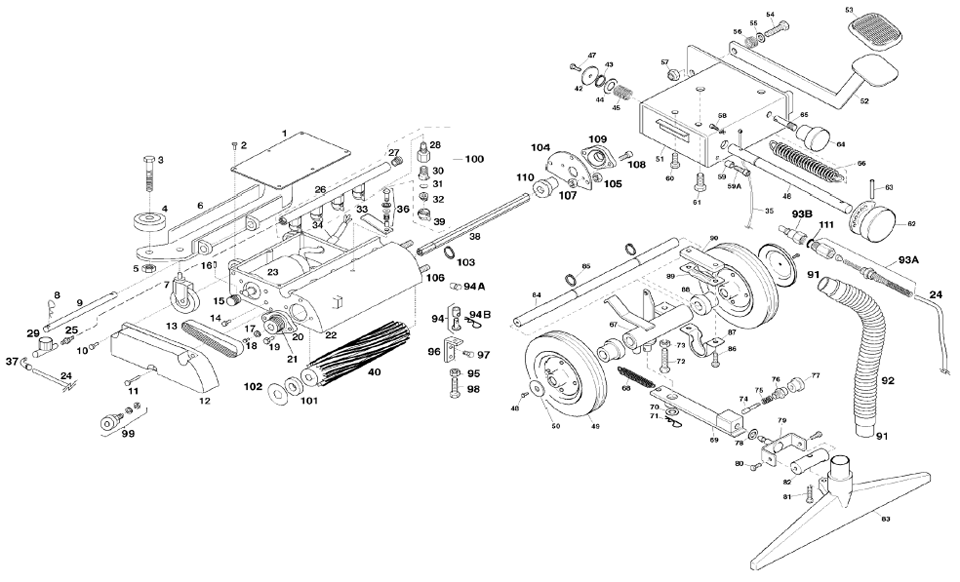

Étiquette schéma |
Description |
Demander un prix |
|
NA154250000
|
1 |
Sliding block cover |
Demander un prix
|
|
NA155380000
|
2 |
Screw tc+ 3,9 x 13 |
Demander un prix
|
|
NA155670000
|
3 |
Screw 8x40 |
Demander un prix
|
|
NA15426N000
|
4 |
Wheel |
Demander un prix
|
|
NA155680000
|
5 |
Nut diam. 8 |
Demander un prix
|
|
NA151151000
|
7 |
Front wheel |
Demander un prix
|
|
NA155690000
|
8 |
Copper pin d.2 |
Demander un prix
|
|
NA154280000
|
9 |
Shaft d.10 |
Demander un prix
|
|
NA155510000
|
10 |
SCREW TC+ 4x16 INOX |
Demander un prix
|
|
NA153201000
|
|
O-ring |
Demander un prix
|
|
|
NA155510000
|
11 |
SCREW TC+ 4x16 INOX |
Demander un prix
|
|
|
NA153201000
|
|
O-ring |
Demander un prix
|
|
NA15429N000
|
12 |
Carpet for powerful |
Demander un prix
|
|
NA151863000
|
|
Gasket for carter |
Demander un prix
|
|
NA154300000
|
13 |
Brush belt |
Demander un prix
|
|
NA155720000
|
14 |
Screw 5x16 |
Demander un prix
|
|
NA154310000
|
15 |
Pulley |
Demander un prix
|
|
NA155730000
|
16 |
Stop dowel |
Demander un prix
|
|
NA155172000
|
17 |
Washer 5x20 inox |
Demander un prix
|
|
NA15575I000
|
18 |
Screw te 5x12 inox |
Demander un prix
|
|
NA155740000
|
19 |
SCREW – 6x14 |
Demander un prix
|
|
NA155760000
|
|
Screw 10x16 (until s/n. 34039) |
Demander un prix
|
|
NA154320100
|
20 |
Stainless steel bearing with support – diam .17 mm (from s/n. 34040)pour AVB 4X |
Demander un prix
|
|
NA154321000
|
|
Stainless steel bearing with support – diam.20 (until s/n. 34039) |
Demander un prix
|
|
NA15433N000
|
21 |
Pulley for brush |
Demander un prix
|
|
NA154330000
|
|
Brush pulley – (until s/n 34039) |
Demander un prix
|
|
NA15434N000
|
22 |
Sliding block – new type (from s/n. 34040) |
Demander un prix
|
|
NA154340000
|
|
Sliding block – old type (until s/n 34039) |
Demander un prix
|
|
NA154350000
|
23 |
Brush motor 220-240v |
Demander un prix
|
|
NA154550000
|
23 |
Brush motor 120v |
Demander un prix
|
|
NA15759C000
|
24 |
Water pipe |
Demander un prix
|
|
NA157660000
|
25 |
Nipple 3/8”–1/8” |
Demander un prix
|
|
NA157570000
|
26 |
Manifold |
Demander un prix
|
|
NA155652000
|
|
Centre plate for manifold |
Demander un prix
|
|
NA157580000
|
27 |
Cap a7 3/8 with o-ring |
Demander un prix
|
|
NA156170000
|
29 |
Water-flow regulation valve |
Demander un prix
|
|
NA153286000
|
30 |
Quick disconnect nozzle support |
Demander un prix
|
|
NA153209000
|
31 |
O-ring |
Demander un prix
|
|
NA157050100
|
32 |
Brass nozzle 01/110 |
Demander un prix
|
|
NA155650000
|
33 |
Locking plate |
Demander un prix
|
|
NA152370000
|
34 |
Fairlead |
Demander un prix
|
|
|
NA154361000
|
35 |
Steel wire |
Demander un prix
|
|
NA154610000
|
36 |
Spring |
Demander un prix
|
|
|
NA155172000
|
|
Washer 5x20 inox |
Demander un prix
|
|
NA155460000
|
|
Screw 5x25 |
Demander un prix
|
|
NA155651000
|
|
Thimble for manifold locking plate |
Demander un prix
|
|
NA156050000
|
37 |
Elbow for 6/8 pipe |
Demander un prix
|
|
NA154370000
|
38 |
Shaft for brush |
Demander un prix
|
|
NA157180000
|
39 |
Nut for nozzle |
Demander un prix
|
|
NA153690000
|
40 |
Brush |
Demander un prix
|
|
NA155173000
|
42 |
Washer 5x32 |
Demander un prix
|
|
NA155780000
|
43 |
Snap ring |
Demander un prix
|
|
NA155800000
|
44 |
Brass washer 15,2x27x1 |
Demander un prix
|
|
|
NA154610000
|
45 |
Spring |
Demander un prix
|
|
NA154391000
|
46 |
Shaft |
Demander un prix
|
|
|
NA155720000
|
47 |
Screw 5x16 |
Demander un prix
|
|
NA155820000
|
48 |
Stainless steel screw 6x14 |
Demander un prix
|
|
NA154220000
|
49 |
Wheel |
Demander un prix
|
|
NA155632000
|
50 |
Washer 6x30x2 zn |
Demander un prix
|
|
NA154660000
|
51 |
Metal housing |
Demander un prix
|
|
NA154670000
|
52 |
Pedal |
Demander un prix
|
|
NA154671000
|
53 |
Rubber cover for pedal |
Demander un prix
|
|
NA155790000
|
54 |
Screw 10x40 |
Demander un prix
|
|
NA155401000
|
55 |
Washer 10x30 |
Demander un prix
|
|
NA154712000
|
56 |
Spring |
Demander un prix
|
|
NA15526A000
|
57 |
Locking nut d.10 |
Demander un prix
|
|
NA155841000
|
58 |
Lock screw |
Demander un prix
|
|
NA155631000
|
|
Washer diam. 6x12 |
Demander un prix
|
|
NA155871000
|
59 |
Spacer |
Demander un prix
|
|
NA155500000
|
59A |
Screw 6x20 |
Demander un prix
|
|
|
NA155760000
|
60 |
Screw 10x16 (until s/n. 34039) |
Demander un prix
|
|
NA155830000
|
61 |
Screw 8x20 |
Demander un prix
|
|
NA154560000
|
62 |
Knob |
Demander un prix
|
|
NA155880000
|
63 |
Elastic pin |
Demander un prix
|
|
NA154713000
|
64 |
Pressure regulation knob |
Demander un prix
|
|
NA154716000
|
65 |
Rod for knob |
Demander un prix
|
|
NA154711000
|
66 |
Spring for vacuum pressure |
Demander un prix
|
|
NA154680000
|
67 |
Cilinder, complete with brackets |
Demander un prix
|
|
NA154710000
|
68 |
Spring |
Demander un prix
|
|
NA154690000
|
69 |
Support for vacuum head |
Demander un prix
|
|
|
NA155800000
|
70 |
Brass washer 15,2x27x1 |
Demander un prix
|
|
|
NA155690000
|
71 |
Copper pin d.2 |
Demander un prix
|
|
NA155980000
|
72 |
Screw 10x50 |
Demander un prix
|
|
NA15526B000
|
73 |
Nut d.10 h=8 |
Demander un prix
|
|
NA154700C00
|
74 |
Complete Pawl |
Demander un prix
|
|
|
NA154700C00
|
75 |
Complete Pawl |
Demander un prix
|
|
|
NA154700C00
|
76 |
Complete Pawl |
Demander un prix
|
|
|
NA154700C00
|
77 |
Complete Pawl |
Demander un prix
|
|
NA154700000
|
|
Complete pawl (items 74 - 77) |
Demander un prix
|
|
NA150000000
|
|
+ Metal couplings |
Demander un prix
|
|
|
NA155800000
|
78 |
Brass washer 15,2x27x1 |
Demander un prix
|
|
NA154714000
|
79 |
Support for vacuum head |
Demander un prix
|
|
|
NA155830000
|
80 |
Screw 8x20 |
Demander un prix
|
|
|
NA155790000
|
81 |
Screw 10x40 |
Demander un prix
|
|
NA154715000
|
82 |
Support for vac.head orientation |
Demander un prix
|
|
NA15449C000
|
83 |
Vacuum head with hose d. 38 |
Demander un prix
|
|
NA15449CELI
|
|
Vacuum head with hose d.38 and support (items 79,80,81,82,83) |
Demander un prix
|
|
NA154181000
|
84 |
Shaft for wheels |
Demander un prix
|
|
NA155782000
|
85 |
Snap ring diam. 20 |
Demander un prix
|
|
|
NA155830000
|
86 |
Screw 8x20 |
Demander un prix
|
|
NA154270000
|
90 |
Distance plate for wheels |
Demander un prix
|
|
NA15370C000
|
92 |
Vacuum hose with cuffs |
Demander un prix
|
|
NA156181ANT
|
93A |
Complete coupling m. 1/4” for 6/8 pipe, with antidrop (codex 6181+6071+111+7432) |
Demander un prix
|
|
|
NA150000000
|
|
+ Metal couplings |
Demander un prix
|
|
NA156181000
|
|
Coupling m. 1/4” for 6/8 pipe, with spring |
Demander un prix
|
|
NA156071000
|
|
Spring for antidrop |
Demander un prix
|
|
NA151110000
|
|
Rubber pin |
Demander un prix
|
|
NA157432000
|
|
Coupling for antidrop, att. M. 1/4” |
Demander un prix
|
|
NA15689PE00
|
93B |
Quick disconnect male – att. F-1/4” – metal |
Demander un prix
|
|
NA157270000
|
|
Male quick disconn. Coupl, att. F. ¼” (plastic) |
Demander un prix
|
|
NA155083000
|
94 |
External support |
Demander un prix
|
|
NA155084000
|
|
Internal pin |
Demander un prix
|
|
NA155081000
|
94A |
Rope lock |
Demander un prix
|
|
|
NA155690000
|
94B |
Copper pin d.2 |
Demander un prix
|
|
|
NA155680000
|
95 |
Nut diam. 8 |
Demander un prix
|
|
NA155080000
|
96 |
Stop plate |
Demander un prix
|
|
NA155091000
|
97 |
Screw tc 6x10 |
Demander un prix
|
|
NA155082000
|
98 |
Screw 8x40 with hole |
Demander un prix
|
|
|
NA155680000
|
99 |
Nut diam. 8 |
Demander un prix
|
|
NA155210800
|
|
Locking washer – diam.8 |
Demander un prix
|
|
NA154310100
|
|
Belt stretcher shaft |
Demander un prix
|
|
NA155780800
|
|
Seeger |
Demander un prix
|
|
|
NA153209000
|
|
O-ring |
Demander un prix
|
|
|
NA154310000
|
|
Pulley |
Demander un prix
|
|
|
NA157572N00
|
100 |
Manifold with nozzles+cap+nipple (items 25,26,27,28,30,31,32,39) |
Demander un prix
|
|
|
NA150000000
|
|
+ Metal couplings |
Demander un prix
|
|
NA154322000
|
101 |
Silicon gasket d.45x10 |
Demander un prix
|
|
NA154323100
|
102 |
Mailar disc d48 es12 sp.0.5 |
Demander un prix
|
|
NA155781300
|
103 |
Snap ring diam.13 for shaft |
Demander un prix
|
|
NA154324000
|
104 |
Bearing support plate |
Demander un prix
|
|
NA15562A000
|
105 |
Locking nut – diam. 6 |
Demander un prix
|
|
NA155741000
|
106 |
Screw tc brugola 6x16 zn |
Demander un prix
|
|
NA155230600
|
107 |
Nut d.6 (3mm) |
Demander un prix
|
|
|
NA155740000
|
108 |
SCREW – 6x14 |
Demander un prix
|
|
NA154381000
|
110 |
Counter pulley d.17 |
Demander un prix
|
|
|
NA153209000
|
111 |
O-ring |
Demander un prix
|
