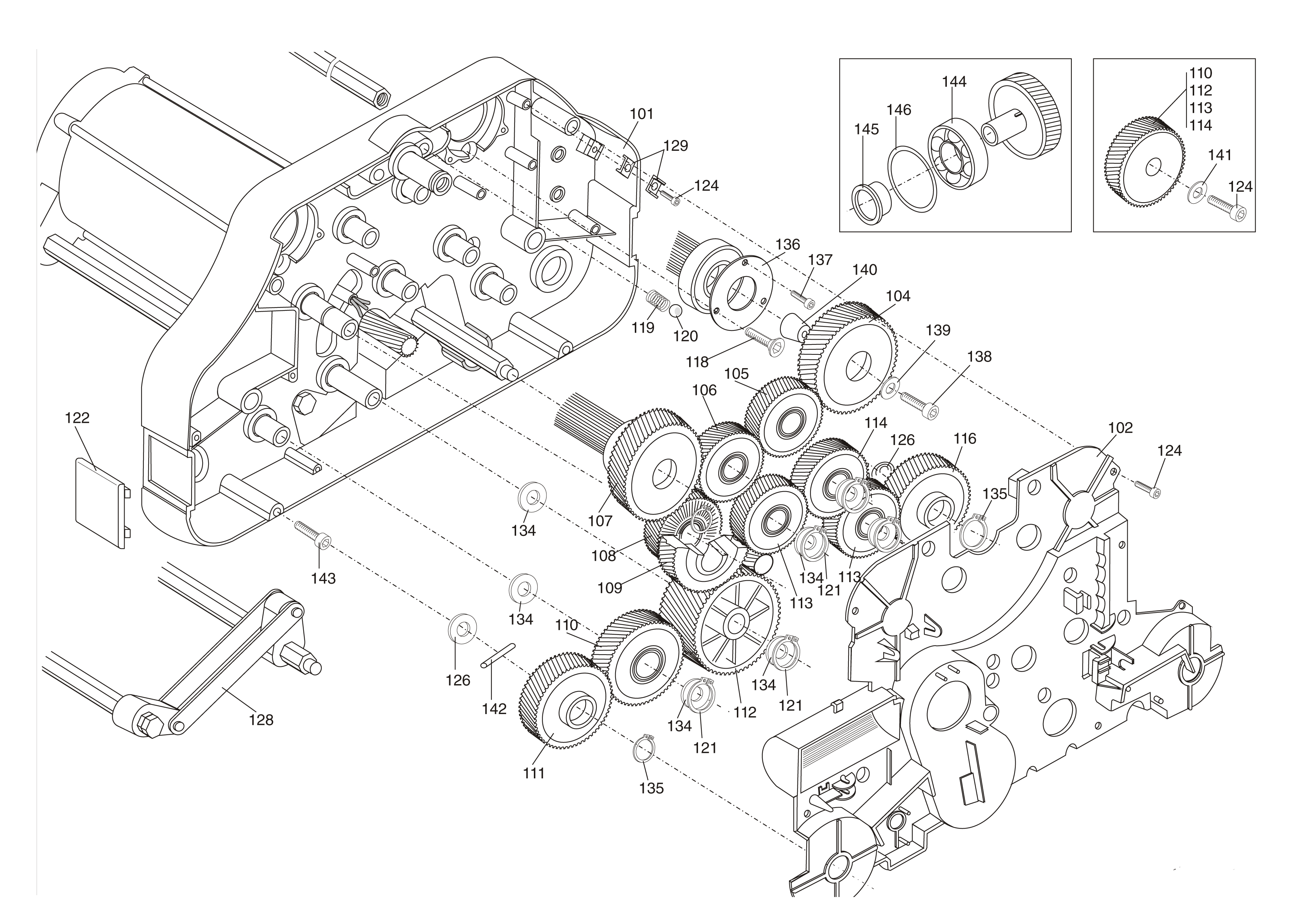

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA130520000 | 102 | Kit inside sump black | Demander un prix |
|
NA130501000 | 102 | Inside sump black | Demander un prix |
|
NA609020000 | 104 | Gear right h.s. (metal motor cylinder) | Demander un prix |
|
NA503020000 | 105 | Gear c/w brass insert | Demander un prix |
|
NA544020000 | 105 | Gear w/b.bearing | Demander un prix |
|
NA644020000 | 106 | Gear w/b.bearing | Demander un prix |
|
NA509020000 | 107 | Gear left h.s. (metal motor cylinder) | Demander un prix |
|
NA501020000 | 108 | Housing | Demander un prix |
|
NA546020000 | 108 | Gear with low clutch c/w bearing | Demander un prix |
|
NA601020000 | 109 | Gear (high clutch) | Demander un prix |
|
NA650020000 | 110 | Gear w/b.bearing | Demander un prix |
|
NA065002000 | 110 | Gear | Demander un prix |
|
NA542020000 | 111 | Gear left h.brush ( new series ) | Demander un prix |
|
NA580020000 | 112 | Gear with no. 2 bearings | Demander un prix |
|
NA504020000 | 112 | Gear | Demander un prix |
|
NA570020000 | 113 | Gear w/b.bearing | Demander un prix |
|
NA057002000 | 113 | Gear with bearings | Demander un prix |
|
NA640020000 | 114 | Gear w/b.bearing | Demander un prix |
|
NA606020000 | 114 | Gear | Demander un prix |
|
NA642020000 | 116 | Gear right h.s.brush ( new series ) | Demander un prix |
|
NA111201000 | 118 | Sockel head screw tpsce 8 x 16 (bitt) | Demander un prix |
|
NA100200000 | 119 | Spring latch spring | Demander un prix |
|
NA312000000 | 120 | Spring latch ball | Demander un prix |
|
NA113200000 | 121 | Seeger d.14 | Demander un prix |
|
NA131100000 | 122 | Elbow for grace floater | Demander un prix |
|
NA110400000 | 124 | Screw t.t. 5 x 10 | Demander un prix |
|
NA112700000 | 126 | Flat washer | Demander un prix |
|
NA180801000 | 128 | Wheel lever | Demander un prix |
|
NA135020000 | 128 | Mounted shaft with wheel lever | Demander un prix |
|
NA113901000 | 129 | Terminal contact | Demander un prix |
|
NA112000000 | 134 | Washer for gear | Demander un prix |
|
NA113400000 | 135 | Seeger d.20 | Demander un prix |
|
NA206000000 | 136 | Washer pushing bearing | Demander un prix |
|
NA110100000 | 137 | Screw tc 3 x 6 | Demander un prix |
|
NA111000000 | 138 | Sockel head screw tcce 4x40 | Demander un prix |
|
NA114400000 | 139 | Washer for gear | Demander un prix |
|
NA114500000 | 140 | Tapered screw nut/brass | Demander un prix |
|
NA115100000 | 141 | Wheel | Demander un prix |
|
NA113700000 | 142 | Cylindrical plug 6 x 30 | Demander un prix |
|
NA110901000 | 143 | Sockel head screw tcce 6 x 16 | Demander un prix |
|
NA319500000 | 144 | Bearing motor cyl stainless steel | Demander un prix |
|
NA043500000 | 145 | Plastic bush for s.steel bearing | Demander un prix |
|
NA043600000 | 146 | Rubber washer s.steel bearing | Demander un prix |
