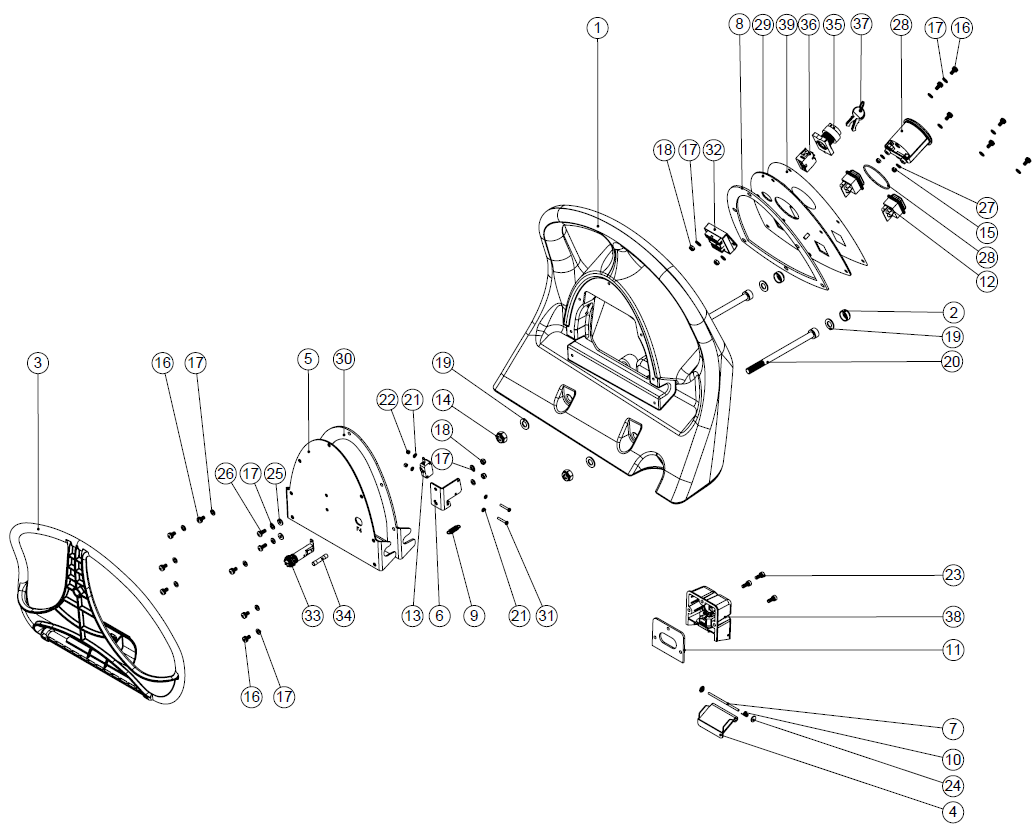

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA237113000 | 1 | Handle moulding | Demander un prix |
|
NA237632000 | 2 | Shoulder bolt cover | Demander un prix |
|
NA902325000 | 3 | Red handle trigger moulding | Demander un prix |
|
NA227781000 | 4 | Flap moulding | Demander un prix |
|
NA902263000 | 5 | Handle back plate etb6055 painted silver | Demander un prix |
|
NA902251000 | 6 | Handle micro switch bracket painted silver | Demander un prix |
|
NA390979000 | 7 | 72mm long x 3mm diameter stainless steel bar | Demander un prix |
|
NA208336000 | 8 | Control panel punched gasket | Demander un prix |
|
NA208356000 | 9 | Trigger spring | Demander un prix |
|
NA219819000 | 10 | Torsion spring | Demander un prix |
|
NA202105000 | 11 | Socket cover sealing gasket | Demander un prix |
|
NA902235000 | 12 | Switch dpst red illuminated with membrane 24v | Demander un prix |
|
NA208391000 | 13 | Snap action switch | Demander un prix |
|
NA219897000 | 14 | M10 stainless steel nylon insert nut | Demander un prix |
|
NA291135000 | 16 | M5 x 10mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA219355000 | 17 | M5 form a stainless steel washer | Demander un prix |
|
NA219633000 | 18 | M5 stainless steel nylon insert nut | Demander un prix |
|
NA219903000 | 19 | M10 form a stainless steel washer | Demander un prix |
|
NA902351000 | 20 | M10 x 150mm long socket cap screw stainless steel | Demander un prix |
|
NA219501000 | 21 | M3 form a stainless steel washer | Demander un prix |
|
NA291154000 | 22 | M3 nylon insert nut stainless steel | Demander un prix |
|
NA291007000 | 23 | M5 x 12mm long stainless steel socket cap screw | Demander un prix |
|
NA219832000 | 24 | 3mm diameter starlock | Demander un prix |
|
NA219462000 | 25 | Rubber washer | Demander un prix |
|
NA219740000 | 26 | M5 x 12mm long stainless steel pozi pan screw | Demander un prix |
|
NA219688000 | 27 | M4 form a stainless steel washer | Demander un prix |
|
NA902532000 | 28 | Battery discharge indicator + hour meter 24v o-ring included | Demander un prix |
|
NA903053000 | 29 | Tgb6055 control panel assembly painted silver | Demander un prix |
|
NA903062000 | 30 | Handle back plate gasket | Demander un prix |
|
NA291155000 | 31 | M3 x 20mm long pozi pan screw stainless steel | Demander un prix |
|
NA903031000 | 32 | Terminal block assembly | Demander un prix |
|
NA903032000 | 33 | Bulgin panel mount fuseholder | Demander un prix |
|
NA903066000 | 34 | FUSE 2.5A (6.3x32) | Demander un prix |
|
NA208138000 | 35 | Key switch (2 position) | Demander un prix |
|
NA208137000 | 36 | Key switch actuator block | Demander un prix |
|
NA208167000 | 37 | Spare set of keys (2 keys) spare item | Demander un prix |
|
NA904030000 | 38 | 240v emi filter with socket cover assembly (processed) 240v version | Demander un prix |
|
NA904765000 | 39 | Tgb6055 (tgb1620) control panel overlay | Demander un prix |
