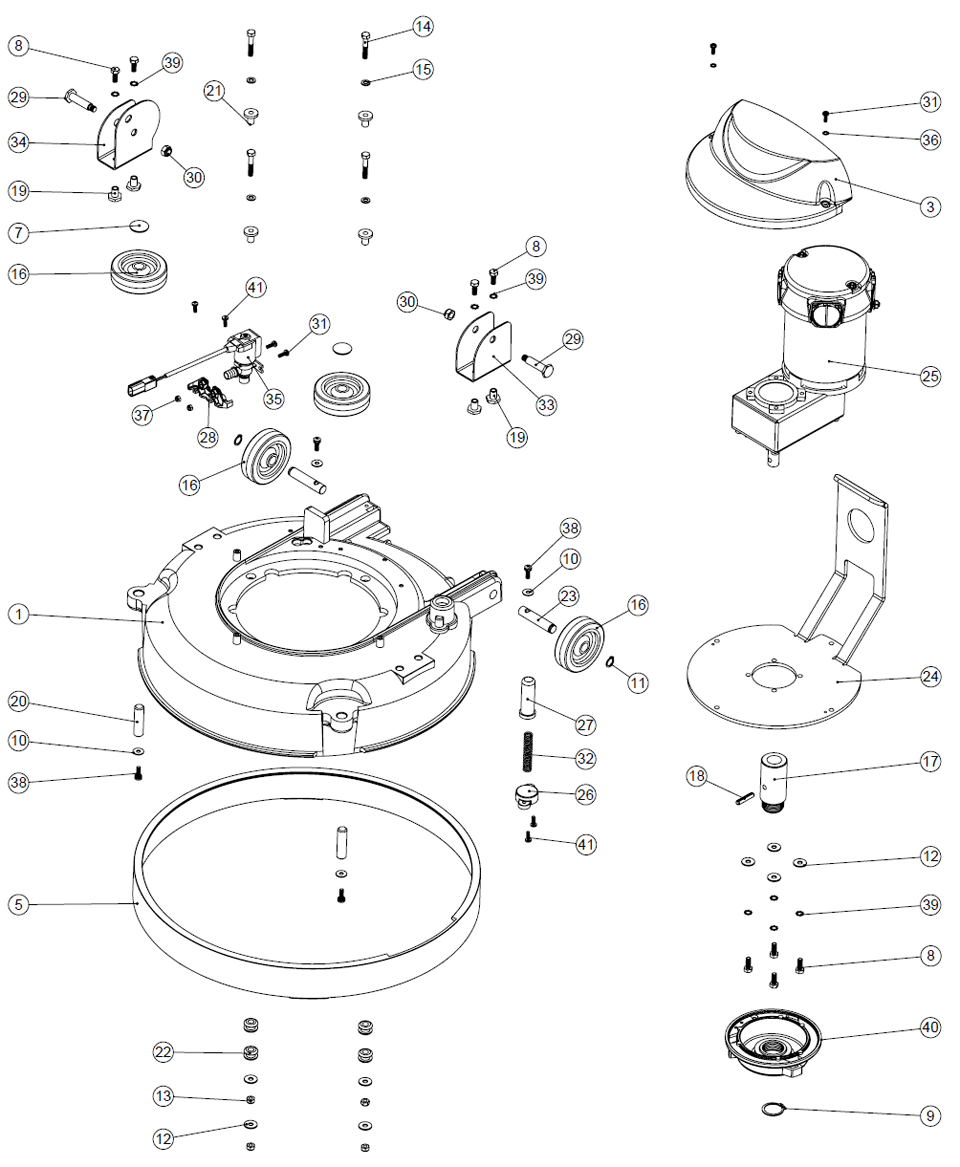

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA329392000 | 1 | Deck assembly | Demander un prix |
|
NA904896000 | 1 | Hgb3045 red base moulding (spares use 905414) hgb | Demander un prix |
|
NA237380000 | 3 | Amer motor cover | Demander un prix |
|
NA904897000 | 3 | Amer motor cover (black) hgb | Demander un prix |
|
NA229644000 | 5 | 450mm diameter splash skirt moulding | Demander un prix |
|
NA904898000 | 5 | 450mm diameter splash skirt moulding (black) hgb | Demander un prix |
|
NA204021000 | 7 | 12.7mm stainless steel hub cap | Demander un prix |
|
NA219719000 | 8 | M6 x 16mm long hexagonal stainless steel head bolt | Demander un prix |
|
NA230048000 | 9 | 26mm external circlip | Demander un prix |
|
NA219644000 | 10 | M5 form g stainless steel washer | Demander un prix |
|
NA219345000 | 11 | 12mm external circlip | Demander un prix |
|
NA219647000 | 12 | M6 form g stainless steel washer | Demander un prix |
|
NA219642000 | 13 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA291127000 | 14 | M6 x 35 long hex bolt stainless steel | Demander un prix |
|
NA219870000 | 15 | M6 form a washer stainless steel | Demander un prix |
|
NA204068000 | 16 | 3 inch grey wheel | Demander un prix |
|
NA208727000 | 17 | Drive shaft | Demander un prix |
|
NA291079000 | 18 | 6mm x 30mm stainless steel roll pin | Demander un prix |
|
NA219606000 | 19 | Bracket spacer | Demander un prix |
|
NA206013000 | 20 | Buffer wheel pin | Demander un prix |
|
NA208011000 | 21 | Motor mounting spacer | Demander un prix |
|
NA229025000 | 22 | Standard grommet | Demander un prix |
|
NA22938200 | 23 | Rear wheel pin | Demander un prix |
|
NA392362000 | 24 | Motor adaptor plate paint silver grey | Demander un prix |
|
NA205245000 | 25 | Amer 100rpm motor 230222 carbon brushes (set) | Demander un prix |
|
NA223242000 | 26 | Plunger mounting plate moulding | Demander un prix |
|
NA229128000 | 27 | Plunger | Demander un prix |
|
NA902556000 | 28 | Solenoid mount moulding | Demander un prix |
|
NA206236000 | 29 | Pivot pin | Demander un prix |
|
NA219639000 | 30 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA219890000 | 31 | M4 x 12mm long pozi pan stainless steel screw | Demander un prix |
|
NA219394000 | 32 | Compression spring | Demander un prix |
|
NA392249000 | 33 | Deck mount rh | Demander un prix |
|
NA392248000 | 34 | Deck mount bracket | Demander un prix |
|
NA902949000 | 35 | Terminated solonoid cable.black.125.0m5.2.24 | Demander un prix |
|
NA291145000 | 36 | M4 shakeproof washer stainless steel | Demander un prix |
|
NA219687000 | 37 | M4 stainless steel nylon insert nut | Demander un prix |
|
NA291132000 | 38 | M5 x 16mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA902353000 | 39 | M6 external shakeproof washer stainless steel | Demander un prix |
|
NA230285000 | 40 | Modified chuck (cro) | Demander un prix |
|
NA219569000 | 41 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
