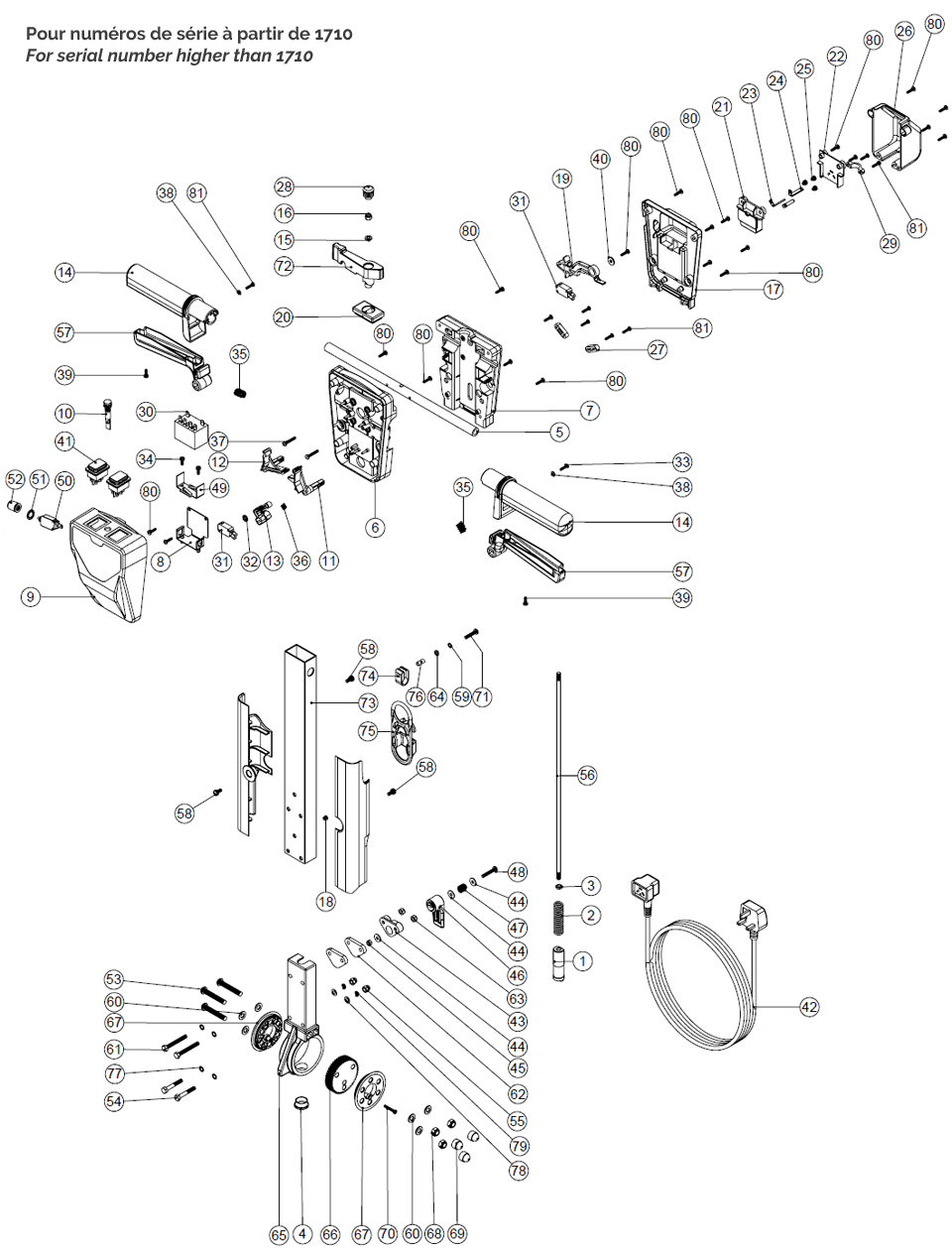

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA229073000 | 1 | Gear locking pin | Demander un prix |
|
NA229138000 | 2 | Spring | Demander un prix |
|
NA219099000 | 3 | M6 half nut | Demander un prix |
|
NA229099000 | 4 | 25mm dia hole plug | Demander un prix |
|
NA338269000 | 5 | Cross tube | Demander un prix |
|
NA227576000 | 6 | Front inner half moulding | Demander un prix |
|
NA229508000 | 6 | Flame retardant front inner half moulding | Demander un prix |
|
NA227577000 | 7 | Rear inner half moulding | Demander un prix |
|
NA329484000 | 7 | Modified rear inner half moulding (csa spec) flame retardant csa spec | Demander un prix |
|
NA303526000 | 8 | Nutserted relay mounting bracket | Demander un prix |
|
NA229748000 | 9 | Front cover moulding (mains & battery) | Demander un prix |
|
NA229750000 | 9 | Mains front cover moulding (c/b hole) 110v/50hz machines | Demander un prix |
|
NA229751000 | 9 | Mains front cover moulding (c/b hole) (flame retardant) 120v/60hz flame retardent machines | Demander un prix |
|
NA220812000 | 10 | 230v neon indicator & red lens | Demander un prix |
|
NA220813000 | 10 | 120v neon indicator & red lens | Demander un prix |
|
NA227585000 | 11 | Left hand switch operating lever moulding | Demander un prix |
|
NA227586000 | 12 | Right hand switch operating lever moulding | Demander un prix |
|
NA227587000 | 13 | Centre switch operating lever moulding | Demander un prix |
|
NA227580000 | 14 | Hand grip moulding | Demander un prix |
|
NA219493000 | 15 | M6 nylon washer | Demander un prix |
|
NA219088000 | 16 | M6 nylon insert nut | Demander un prix |
|
NA227676000 | 17 | Rear cover | Demander un prix |
|
NA229507000 | 17 | Mains type flame retardant rear cover moulding flame retardant csa spec | Demander un prix |
|
NA229009000 | 18 | Blanking plug | Demander un prix |
|
NA227584000 | 19 | Interlock lever moulding | Demander un prix |
|
NA227582000 | 20 | Handle plug moulding | Demander un prix |
|
NA903546000 | 20 | Handle plug moulding (red) | Demander un prix |
|
NA227691000 | 21 | Terminal block | Demander un prix |
|
NA229510000 | 21 | Flame retardant terminal block flame retardant csa spec | Demander un prix |
|
NA227680000 | 22 | Terminal block cover | Demander un prix |
|
NA229511000 | 22 | Flame retardant terminal block cover | Demander un prix |
|
NA206562000 | 23 | Contact pin | Demander un prix |
|
NA206563000 | 24 | Earth contact pin | Demander un prix |
|
NA219090000 | 25 | M4 x 8mm long pozi pan sems screw | Demander un prix |
|
NA227678000 | 26 | Socket cover | Demander un prix |
|
NA229512000 | 26 | Flame retardant inlet cover flame retardant csa spec | Demander un prix |
|
NA227008000 | 27 | Black cable clamp | Demander un prix |
|
NA20638V000 | 28 | 19mm black tube end stop | Demander un prix |
|
NA216290000 | 29 | Cable clamp | Demander un prix |
|
NA206575000 | 30 | 240v / 25a relay | Demander un prix |
|
NA206576000 | 30 | 100v-120v / 25a relay | Demander un prix |
|
NA229483000 | 31 | Snap action switch | Demander un prix |
|
NA219805000 | 32 | 4mm spirefix | Demander un prix |
|
NA219107000 | 33 | No6 x 5/8 inch long pozi pan plastite screw | Demander un prix |
|
NA219471000 | 34 | M4 x 12mm long pozi pan sems screw | Demander un prix |
|
NA219803000 | 35 | Trigger compression spring | Demander un prix |
|
NA219804000 | 36 | Switch compression spring | Demander un prix |
|
NA219811000 | 37 | No8 x 1 inch long pozi-pan self tap screw | Demander un prix |
|
NA219206000 | 38 | M4 form a washer | Demander un prix |
|
NA219270000 | 39 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Demander un prix |
|
NA219005000 | 40 | M5 form g washer | Demander un prix |
|
NA270146000 | 41 | Green illuminated switch + membrane | Demander un prix |
|
NA904042000 | 41 | Switch dpst red illuminated with membrane 120/240v | Demander un prix |
|
NA236012000 | 42 | 20.0m x 1.50mm x 3 core nucable (uk plug) | Demander un prix |
|
NA236132000 | 42 | 20m x 1.5mm x 3 core yellow cable x socket (euro plug) | Demander un prix |
|
NA236020000 | 42 | 20.0m x 1.5mm x 3 core nucable (swiss plug) | Demander un prix |
|
NA236024000 | 42 | 20.0m x 1.50mm x 3 core nucable (south african plug) | Demander un prix |
|
NA236068000 | 42 | 20.0mt x 1.5mm x 3 core cable (16a socket + 10a plug) australian | Demander un prix |
|
NA236118000 | 42 | 20.0M x 1.5MM X 3 CORE NUCABLE (16 AMP INDUSTRIAL PLUG) | Demander un prix |
|
NA236028000 | 42 | 20.0m x 14awg x 3 core yellow nucable (csa plug) | Demander un prix |
|
NA227806000 | 43 | Cable release base moulding | Demander un prix |
|
NA903882000 | 43 | Red cable release base moulding | Demander un prix |
|
NA219644000 | 44 | M5 form g stainless steel washer | Demander un prix |
|
NA219076000 | 45 | M5 nylon insert nut | Demander un prix |
|
NA227807000 | 46 | Cable release top moulding | Demander un prix |
|
NA903883000 | 46 | Red cable release top moulding | Demander un prix |
|
NA206599000 | 47 | Spring (ref:c5514370) | Demander un prix |
|
NA219720000 | 48 | M5 x 30mm long stainless steel pozi pan screw | Demander un prix |
|
NA206500000 | 49 | Relay bracket | Demander un prix |
|
NA220440000 | 50 | 8 amp overload 120v/60hz flame retardent machines | Demander un prix |
|
NA208550000 | 50 | 15 amp overload 110v/50hz machines | Demander un prix |
|
NA219702000 | 51 | M10 internal lock washer 110v & 120v machines | Demander un prix |
|
NA220459000 | 52 | Overload dust cover 110v & 120v machines | Demander un prix |
|
NA219922000 | 53 | M8 x 50mm long socket button head stainless steel bolt | Demander un prix |
|
NA291125000 | 54 | M6 x 40 long hex bolt stainless steel | Demander un prix |
|
NA219764000 | 55 | M6 stainless steel dome nut | Demander un prix |
|
NA229461000 | 56 | 440mm handle locking rod | Demander un prix |
|
NA227581000 | 57 | Trigger moulding | Demander un prix |
|
NA903547000 | 57 | Trigger moulding (red) | Demander un prix |
|
NA291131000 | 58 | M5 x 12mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA291084000 | 59 | Washer.m5.shakeproof.stainless steel | Demander un prix |
|
NA219578000 | 60 | M8 form a stainless steel washer | Demander un prix |
|
NA291128000 | 61 | M6 x 50 long hex bolt stainless steel | Demander un prix |
|
NA392437000 | 62 | Retainer spacer | Demander un prix |
|
NA219642000 | 63 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219355000 | 64 | M5 form a stainless steel washer | Demander un prix |
|
NA900398000 | 65 | Handle casting machined (hns version) | Demander un prix |
|
NA900397000 | 66 | Mini adjustment gear | Demander un prix |
|
NA900396000 | 67 | Adjustment gear spacer | Demander un prix |
|
NA219639000 | 68 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA903260000 | 69 | Bolt and nut cap | Demander un prix |
|
NA291150000 | 70 | No6 x 1 inch long pozi pan screw s/s | Demander un prix |
|
NA219575000 | 71 | M5 x 25mm long pozi pan stainless steel screw | Demander un prix |
|
NA227583000 | 72 | Adjustment lever moulding | Demander un prix |
|
NA903545000 | 72 | Adjustment lever moulding (red) | Demander un prix |
|
NA903603000 | 73 | Tgb/ttg 430mm processed ali handle paint silver | Demander un prix |
|
NA219743000 | 74 | Cable cleat | Demander un prix |
|
NA902312000 | 75 | Cable stress relief | Demander un prix |
|
NA903192000 | 76 | SPIROL SPACER SP100 5MM NOM ID x 14MM | Demander un prix |
|
NA219544000 | 77 | M6 shakeproof washer | Demander un prix |
|
NA219560000 | 78 | M6 form b stainless steel washer | Demander un prix |
|
NA219718000 | 79 | Washer.m6.spring.stainless steel | Demander un prix |
|
NA021937000 | 80 | No8 X 5/8 INCH LONG PLASTITE STAINLESS STEEL SCREW | Demander un prix |
|
NA219914000 | 81 | No6.5/8 inch lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
|
NA237692000 | 82 | Handle cable cover l/h | Demander un prix |
|
NA237693000 | 83 | Handle cable cover r/h | Demander un prix |
