Autoscrubber 26" to 34" TTV 678 #NA904433000

Spare Parts for:

Autoscrubber 26" to 34" TTV 678
#NA904433000


Versatile autoscrubber 26", 30", or 34" of working width withlithium batteries, adjustable discs pressure, high suction performance and integrated charger
Parts Schema

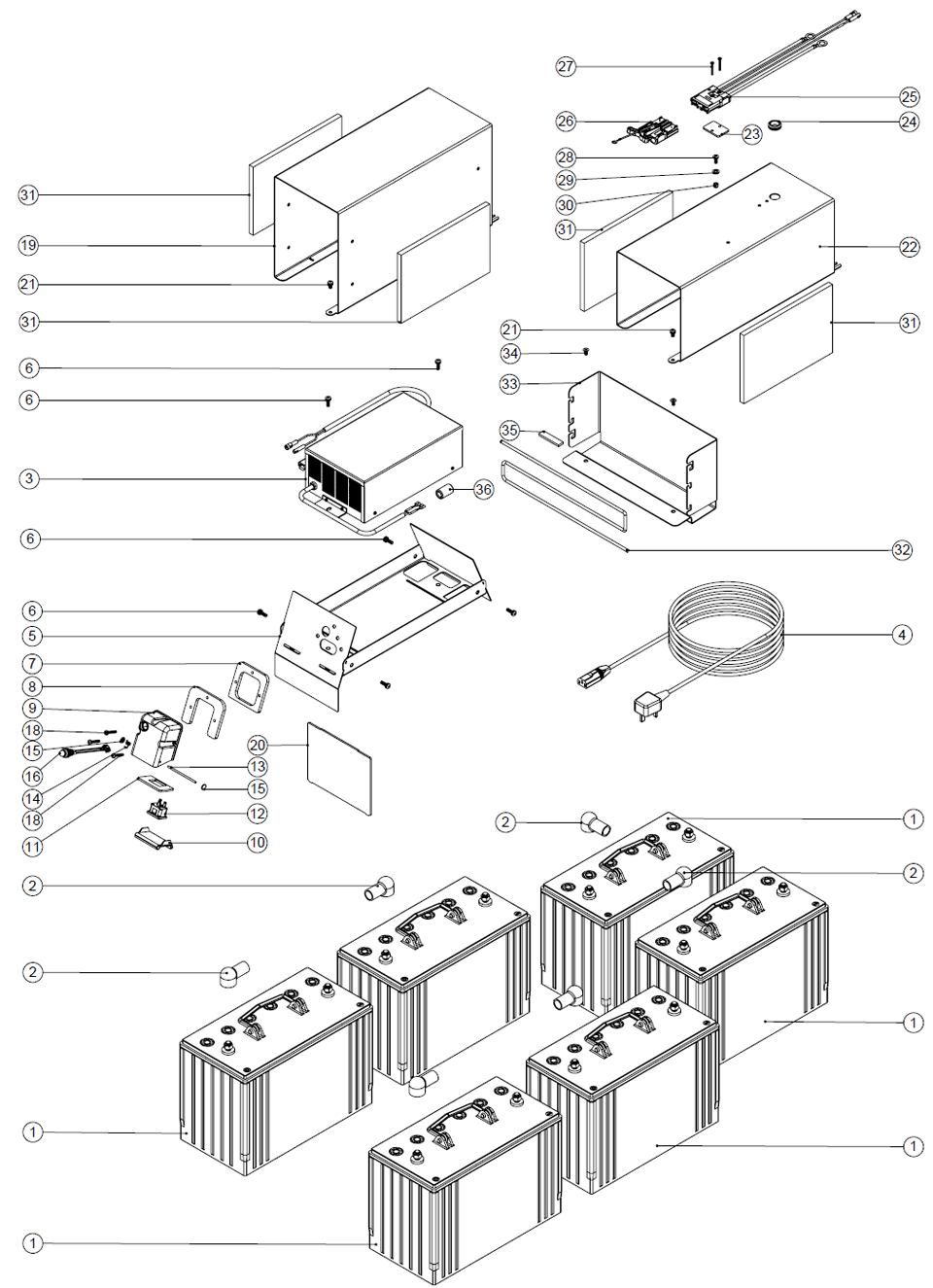

Charger & Battery Assembly (1413) Serial Numbers 1413 and higher
Image SKU# Label on drawing Description Ask for a price
NA205112000 1 100 amp/hour replacement battery (c/w packaging for 230138 battery) 100ah version Ask for a price
NA206861000 2 Red pvc terminal cap Ask for a price
NA330194000 3 220-240v mentzer 35 amp charger c/w ferrite Ask for a price
NA230187000 110-120v mentzer 30 amp charger (no lights version) Ask for a price
NA220386000 4 Uk type charging lead Ask for a price
NA220389000 Usa type charging lead Ask for a price
NA404190000 5 Nutserted top charger tray weld assembly painted silver grey Ask for a price
NA219045000 6 M5 x 16mm long pozi pan sems screw Ask for a price
NA329595000 7 Top socket plate Ask for a price
NA392354000 8 Iec connector box spacer plate Ask for a price
NA329355000 9 Processed socket cover moulding with large hole standard machine Ask for a price
NA303629000 Socket cover moulding c/w large moulded hole (with processed holes) flame retardent csa spec Ask for a price
NA227781000 10 Flap moulding Ask for a price
NA329297000 11 Socket mounting plate Ask for a price
NA220391000 12 3 pin appliance socket Ask for a price
NA390979000 13 72mm long x 3mm diameter stainless steel bar Ask for a price
NA219819000 14 Torsion spring Ask for a price
NA219832000 15 3mm diameter starlock Ask for a price
NA270193000 16 Neon indicator red lens 230v c/w link wires traction machines only Ask for a price
NA270195000 Neon indicator red lens 120v c/w link wires traction machines only Ask for a price
NA219472000 17 M4 x 16mm long pozi pan sems screw Ask for a price
NA219267000 18 M4 x 20mm long pozi pan sems screw Ask for a price
NA404186000 19 Charger box Ask for a price
NA392346000 20 Charger deflector plate Ask for a price
NA219047000 21 M5 x 10mm long pozi pan sems screw Ask for a price
NA304497000 22 Nutserted charger spacer box painted silver grey chargerless machines Ask for a price
NA392370000 23 3mm black sbs connector spacer chargerless machines Ask for a price
NA219631000 24 19mm grommet Ask for a price
NA323178000 25 Loom assembly – 4 circuit – charger/inhitibt lead chargerless machines Ask for a price
NA323177000 26 Loom assembly – 1 circuit – charger/inhitibt lead chargerless machines Ask for a price
NA219519000 27 M3 x 25mm long pozi pan screw Ask for a price
NA219049000 28 M5 x 12mm long pozi pan screw Ask for a price
NA219493000 29 M6 nylon washer Ask for a price
NA291035000 30 M5 nylon insert nut (stainless steel) Ask for a price
NA208645000 31 Foam battery spacer Ask for a price
NA208598000 32 Ttv678 pocket bungee cord chargerless machines Ask for a price
NA304454000 33 Ttv678 pocket painted grey - nutserted chargerless machines Ask for a price
NA291008000 34 M5 x 10mm long pozi pan countersunk stainless steel screw Ask for a price
NA212262000 35 50mm long -12mm x 4mm x 1500mm v6 open cell natural sponge Ask for a price
NA230097000 36 Axial ferrite bead Ask for a price
