Spare Parts for:

Nacecare

AV18AX/SX Walk Behind Carpet Extractor 18 Gal

#NA802516800

Nacecare's AV18AX/SX industrial carpet extractor includes a rotating brush and squeegee for deep carpet cleaning. This carpet washer includes two 18-gallon tanks for heavy-duty cleaning.

Ask for a price

Parts Schema

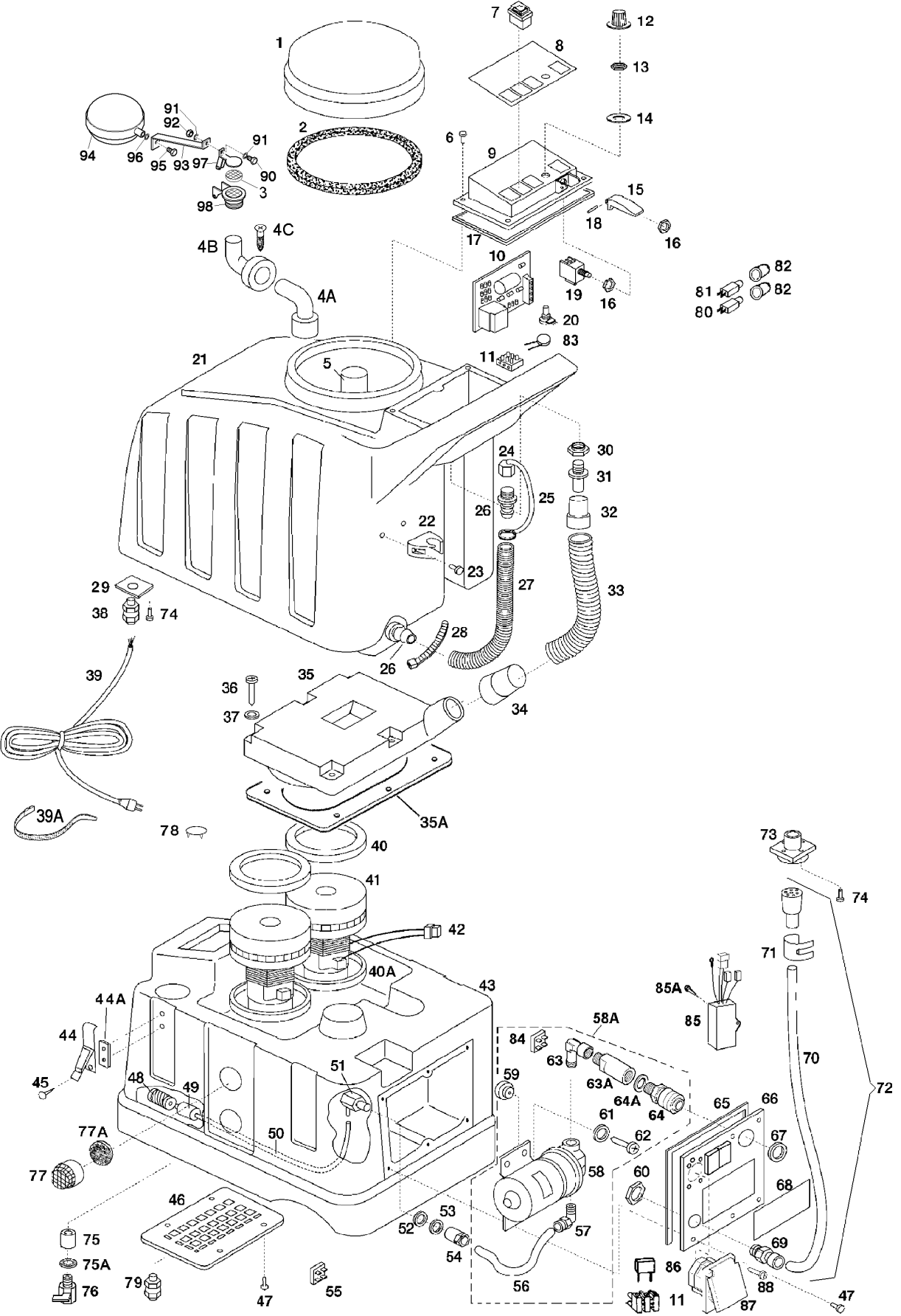

Motor Assembly (0001) Serial numbers 0001 and higher

SKU#	Label on drawing	Description	Ask for a price
NA15178C000	1	Cover with gasket	Ask for a price
NA151790000	2	Gasket	Ask for a price
NA152025000	3	Vacuum motor exhaust filter ppi30 d.44	Ask for a price
NA151310000	4A	Elbow	Ask for a price
NA151312000	4B	Elbow for float, with gasket	Ask for a price
NA15538I000	4C	Screw tc+ 3,9x19 inox	Ask for a price
NA151830000	5	Elbow 45°	Ask for a price
NA155510000	6	SCREW TC+ 4x16 INOX	Ask for a price
NA015217000	7	Switch	Ask for a price
NA152200000	7	3 position switch	Ask for a price
NA015185000	8	Panel label	Ask for a price
NA151771000	9	Control panel	Ask for a price
NA152740000	10	Electronic card 220-240v	Ask for a price
NA152750000	10	Electronic card 100-120v	Ask for a price
NA152361000	11	Fairlead	Ask for a price
NA15276C000	12	Compl.speed control knob+nut 516+515	Ask for a price
NA155160000	13	Ring nut	Ask for a price
NA155150000	14	Complete speed indicator (5151+5152)	Ask for a price
NA154570000	15	Drive lever	Ask for a price
NA155140000	16	Ring nut	Ask for a price
NA151280000	17	Gasket for upper panel	Ask for a price
NA155990000	18	Pin	Ask for a price
NA15277C000	19	Complete double microswitch	Ask for a price
NA15278W000	20	Potentiometer with wires	Ask for a price
NA151510000	21	Blue upper tank	Ask for a price
NA151600000	22	Clip	Ask for a price
NA155440000	23	Screw	Ask for a price
NA015159000	24	Cap for TP8X Extractor	Ask for a price
NA015162000	25	Tie	Ask for a price
NA015161000	26	Hose nipple	Ask for a price
NA015541000	28	Tie	Ask for a price
NA151090000	29	Fairlead plate	Ask for a price
NA155480000	30	Nut	Ask for a price
NA153650000	31	Hose nipple	Ask for a price
NA153641C00	33	Complete hose d.50 for grace-silent	Ask for a price
NA153641C00	34	Complete hose d.50 for grace-silent	Ask for a price
NA151551000	35	Manifold	Ask for a price
NA151551000	35A	Manifold	Ask for a price
NA155600000	36	Screw tc+ 5x30 uni 7687 inox	Ask for a price
NA155171000	37	WASHER 5x15x1,5 UNI 6593 INOX	Ask for a price
NA152950000	38	Fairlead with nut	Ask for a price
NA152150000	39	Cable 3 x 14 awg x 15m	Ask for a price
NA152160000	39	CABLE 3x1.5x15m WITH EURO PLUG	Ask for a price
NA158121300	40	Motor gasket 13mm high waterlift motor (after s/n: 45378)	Ask for a price
NA158250000	40	MOTOR GASKET 3mm	Ask for a price
NA158250000	40A	MOTOR GASKET 3mm	Ask for a price
NA015812000	40A	Gasket 10mm	Ask for a price
NA15808PA00	41	High waterlift 3 stages vacuum motor 1500w 220-240v	Ask for a price
NA15809PA00	41	3 stages motor 1300w 110-120v 50/60hz (s/n after 07xx47090)	Ask for a price
NA158090000	41	3 stages motor 1300w 110-120v 50/60hz	Ask for a price
NA152340000	42	Connector	Ask for a price
NA152500000	42	Male electrical terminal	Ask for a price
NA15152AZ00	43	Blue lower tank	Ask for a price
NA15152V000	43	Green lower tank	Ask for a price
NA151420000	44	Coupler	Ask for a price
NA151670000	44A	Plate	Ask for a price
NA155450000	45	Screw Tc+ 3,9x19	Ask for a price
NA15180POW0	46	Lower panel	Ask for a price
NA015536000	47	Screw	Ask for a price
NA156080000	48	Filter	Ask for a price
NA157470000	49	Ballast for water filter	Ask for a price
NA157450000	50	Extraflex hose 67cm	Ask for a price
NA15702D000	51	Coupling for water filter	Ask for a price
NA151470000	52	Neoprene washer	Ask for a price
NA155400000	53	Metal washer	Ask for a price
NA157140000	54	Quick disconnect - female	Ask for a price
NA152793500	55	External rectifier for shurflo pump	Ask for a price
NA157460000	56	Rilsan pipe	Ask for a price
NA156220000	57	Elbow	Ask for a price
NA156430000	58	Pump 220-240v 50-60 hz 100 psi+ rectif.27935	Ask for a price
NA015644000	58	Pump 100-120v 100 psi	Ask for a price
NA15643CM00	58A	Pump 220-240v 50-60 hz 100 psi +rectifier 27935	Ask for a price
NA15644CM00	58A	Pump 100-120v 50-60 hz 100 psi + metal couplings	Ask for a price
NA157360000	59	Vibration damping	Ask for a price
NA155640000	60	Ring nut	Ask for a price
NA155040000	62	SCREW TC+ 5x20	Ask for a price
NA155460000	62	Screw 5x25	Ask for a price
NA015720000	63	Elbow	Ask for a price
NA015753000	63A	Extension for metal coupl.	Ask for a price
NA157210000	63A	Extension for plastic coupling	Ask for a price
NA15687PE00	64	Female quick	Ask for a price
NA151860000	65	Panel gasket	Ask for a price
NA151480000	66	Panel	Ask for a price
NA151630000	67	Bush	Ask for a price
NA151580000	68	Lower panel label	Ask for a price
NA152620000	69	Connecting part	Ask for a price
NA152610000	70	Cable sheath	Ask for a price
NA152650000	71	Tie	Ask for a price
NA152613C00	72	Cable sheath with wires+cod.260+265	Ask for a price
NA152593C00	73	Socket with wires	Ask for a price
NA155380000	74	Screw tc+ 3,9 x 13	Ask for a price
NA157520000	75	Connecting part	Ask for a price
NA155210000	75A	Locking washer diam.12mm	Ask for a price
NA157510000	76	Ball valve (drain)	Ask for a price
NA151163800	77	Plastic filter	Ask for a price
NA152025000	77A	Vacuum motor exhaust filter ppi30 d.44	Ask for a price
NA158240000	78	Motor valve	Ask for a price
NA152950000	79	Fairlead with nut	Ask for a price
NA152910000	80	Cable sheath	Ask for a price
NA152930000	80	Thermal protection – 1,5a (100-120v)	Ask for a price
NA152908000	81	Thermal protection – 0,8a (220-240v)	Ask for a price
NA152930000	81	Thermal protection – 1,5a (100-120v)	Ask for a price
NA152940000	82	Rubber protection	Ask for a price
NA158132000	83	Varistor for pump	Ask for a price
NA152793500	84	External rectifier for shurflo pump	Ask for a price
NA152900000	85	Pump radio interference suppressor	Ask for a price
NA155380000	85A	Screw tc+ 3,9 x 13	Ask for a price
NA152350000	86	Motor radio interference suppressor	Ask for a price
NA152690000	87	Electrical socket for euro plug	Ask for a price
NA155380000	88	Screw tc+ 3,9 x 13	Ask for a price
NA1557504I0	90	Screw te 4x12 inox	Ask for a price
NA155210000	91	Locking washer diam.12mm	Ask for a price
NA155230000	92	Nut es. 4 ma uni 5587 ottone	Ask for a price
NA151707000	94	Spherical floater	Ask for a price
NA1558206W0	95	Screw 6x8 inox passo 1/4x3/8 whitworth	Ask for a price
NA1552106I0	96	Locking washer est.diam 6 inox	Ask for a price
NA1517041C0	97	Moving part for floater	Ask for a price
NA151703100	98	Fixed part for floater	Ask for a price
