Spare Parts for:

Nacecare

AV4X Compact Carpet Extractor 4 Gal

#NA802516000

Nacecare's AV4X carpet extractor features two detachable 4-gallon tanks for easy transport. This compact model is perfect for tight or confined spaces.

Ask for a price

Parts Schema

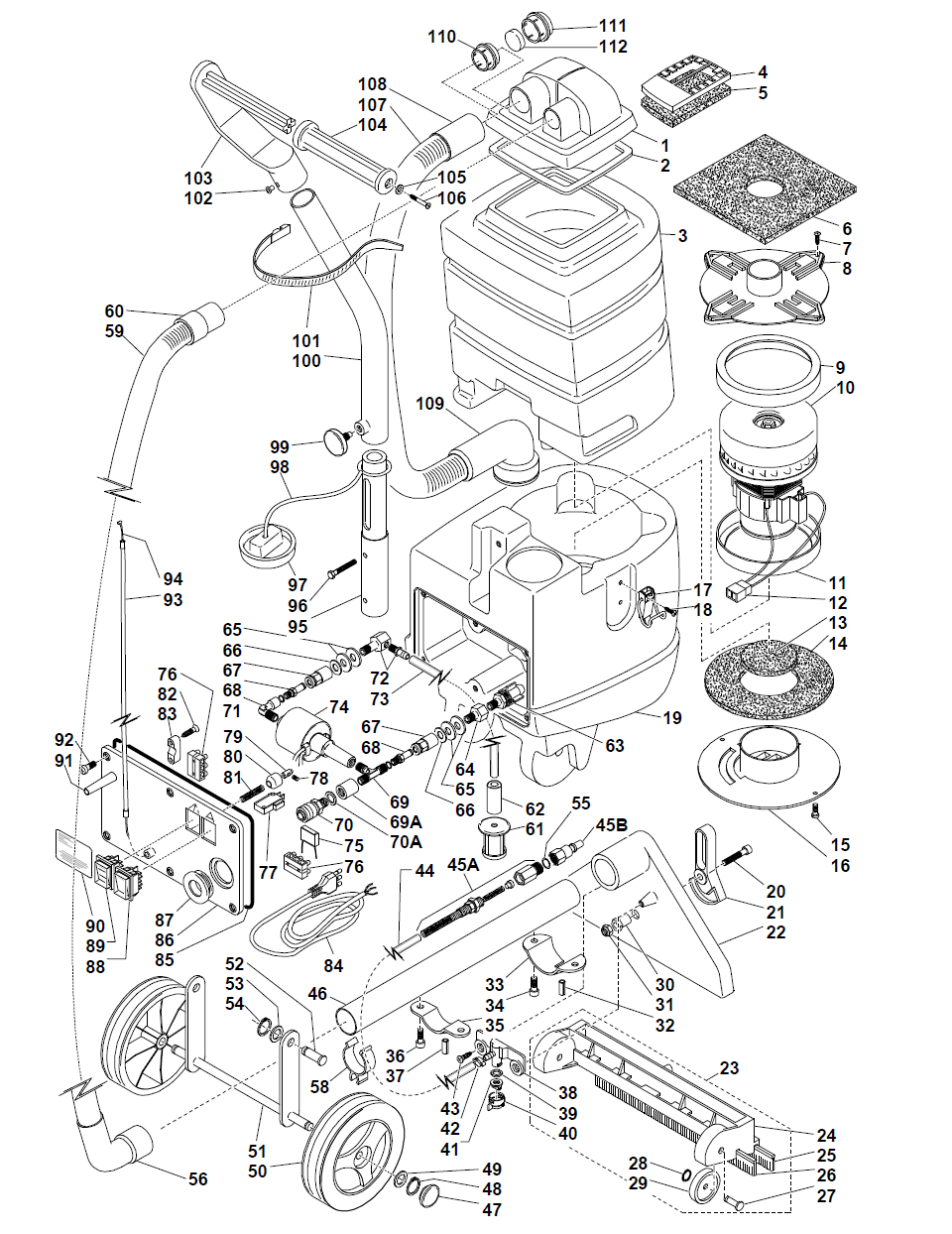

General Assembly (9701) Serial Numbers between 9701 to 0726

SKU#	Label on drawing	Description	Ask for a price
NA151331C00		Complete cover with floater	Ask for a price
NA151341000	2	Cover gasket	Ask for a price
NA151050000	3	Recovery Tank	Ask for a price
NA151333000	5	Cover filter	Ask for a price
NA152021000	6	Soundproofing	Ask for a price
NA015536000	7	Screw	Ask for a price
NA151361000	8	Motor Flange	Ask for a price
NA158110000	9	Gasket 5mm	Ask for a price
NA015820000	10	2 stages motor 1000w 110v 50/60 hz	Ask for a price
NA015812000	11	Gasket 10mm	Ask for a price
NA152340000	12	Connector	Ask for a price
NA152500000		Male electrical terminal	Ask for a price
NA152022000	13	Soundproofing Disc	Ask for a price
NA152023000	14	Soundproofing Ring	Ask for a price
NA015536000	15	Screw	Ask for a price
NA151410000	16	Lower flange	Ask for a price
NA151420000	17	Coupler	Ask for a price
NA155380000	18	Screw tc+ 3,9 x 13	Ask for a price
NA151051000	19	Solution Tank	Ask for a price
NA155092000	20	Screw – diam. 8	Ask for a price
NA153083000	21	Lever	Ask for a price
NA153081000	22	Aluminum vacuum head	Ask for a price
NA153084C00	23	Complete slide (items from 33 to 37)	Ask for a price
NA153084000	24	Slide body	Ask for a price
NA153221000	25	Rubber strip	Ask for a price
NA153221000	26	Rubber strip	Ask for a price
NA153085000	27	Stud	Ask for a price
NA155780800	28	Seeger	Ask for a price
NA153086000	29	Slide wheel	Ask for a price
NA153082000	30	Bush	Ask for a price
NA15568A000	31	Locking nut d.8	Ask for a price
NA155190000	32	Rivet 3,8 x 12	Ask for a price
NA155001000	33	Lock For Vacuum Head	Ask for a price
NA155740000	34	SCREW – 6x14	Ask for a price
NA155002000	35	Lock For Vacuum Tube	Ask for a price
NA155740000	36	SCREW – 6x14	Ask for a price
NA155190000	37	Rivet 3,8 x 12	Ask for a price
NA157231000	38	Nozzle support	Ask for a price
NA153209000	39	O-ring	Ask for a price
NA157180000	40	Nut for nozzle	Ask for a price
NA157050200	41	Nozzle 02/110	Ask for a price
NA155430000	42	Lock band	Ask for a price
NA015536000	43	Screw	Ask for a price
NA157012000	44	Solution Pipe	Ask for a price
NA156181C00		Complete Coupling M. 1/4” For 6/8 Pipe, With Antidrop	Ask for a price
NA156181000		Coupling m. 1/4” for 6/8 pipe, with spring	Ask for a price
NA156071000		Spring for antidrop	Ask for a price
NA151110000		Rubber pin	Ask for a price
NA157432000		Coupling for antidrop, att. M. 1/4”	Ask for a price
NA15689PE00		Quick disconnect male – att. F-1/4” – metal	Ask for a price
NA153501000	46	Straight Hose – Diam.36	Ask for a price
NA151190000	47	Lower panel label	Ask for a price
NA155781000	48	Seeger D.10	Ask for a price
NA155100000	49	Washer Diam. 10x20	Ask for a price
NA151180000	50	Wheel	Ask for a price
NA155004000	51	Metal Wheel Support	Ask for a price
NA155003000	52	Stud – Diam. 12	Ask for a price
NA155200000	53	Washer Diam. 12x24	Ask for a price
NA155781200	54	Seeger d.12	Ask for a price
NA153209000	55	O-ring	Ask for a price
NA151831000	56	Elbow	Ask for a price
NA153321000	57	Cuff Diam.32/38	Ask for a price
NA153180000	58	Clip	Ask for a price
NA153452000	59	Vacuum Hose D.32 L=72cm	Ask for a price
NA153320000	60	Cuff	Ask for a price
NA156080000	61	Filter	Ask for a price
NA157470000	62	Ballast for water filter	Ask for a price
NA156400000	63	By pass	Ask for a price
NA157240000	64	Connecting part	Ask for a price
NA151470000	65	Neoprene washer	Ask for a price
NA155400000	66	Metal washer	Ask for a price
NA157140000	67	Quick disconnect - female	Ask for a price
NA156980000	68	Quick disconnect male	Ask for a price
NA157220000	69	Connecting part	Ask for a price
NA157621400		Coupling ff a3 1/4	Ask for a price
NA15687PE00	70	Female quick	Ask for a price
NA151513710		Gasket For Coupling 687-Pe	Ask for a price
NA156260000	71	Elbow	Ask for a price
NA157020000	72	Connecting part	Ask for a price
NA157011000	73	Solution Pipe L=50cm	Ask for a price
NA157290000	74	Pump 100-120v 50-60 hz	Ask for a price
NA15729C000		Pump 100-120v with fittings	Ask for a price
NA152350000	75	Motor radio interference suppressor	Ask for a price
NA152360000	76	Connecting terminal	Ask for a price
NA152770000	77	Micro-switch	Ask for a price
NA155730400	78	STOP DOWEL 4x4	Ask for a price
NA155011000	79	Wire lock	Ask for a price
NA155010000	80	Conic pin	Ask for a price
NA154700C00	81	Complete Pawl	Ask for a price
NA155370000	82	Screw	Ask for a price
NA152380000	83	Cable lock	Ask for a price
NA152151000	84	Complete cable – us plug	Ask for a price
NA151861000	85	Panel gasket	Ask for a price
NA151381000	86	Control Panel	Ask for a price
NA151630000	87	Bush	Ask for a price
NA015217000	88	Switch	Ask for a price
NA152200000	89	3 position switch	Ask for a price
NA151391000	90	Plate	Ask for a price
NA152370000	91	Fairlead	Ask for a price
NA015536000	92	Screw	Ask for a price
NA155012000	93	Sheath	Ask for a price
NA155013000	94	Rope	Ask for a price
NA153710000	95	Tube	Ask for a price
NA155824500	96	Screw Te 6x45	Ask for a price
NA151200000	97	Cover For Lower Tank	Ask for a price
NA151201000	98	Tie For Lower Tank Cover	Ask for a price
NA153711000	99	Locking Knob	Ask for a price
NA153712000	100	Adjustable-Height Tube	Ask for a price
NA015541000	101	Tie	Ask for a price
NA155190000	102	Rivet 3,8 x 12	Ask for a price
NA155006000	103	Handle	Ask for a price
NA155007000	104	Knob	Ask for a price
NA155171000	105	WASHER 5x15x1,5 UNI 6593 INOX	Ask for a price
NA155450000	106	Screw Tc+ 3,9x19	Ask for a price
NA153451000	107	Vacuum Hose D.32 L=55cm	Ask for a price
NA153321000	108	Cuff Diam.32/38	Ask for a price
NA151530000	109	Elbow	Ask for a price
NA151163200	110	Plastic filter	Ask for a price
NA151163800	111	Plastic filter	Ask for a price
NA152025000	112	Vacuum motor exhaust filter ppi30 d.44	Ask for a price
