Battery Auto-Scrubber with Traction Drive Twintec TGB 1620T #NA904111000

Spare Parts for:

Battery Auto-Scrubber with Traction Drive Twintec TGB 1620T
#NA904111000


Twintec TGB 1620T Ah gel battery auto-scrubber with traction drive. Its 16 gal (60 L) solution and recovery tanks and a 20" cleaning path, it is built for the most demanding users.
Parts Schema

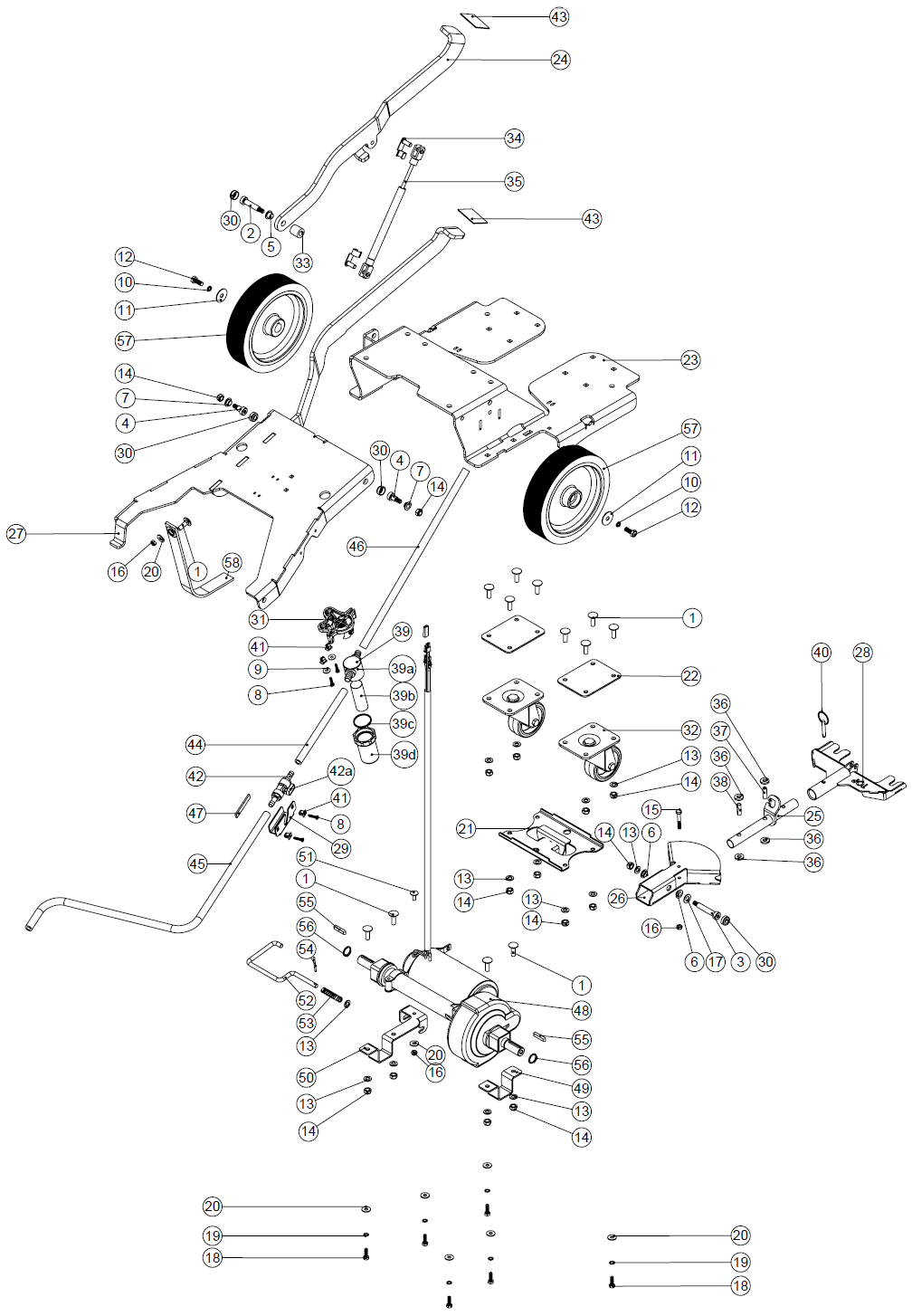

Chassis Assembly
Image SKU# Label on drawing Description Ask for a price
NA902010000 1 M8 x 25 coach bolt s/s Ask for a price
NA208355000 2 M8 x 10 x 40mm long hex socket shoulder bolt Ask for a price
NA208333000 3 M8 x 10 x 50mm long hex socket shoulder bolt Ask for a price
NA208313000 4 M8 x 10 x 12mm long hex socket shoulder bolt Ask for a price
NA208331000 5 Igus bearing (gfm 101209) Ask for a price
NA208312000 6 Igus bearing (gfm 101205) Ask for a price
NA208330000 7 Igus bearing (gfm 101206) Ask for a price
NA219568000 8 No8 x 3/4 inch long pozi pan stainless steel screw Ask for a price
NA219644000 9 M5 form g stainless steel washer Ask for a price
NA219898000 10 M8 single coil stainless steel washer Ask for a price
NA219877000 11 M8 x 30 stainless steel washer Ask for a price
NA219717000 12 M8 x 20mm long hexagonal stainless steel bolt Ask for a price
NA219578000 13 M8 form a stainless steel washer Ask for a price
NA219639000 14 M8 stainless steel nylon insert nut Ask for a price
NA291125000 15 M6 x 40 long hex bolt stainless steel Ask for a price
NA219642000 16 M6 stainless steel nylon insert nut Ask for a price
NA219903000 17 M10 form a stainless steel washer Ask for a price
NA219976000 18 M6 x 20mm long hexangonal head set screw Ask for a price
NA902353000 19 M6 external shakeproof washer stainless steel Ask for a price
NA219647000 20 M6 form g stainless steel washer Ask for a price
NA904960000 21 Floor tool lifting pivot bracket weld assy painted silver Ask for a price
NA329581000 22 Castor adaptor spacer Ask for a price
NA904074000 23 Tgb6055 traction chassis painted silver Ask for a price
NA404131000 24 Ttv4555 extra load pedal z/pl Ask for a price
NA905730000 25 Tgb6055 floor tool pivot tube assembly Ask for a price
NA905728000 26 Floor tool lifting plate weld assembly (3mm m/s) z/pl Ask for a price
NA902268000 27 Etb6055 deck lifting link z/pl Ask for a price
NA304466000 28 Floor tool bracket assembly (tt/ttb4045/4055) Ask for a price
NA902262000 29 Tap bracket painted silver Ask for a price
NA237632000 30 Shoulder bolt cover Ask for a price
NA901006000 31 Filter mounting bracket Ask for a price
NA204116000 32 Heavy duty castor. Blue tyre Ask for a price
NA208350000 33 Nylon spacer i/d 10.2mm x o/d 20.0mm x length 21.0mm Ask for a price
NA208634000 34 Gas ram clevis clip Ask for a price
NA208623000 35 280n gas ram Ask for a price
NA206964000 36 Slide nylon spacer Ask for a price
NA206963000 37 Vertical nylon spacer Ask for a price
NA206954000 38 Spiro spacer Ask for a price
NA208888000 39 Extended strainer Ask for a price
NA208827000 39a Strainer black top spare part Ask for a price
NA208889000 39b Extended strainer 50 mesh screen spare part Ask for a price
NA208830000 39c Strainer gasket spare part Ask for a price
NA002088900 39d Extended strainer clear bowl spare part for TTB 1117 Ask for a price
NA206953000 40 Detent pins Ask for a price
NA900986000 41 Nylon grommet nut (plastic insert to suit no 8 plastite screw) Ask for a price
NA208761000 42 10mm hose tail to 10mm hose tail ball valve assembly Ask for a price
NA901544000 42a Tap handle c/w cover and m3x6mm screw (spare item) spare part Ask for a price
NA903064000 43 Foot pedal pad (red) 903063 cut to lenght Ask for a price
NA303713000 44 Silicone tube (210mm long) Ask for a price
NA391216000 45 Silicon tube 8mm i/d x 3.2mm wall section (cut 600mm) Ask for a price
NA304443000 46 Silicon tube 8mm i/d x 3.2mm wall section (cut 420mm) Ask for a price
NA902760000 47 3MM THICK X 9MM WIDE INSEAL (212052 x 60MM LONG) Ask for a price
NA321700000 48 465mm long asi transaxle c/w shortned 850mm wires Ask for a price
NA329497000 49 Transaxle mounting bracket Ask for a price
NA392217000 50 Ttv4555 brake lever and axle clamp Ask for a price
NA291103000 51 M6 x 16 coach bolt s/s Ask for a price
NA304370000 52 Ttv4555 brake lever Ask for a price
NA219326000 53 50mm long compression spring Ask for a price
NA219171000 54 3.2mm x 28mm split cotter pin Ask for a price
NA206744000 55 6mm x 6mm x 32mm feather key Ask for a price
NA219889000 56 19mm heavy duty circlip Ask for a price
NA204115000 57 200mm x 50mm traction wheel - grey pu tread combed profile Ask for a price
NA903323000 58 Anti-static strap (cut to lenght: 320mm long) Ask for a price

Parts Schemas List

Parts Schema
Schema Version
Serial Numbers 1708 and higher
Serial Numbers 1708 and higher
