Spare Parts for:

Nacecare

CRL2128 / 100T 28'' Autoscrubber

#NA906725000

The CRL 2128 provide the maneuverability of a walk-behind with the productivity of a ride-on.

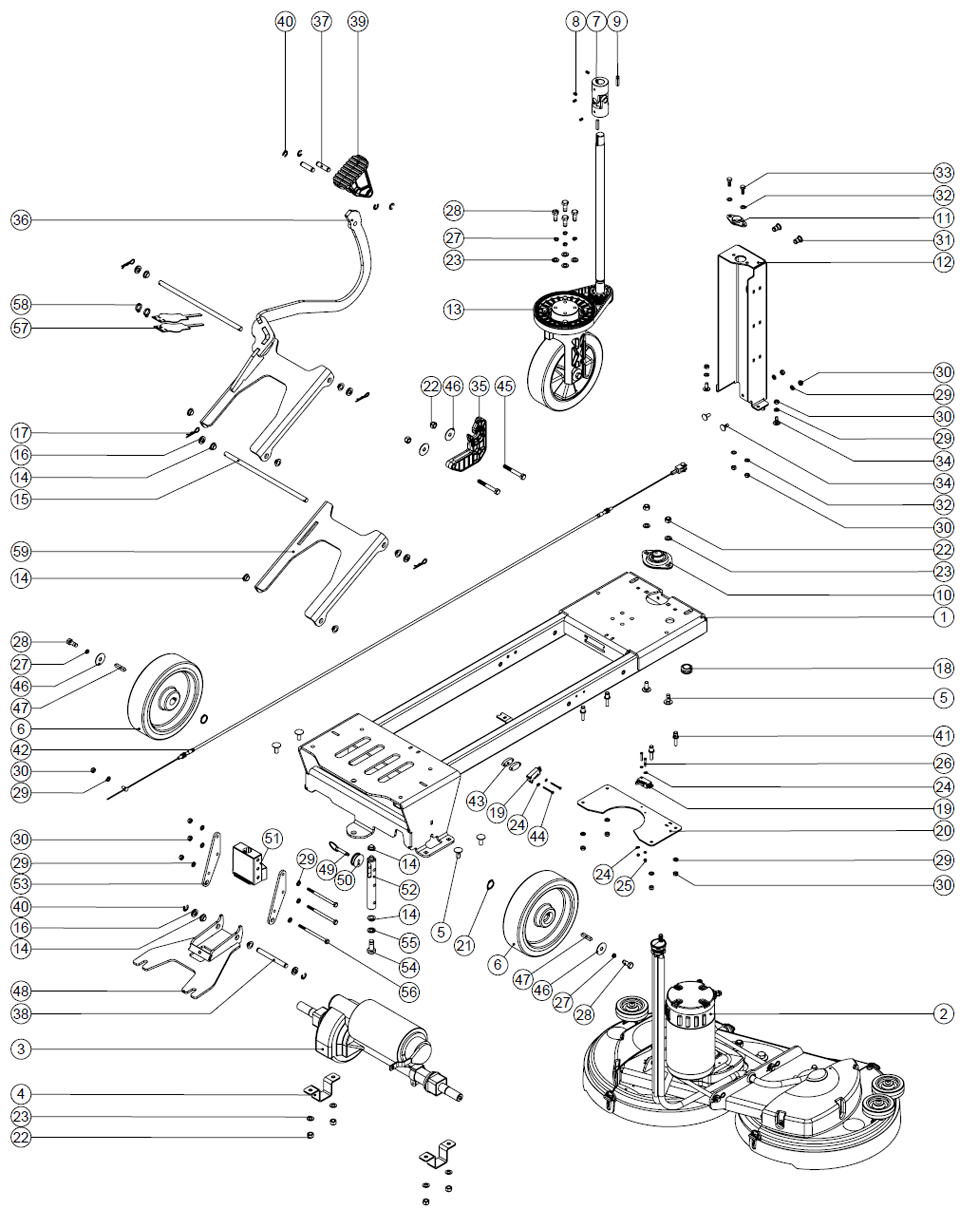

Parts Schema

Chassis Assembly (1643) Serial Numbers 1643 and higher

SKU#	Label on drawing	Description	Ask for a price
NA304515000	1	Mini ride on chassis weld assembly	Ask for a price
NA903512000	2	Twin brush deck assy	Ask for a price
NA323254000	3	530mm asi transaxle 21:1 high speed (mk400) 310070 chain tail brake kit	Ask for a price
NA329780000	4	Transaxle clamp	Ask for a price
NA291104000	5	M8 x 20 coach bolt s/s	Ask for a price
NA901209000	6	200 x 50 traction wheel (plastic)	Ask for a price
NA206936000	7	Universal joint	Ask for a price
NA219784000	8	M5 x 8mm long blackodised grub screw	Ask for a price
NA208884000	10	2 part pressed flange bearing	Ask for a price
NA208110000	11	Igus (r) 2 bolt plain bearing 20mm i/d	Ask for a price
NA392418000	12	Steering column support brkt	Ask for a price
NA208330000	14	Igus bearing (gfm 101206)	Ask for a price
NA291101000	15	Pivot rod	Ask for a price
NA219964000	16	Nylon washer (18mm o/d x 10.4mm i/d x 3mm thick)	Ask for a price
NA291102000	17	Small r pin (s masters 89100 ss)	Ask for a price
NA208143000	18	20mm grommet x 6mm panel thickness	Ask for a price
NA208986000	19	Ip rated microswitch with roller	Ask for a price
NA392398000	20	Switch plate	Ask for a price
NA219889000	21	19mm heavy duty circlip	Ask for a price
NA219639000	22	M8 stainless steel nylon insert nut	Ask for a price
NA219578000	23	M8 form a stainless steel washer	Ask for a price
NA219501000	24	M3 form a stainless steel washer	Ask for a price
NA291154000	25	M3 nylon insert nut stainless steel	Ask for a price
NA291155000	26	M3 x 20mm long pozi pan screw stainless steel	Ask for a price
NA219898000	27	M8 single coil stainless steel washer	Ask for a price
NA291140000	28	M8 x 20mm lg hex head screw stainless steel c/w threadlock	Ask for a price
NA219870000	29	M6 form a washer stainless steel	Ask for a price
NA219642000	30	M6 stainless steel nylon insert nut	Ask for a price
NA219750000	31	M8 headed nutsert	Ask for a price
NA219560000	32	M6 form b stainless steel washer	Ask for a price
NA219719000	33	M6 x 16mm long hexagonal stainless steel head bolt	Ask for a price
NA291103000	34	M6 x 16 coach bolt s/s	Ask for a price
NA237677000	35	Latch moulding	Ask for a price
NA304513000	36	Deck link & pedal arm weld assy	Ask for a price
NA291097000	37	38 x10mm bar (e type clip)	Ask for a price
NA291098000	38	94 x10mm bar (e type clip)	Ask for a price
NA903860000	39	Pedal moulding (red)	Ask for a price
NA291107000	40	E type clip (to suit 10mm bar)	Ask for a price
NA291116000	41	M6 x 25 rivet stud	Ask for a price
NA291099000	42	Cro 8055 sq. Lift cable	Ask for a price
NA392498000	43	6mm switch spacer	Ask for a price
NA291156000	44	M3 x 30mm long pozi pan screw stainless steel	Ask for a price
NA291157000	45	M8 x 60mm long hex bolt stainless steel	Ask for a price
NA219877000	46	M8 x 30 stainless steel washer	Ask for a price
NA206744000	47	6mm x 6mm x 32mm feather key	Ask for a price
NA304516000	48	Moose plate weld assembly	Ask for a price
NA206953000	49	Detent pins	Ask for a price
NA208898000	50	Nylon pulley 32mm od	Ask for a price
NA237676000	51	Multi block moulding	Ask for a price
NA291100000	52	Squeegee pivot bar	Ask for a price
NA392436000	53	Pivot side plate	Ask for a price
NA291141000	54	M10 x 25mm lg hex head screw stainless steel c/w threadlock	Ask for a price
NA291163000	55	Nylon washer 18mm o/d x 10.5mm i/d x 2mm	Ask for a price
NA291021000	56	M6 x 90mm long stainless steel hexagonal head bolt	Ask for a price
NA392497000	57	Switch spring plate	Ask for a price
NA220007000	58	Black cable tie	Ask for a price
NA392393000	59	Deck link arm	Ask for a price
