DP380 Turbo Mop Duplex Multi-Surface Floor Cleaner #NA802510900

Spare Parts for:

DP380 Turbo Mop Duplex Multi-Surface Floor Cleaner
#NA802510900


The Turbo mop multi-surface floor scrubber is designed for all kinds of floor surfaces and work environments. It cleans and dries twice as well as traditional floor scrubbers.

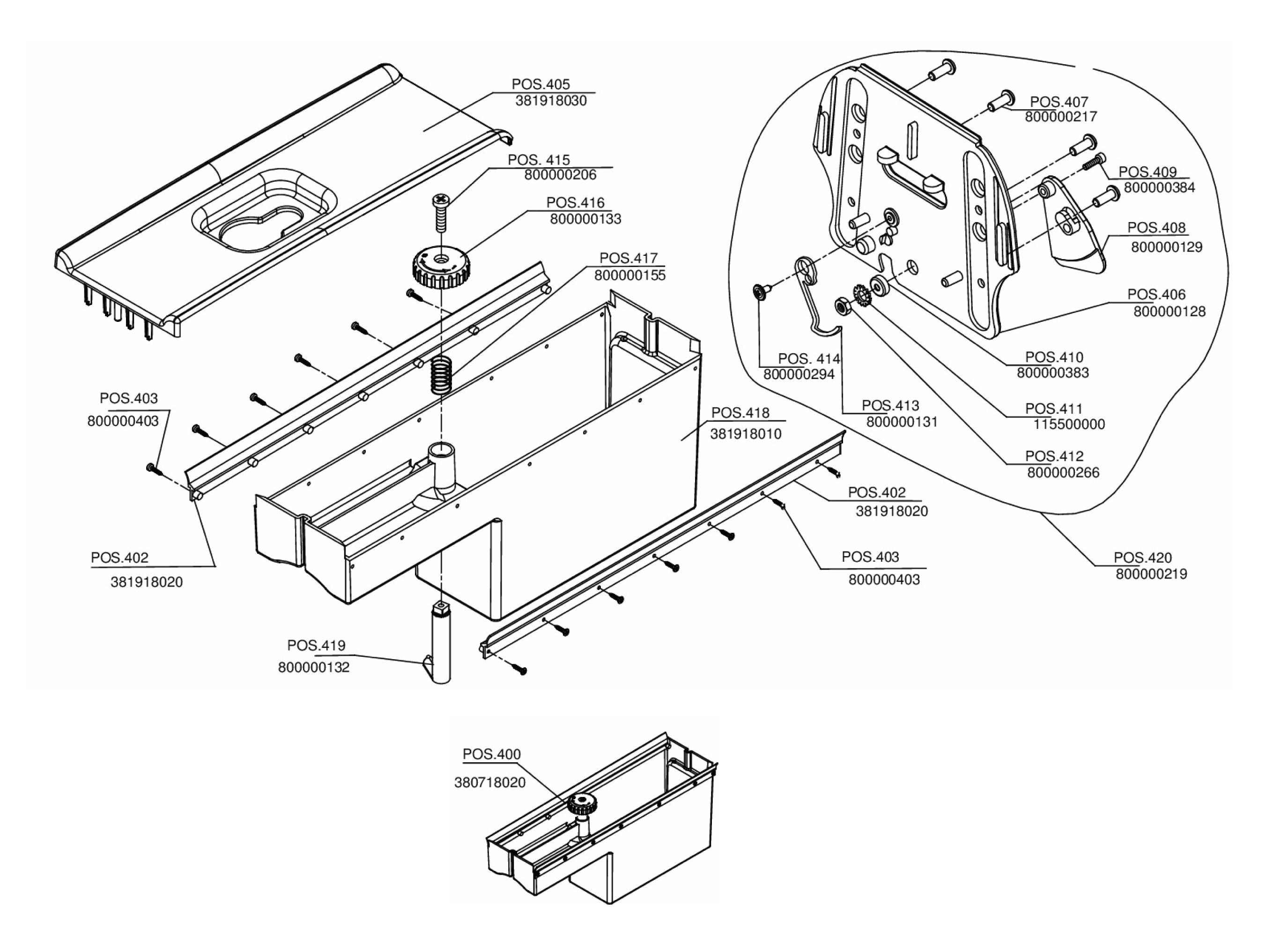

Parts Schema
Rear Side Recovery Tank Assembly
Image SKU# Label on drawing Description Ask for a price
NA380718020 400 Recovery tank complete 380 Ask for a price
NA381918020 402 Trimmer 380 Ask for a price
NA800000403 403 Screw tsp 2,9x6,5 a2 din7982f Ask for a price
NA381918030 405 Rec.tank cover 380 Ask for a price
NA800000128 406 Rear side 280/380 Ask for a price
NA800000217 407 Screw tb m6x16 zn Ask for a price
NA800000129 408 Lifting jack 280/380 Ask for a price
NA800000384 409 Screw tc ph m4x12 zn blk Ask for a price
NA800000383 410 Washer 4,3x16x1,5 din9021 zn Ask for a price
NA115500000 411 Washer thtd d.4 Ask for a price
NA800000266 412 Nut low m4 Ask for a price
NA800000131 413 Spring for lifting jack Ask for a price
NA800000294 414 Screw tbl ran pz m4x7 Ask for a price
NA800000206 415 Screw tc 4,9x13 a2 din7981 c Ask for a price
NA800000133 416 Black knob / rec.tank Ask for a price
NA800000155 417 Spring for rec. Tank Ask for a price
NA381918010 418 Recovery tank 380 Ask for a price
NA800000132 419 Lifting rod black / rec.tank Ask for a price
NA800000219 420 Rear side assembled 280/380 Ask for a price
NA800000219 420 Rear side assembled 280/380 Ask for a price
