Catalog
DP420 Brush Scrubber Duplex #NA802511200

Spare Parts for:

DP420 Brush Scrubber Duplex
#NA802511200


A 14" cylindrical brush autoscrubber with two counter-rotating brushes. The Duplex DP420 is ideal to clean any irregular surfaces.

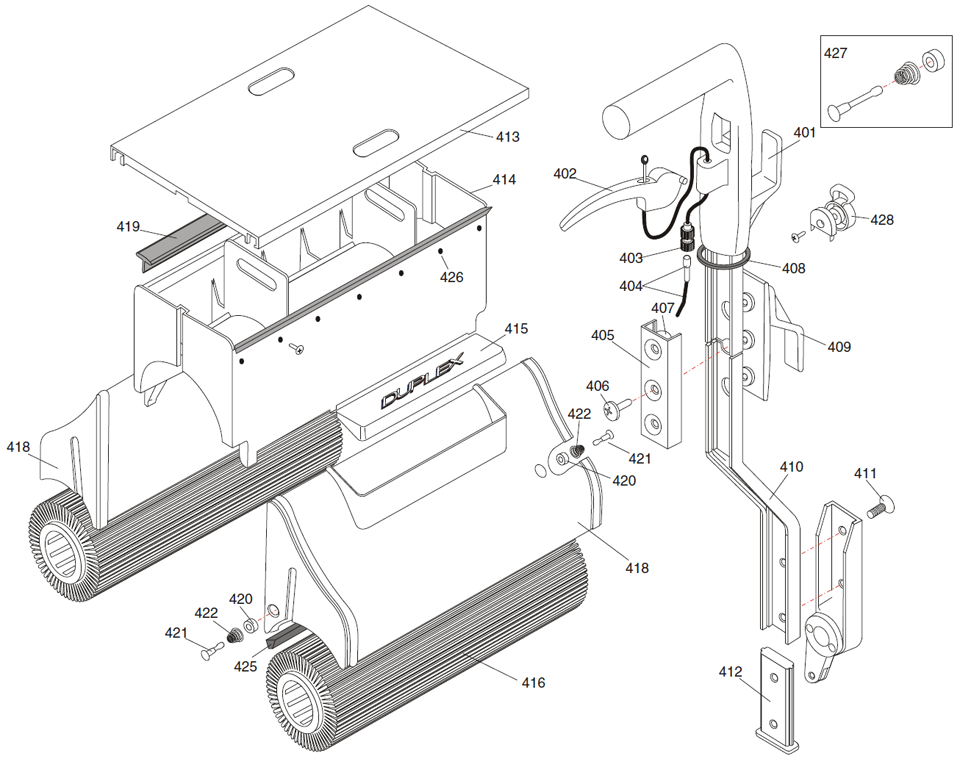

Parts Schema
Brush & Handle Assembly Serial Number 0001 and higher
Image SKU# Label on drawing Description Ask for a price
NA130610000 401 Handle black 420 Ask for a price
NA130810000 402 Handle lever black Ask for a price
NA221600000 403 Regolator with shealt nut Ask for a price
NA221110000 404 Complete cable shealt and cape Ask for a price
NA200902000 405 Sleeve casing Ask for a price
NA111201000 406 Sockel head screw tpsce 8 x 16 (bitt) Ask for a price
NA202000000 407 Terminal gasket Ask for a price
NA407000000 408 Or. Fairlead (rubber ring) Ask for a price
NA130910000 409 Bitt black Ask for a price
NA210501000 410 Aluminium elbow d.420 Ask for a price
NA111301000 411 Sockel head screw tpsce 8 x 25 (elbow) Ask for a price
NA141401000 412 Rubber insert (elbow) Ask for a price
NA170300000 413 Recovery fluid tank cover d.420 Ask for a price
NA122301000 414 Recovery tank w/tsp screws 420 grey Ask for a price
NA170100000 415 Clean fluid tank cover d.340/420 Ask for a price
NA190101000 416 Brush tynex d.420 Ask for a price
NA190102000 416 Yellow soft bristle brush d.420 Ask for a price
NA190103000 416 Black bristle brush d.420 Ask for a price
NA190104000 416 Grey soft bristle brush d.420 Ask for a price
NA190108000 416 Hard bristle brush d.0,50 d.420 Ask for a price
NA125501000 418 Fluid tank d.420 blue Ask for a price
NA403300000 419 Trimmer (screw on type) 420 Ask for a price
NA406000000 420 Valve gasket Ask for a price
NA114000000 421 Valve shaft Ask for a price
NA100100000 422 Valve spring Ask for a price
NA120701000 425 Set of drip channel d.420 Ask for a price
NA110800000 426 Screw tsp 2,9x9,5 Ask for a price
NA114100000 427 Set of valve shaft with accessories Ask for a price
NA416010000 428 Cable suspension Ask for a price
