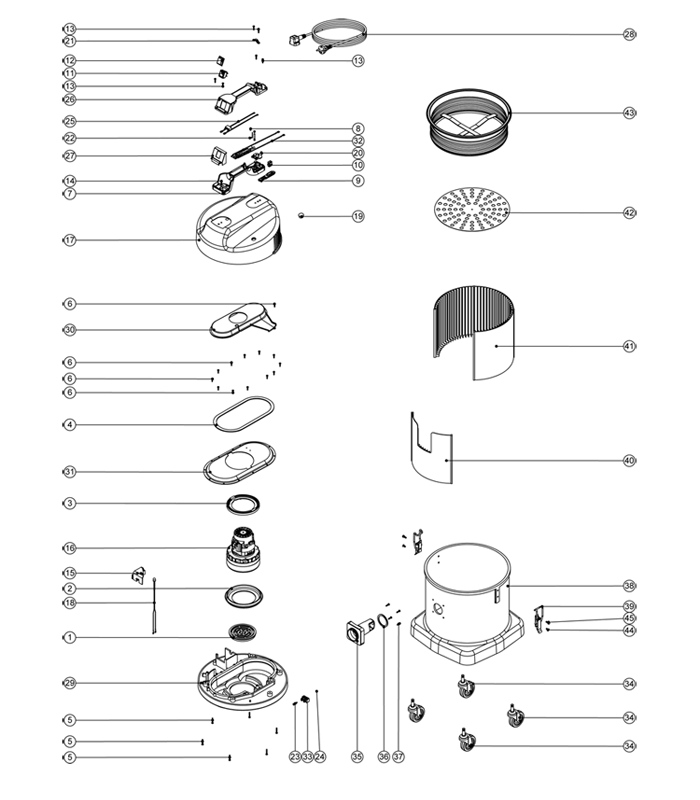

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA206010000 | 1 | Fan guard | Ask for a price |
|
NA202005000 | 2 | Motor bottom gasket | Ask for a price |
|
NA227925000 | 3 | Top motor gasket | Ask for a price |
|
NA202012000 | 4 | Gasket | Ask for a price |
|
NA219369000 | 5 | No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW | Ask for a price |
|
NA021937000 | 6 | No8 X 5/8 INCH LONG PLASTITE STAINLESS STEEL SCREW | Ask for a price |
|
NA320686000 | 7 | Handle base moulding | Ask for a price |
|
NA219090000 | 8 | M4 x 8mm long pozi pan sems screw | Ask for a price |
|
NA227636000 | 9 | Strain relief | Ask for a price |
|
NA227637000 | 10 | Cable clip | Ask for a price |
|
NA220552000 | 11 | Red rocker switch (white print) | Ask for a price |
|
NA206573000 | 12 | Switch cover (plug handle) | Ask for a price |
|
NA219107000 | 13 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA219546000 | 14 | M5 x 20mm long pozi pan sems screw | Ask for a price |
|
NA237069000 | 15 | Led holder (dustcare system) | Ask for a price |
|
NA205442000 | 16 | 220v 2 stage d.i bypass acustek motor (bl21102t) (marked 230v) tco | Ask for a price |
|
NA205443000 | 16 | 230v 2 stage d.i bypass acustek motor (bl21104t) (marked 230v) tco | Ask for a price |
|
NA205441000 | 16 | 120v 2 stage d.i bypass acustek motor (bl21101) | Ask for a price |
|
NA323001000 | 17 | Ndd cover processed for low flo led | Ask for a price |
|
NA230165000 | 18 | Low flow led loom | Ask for a price |
|
NA220967000 | 19 | Lens cover | Ask for a price |
|
NA227631000 | 20 | Terminal cover & clamp (3 pin) | Ask for a price |
|
NA216290000 | 21 | Cable clamp | Ask for a price |
|
NA206562000 | 22 | Contact pin | Ask for a price |
|
NA21990V000 | 23 | M4 x 20mm long pozi pan screw | Ask for a price |
|
NA219083000 | 24 | M4 nylon insert nut | Ask for a price |
|
NA230151000 | 25 | 220v duplex suppressor assembly | Ask for a price |
|
NA229990000 | 26 | Handle cover 16amp 2pin | Ask for a price |
|
NA320826000 | 26 | Handle cover (drilled/hard wired/v2 rated) | Ask for a price |
|
NA227635000 | 27 | Switch mounting bracket (1 switch) | Ask for a price |
|
NA236144000 | 28 | 10.0mt x 1.5mm x 2 core yellow cable (socket + plug) euro | Ask for a price |
|
NA301047000 | 29 | Processed bottom motor housing | Ask for a price |
|
NA325816000 | 30 | Simplex air separator drilled for terminal block (fine dust system) | Ask for a price |
|
NA225167000 | 31 | Simplex top motor housing | Ask for a price |
|
NA230177000 | 32 | 230v nds low flow board | Ask for a price |
|
NA230178000 | 32 | 110v nds low flow board | Ask for a price |
|
NA220316000 | 33 | Terminal block elkay | Ask for a price |
|
NA204060000 | 34 | 3 inch castor | Ask for a price |
|
NA208220000 | 35 | Bag connector - (fine dust 14" drum) | Ask for a price |
|
NA202027000 | 36 | Hose flange gasket | Ask for a price |
|
NA219105000 | 37 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA325132000 | 38 | Grey container | Ask for a price |
|
NA206135000 | 39 | Toggle fastener | Ask for a price |
|
NA308028000 | 40 | Drum liner (for assembly view only) | Ask for a price |
|
NA237048000 | 41 | Drum liner (for assembly view | Ask for a price |
|
NA401447000 | 42 | Drum base (painted grey) | Ask for a price |
|
NA207030000 | 43 | White filter assembly | Ask for a price |
|
NA219330000 | 44 | M5 x 12mm long pozi pan countrsunk screw | Ask for a price |
|
NA219045000 | 45 | M5 x 16mm long pozi pan sems screw | Ask for a price |
