Spare Parts for:

Nacecare

20" Dual Speed Floor Machine NA 20DS

#NA802524400

Dual Speed floor machine20"

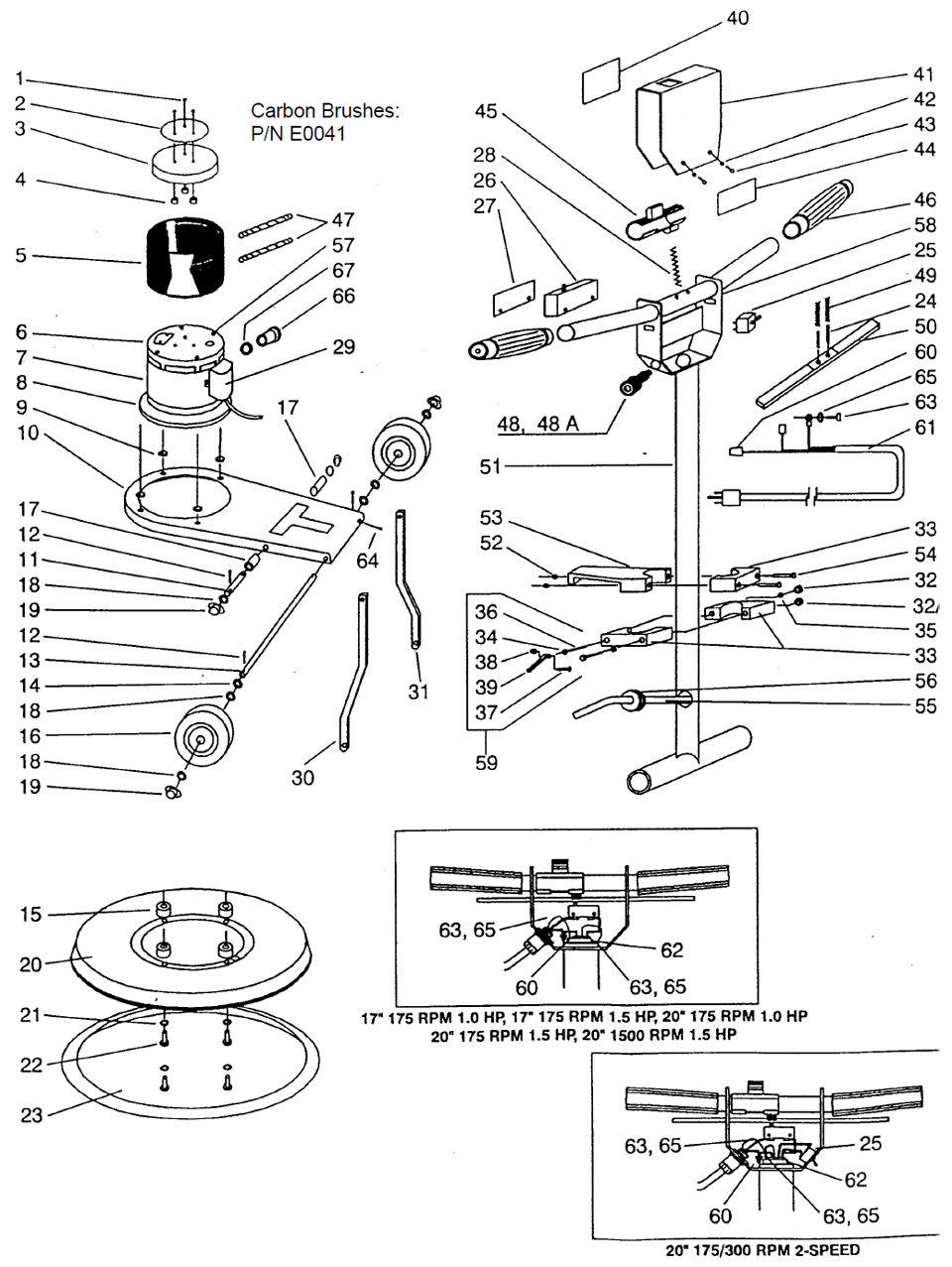

Parts Schema

General Assembly (0001) Serial Numbers 0001 and higher

SKU#	Label on drawing	Description	Ask for a price
NAH00020000	1	Screw 10-24 x 1.00''	Ask for a price
NAH00030000	4	Spacer Drip Cover	Ask for a price
NAS00160000	5	Cover Motor-Screen	Ask for a price
NAE00050000	6	Mtr/Gear Unit Asm. 115/60, 1 HP	Ask for a price
NAH00050000	9	Lockwasher 5/16" ID, Ext Tooth	Ask for a price
NAW0001P000	10	Frame Floor Machine	Ask for a price
NAM0006P000	11	Shaft Handle	Ask for a price
NAH00060000	12	Cotter Pin	Ask for a price
NAKIT201700	13	Axel wheel kit	Ask for a price
NAH00070000	14	Spring Washer	Ask for a price
NAM00040000	15	Spacer Frame/Brush Cover	Ask for a price
NAC00040000	16	Wheel 5" dia	Ask for a price
NAM00030000	17	Spacer	Ask for a price
NAH00080000	18	Steel Washer 33/64" X 7/8"	Ask for a price
NAH00090000	19	NutPush .50"	Ask for a price
NAH00100000	21	Lockwasher 5/16" ID	Ask for a price
NAH00110000	22	Screw 5/16" X 2 SocHD	Ask for a price
NA0C0002000	23	Bumper 17" Black	Ask for a price
NAH00120000	24	Roll Pin	Ask for a price
NAE00060000	25	Switch Hi-Lo	Ask for a price
NAKIT100500	26	Switch, On/Off	Ask for a price
NAH00130000	27	lnsulation Switch	Ask for a price
NAH00140000	28	Spring	Ask for a price
NAS0006P000	30	Connecting Leg - Left	Ask for a price
NAS0005P000	31	Connecting Leg - Right	Ask for a price
NAH00150000	32	Nut 3/8" - 16 Hex Nyloc Standard	Ask for a price
NAH00570000	32A	Nut 3/8" - 16 Hex Nyloc Thin	Ask for a price
NAC0006P000	33	Clamp Handle Lock	Ask for a price
NAH0001P000	34	Washer Hardened Slotted	Ask for a price
NAH00160000	35	Washer 3/8"	Ask for a price
NAH00170000	36	Stud Clamp	Ask for a price
NAH00180000	37	Rivet 5/16" X 1.25 Long Rd Head	Ask for a price
NAH00190000	38	Push Nut 5/16''	Ask for a price
NAM0001P000	39	Cam. HandleLock	Ask for a price
NAKIT3008RY	41	Switch box cover kit	Ask for a price
NAH00200000	42	Lockwasher # 10 Ext Tooth	Ask for a price
NAH00400000	43	Screw 10-24 X .50 Pan Head	Ask for a price
NAL00050000	44	Label Warning	Ask for a price
NAC00030000	45	Switch Safety	Ask for a price
NAC00070000	46	Handle Grip Black	Ask for a price
NAH00490000	47	Spring Clamp	Ask for a price
NAH00210000	48	Strain Relief Power Cord	Ask for a price
NAH00220000	48A	Nut Strain Relief	Ask for a price
NAH00230000	49	Spring Trigger	Ask for a price
NAS0008P000	50	Trigger	Ask for a price
NAW0002P000	51	Handle Weldment	Ask for a price
NAH00240000	52	Nut 3/8" - 16	Ask for a price
NAC0008P000	53	Cord Hook Body	Ask for a price
NAH00250000	54	Screw 3/8"-16 X 2.0 Socket Cap	Ask for a price
NAE00120000	55	In-Handle Cord 14-4	Ask for a price
NAH00280000	56	Grommet	Ask for a price
NAE00100000	58	Handle Asm Complete	Ask for a price
NAH00300000	59	Cam Lock Asm lncl 34,36,37,38,39	Ask for a price
NAH00270000	60	Nut Wire	Ask for a price
NAE00030000	61	Power Cord, 14-3 ST, 50 FT Long	Ask for a price
NAH00470000	62	Clamp, Power Cord	Ask for a price
NAH00400000	63	Screw 10-24 X .50 Pan Head	Ask for a price
NAH00310000	64	Cotter Pin	Ask for a price
NAH00200000	65	Lockwasher # 10 Ext Tooth	Ask for a price
NAH00500000	66	Strain Relief	Ask for a price
NAH00220000	67	Nut Strain Relief	Ask for a price
