Spare Parts for:

Nacecare

JS 1600C Power Steamer Machine

#NA802513400

Power Steamer JS1600C is a super heated dry steam cleaning machine that dissolves and emulsifies grease, mold and grime build-ups, vaporizing and killing the bacteria from all types of surfaces and equipment.

Ask for a price

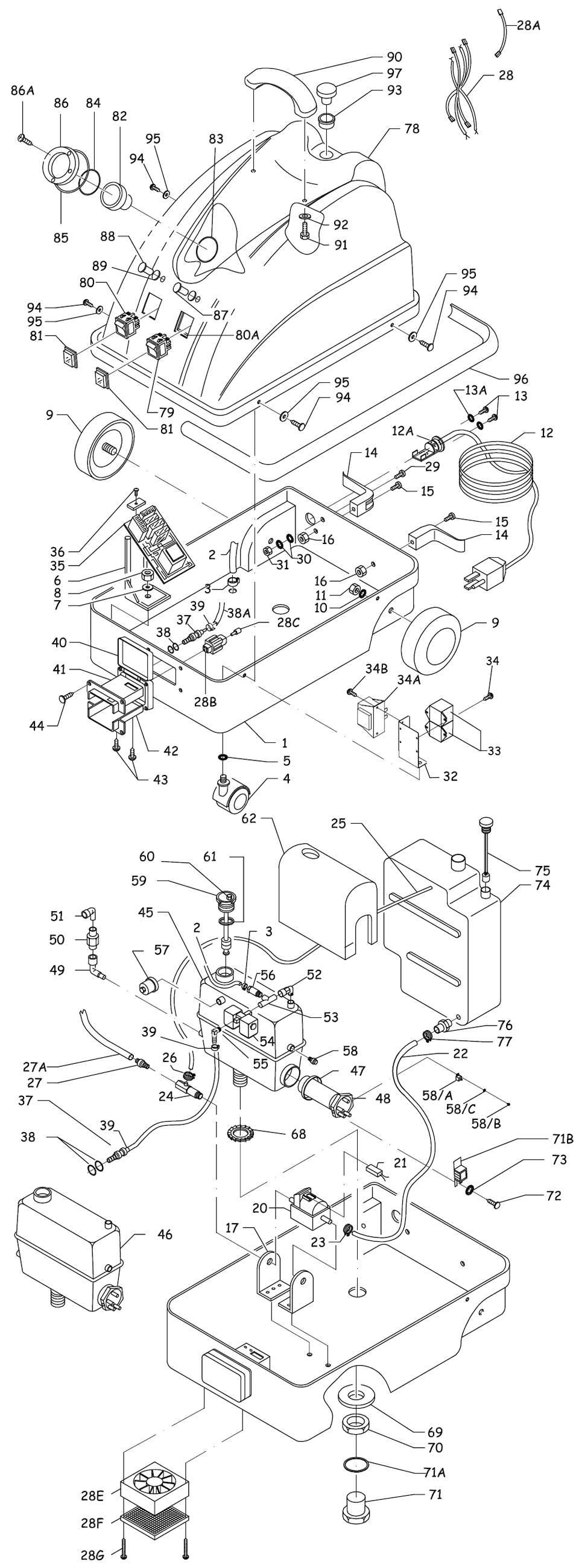

Parts Schema

General Assembly (55113) Serial Numbers 55113 and higher

SKU#	Label on drawing	Description	Ask for a price
NACA1161F00	1	Chassis gal	Ask for a price
NAPG5300200	2	Hose	Ask for a price
NAPG5209000	3	Clamp	Ask for a price
NA000PG5401	4	Wheel ø35 for JS1600C	Ask for a price
NAVI7306900	5	Washer	Ask for a price
NAPG5034000	6	Mount base	Ask for a price
NAVI7329000	7	Washer flat	Ask for a price
NAVI7342000	8	Nut	Ask for a price
NAPG5407000	9	Wheel ø35	Ask for a price
NAVI7306000	10	Washer	Ask for a price
NAVI7342000	11	Nut	Ask for a price
NAPE2182000	12	Supply wiring	Ask for a price
NAPE2002000	12A	Terminal	Ask for a price
NAVI7101000	13	Screw	Ask for a price
NAVI7319000	13A	Lock washer m3	Ask for a price
NA101080000	14	Handle	Ask for a price
NAVI7118000	15	Screw	Ask for a price
NAVI7201000	16	Nut	Ask for a price
NARA3056000	17	Mount base pump	Ask for a price
NAPE2416000	20	Pump	Ask for a price
NAPE2408000	21	Thermal cut out 100° c	Ask for a price
NAPG5300200	22	Hose	Ask for a price
NAPG5247000	23	Clamp	Ask for a price
NAPE2415000	24	Bleeder valve for pump	Ask for a price
NAPG5300200	25	Hose	Ask for a price
NAPG5247000	26	Clamp	Ask for a price
NARA3183000	27	Straight fitting	Ask for a price
NARA3201000	27A	Hose	Ask for a price
NAPE20330V2	28	Comp. Wiring	Ask for a price
NAPE2U92400	28A	Integration cable	Ask for a price
NAPE2177000	28B	Plug body	Ask for a price
NAPE2012000	28C	Contact pin	Ask for a price
NAPE4028400	28E	Cooling fan	Ask for a price
NAPE4001600	28F	Protection grill for fan	Ask for a price
NAVI7401600	28G	Screw m4x30	Ask for a price
NAVI7180000	29	Screw	Ask for a price
NAVI7318000	30	Washer	Ask for a price
NAVI7212000	31	Nut	Ask for a price
NARA5063900	32	Mount base	Ask for a price
NAPE2009800	33	Relay	Ask for a price
NAVI7103000	34	Screw	Ask for a price
NAPE2054400	34A	Transformer 6va 110v/12 c.c.	Ask for a price
NAVI7103000	34B	Screw	Ask for a price
NAPE2343000	35	Electronic board	Ask for a price
NAVI7130000	36	Screw	Ask for a price
NAUG0002000	37	Round male nozzle	Ask for a price
NAPG5142000	38	O-ring	Ask for a price
NAPG5301500	38A	Hose	Ask for a price
NAPG5250500	39	Clamp	Ask for a price
NAPP0008000	40	Socket protection cover	Ask for a price
NA120101000	41	Top socket cover	Ask for a price
NA120102000	42	Bottom socket cover	Ask for a price
NAVI7105000	43	Rapid-fix screw zn tc 3,9x16	Ask for a price
NAVI7341000	44	Screw	Ask for a price
NA090237V30	45	Complete boiler	Ask for a price
NA990031000	46	Boiler w/heating element	Ask for a price
NAPG5103000	47	Heating elem. Gasket	Ask for a price
NAPE2502000	48	Heating elem. 1500w 110v	Ask for a price
NARA3147000	49	Elbow valve	Ask for a price
NARA3408000	50	Non return valve	Ask for a price
NARA3167000	51	Elbow valve	Ask for a price
NARA3147000	52	Elbow valve	Ask for a price
NARA3103000	53	3-ways valve 1/8mmf	Ask for a price
NAPE2337700	54	Solenoid valve	Ask for a price
NARA3037000	55	Tube coupler	Ask for a price
NARA3411900	56	Pressure valve 7.5 bar	Ask for a price
NAPE2411UL0	57	Pressure switch 16a 250v	Ask for a price
NAPE2303000	58	Reset thermostat	Ask for a price
NAPE2344000	58A	Reset thermostat	Ask for a price
NAVI7130000	58B	Screw	Ask for a price
NAVI7318000	58C	Washer	Ask for a price
NARA3321700	59	Brass cap +probe	Ask for a price
NARA3406400	60	Sicurity valve	Ask for a price
NAPG5103300	61	Gasket	Ask for a price
NAIS4006000	62	Boiler insulation	Ask for a price
NAVI7335000	68	Toothed washer	Ask for a price
NAVI7336000	69	Washer	Ask for a price
NAVI7203000	70	Nut	Ask for a price
NARA3163000	71	Drain cap	Ask for a price
NAPG5116400	71A	O-ring	Ask for a price
NAPE2310000	71B	Thermostat	Ask for a price
NAVI7130000	72	Screw	Ask for a price
NAVI7318000	73	Washer	Ask for a price
NACA1224000	74	Water tank gal	Ask for a price
NAPE2245000	75	Reed switch float	Ask for a price
NARA3140000	76	Elbow tube coupler	Ask for a price
NAPG5247000	77	Clamp	Ask for a price
NACA116A700	78	Plastic body cover	Ask for a price
NAPE227C000	79	Switch 16a	Ask for a price
NAPE227R000	80	Switch 16a	Ask for a price
NARA3057000	80A	Switch bracket gal	Ask for a price
NAPG5021000	81	Rubber switch cover	Ask for a price
NAPE2401600	82	Hour meter	Ask for a price
NAPG5123000	83	O-ring	Ask for a price
NAPG5115000	84	O-ring	Ask for a price
NAPG5123700	85	O-ring	Ask for a price
NA1200117V1	86	Thermometer frame	Ask for a price
NAVI7105000	86A	Rapid-fix screw zn tc 3,9x16	Ask for a price
NAPE221S700	87	Red indicator light	Ask for a price
NAPE222S700	88	Green indicator light	Ask for a price
NAPG5106000	89	O-ring 9,25x1,78 nbr black	Ask for a price
NA101050000	90	Black handle	Ask for a price
NAVI7167000	91	Screw	Ask for a price
NAVI7320000	92	Washer	Ask for a price
NAPG5339000	93	Fairlead	Ask for a price
NAVI7101000	94	Screw	Ask for a price
NAVI7325000	95	Washer	Ask for a price
NAPG5314000	96	Bumper	Ask for a price
NARA3313000	97	Cap	Ask for a price
