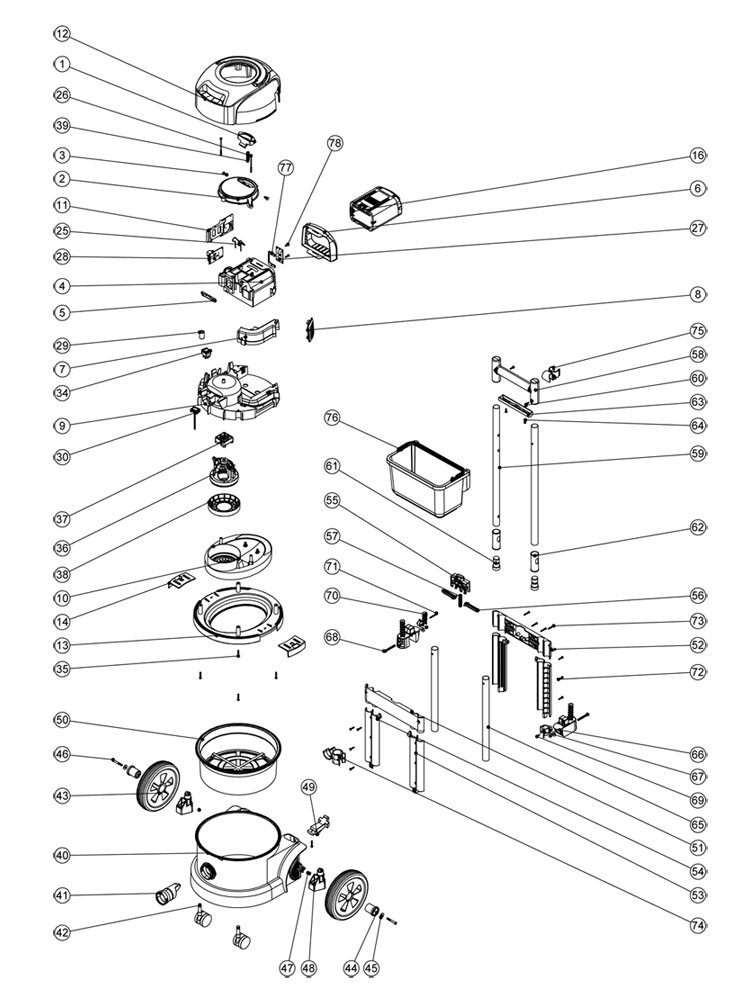

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA237604000 | 1 | Battery release catch | Ask for a price |
|
NA237603000 | 2 | Reeler cap | Ask for a price |
|
NA237597000 | 3 | Battery release toggle - hinge pin | Ask for a price |
|
NA237601000 | 4 | Battery pod | Ask for a price |
|
NA237641000 | 5 | Battery release spring retainer | Ask for a price |
|
NA237602000 | 6 | Battery pod fascia | Ask for a price |
|
NA237600000 | 7 | Exhaust duct | Ask for a price |
|
NA237640000 | 8 | Exhaust air duct fascia | Ask for a price |
|
NA237598000 | 9 | Motor housing | Ask for a price |
|
NA237599000 | 10 | Motor adaptor | Ask for a price |
|
NA237642000 | 11 | Pcb mount & fan housing | Ask for a price |
|
NA326092000 | 12 | Pvr cover + handle processed for nbv battery vac | Ask for a price |
|
NA326066000 | 13 | Hard edge bottom motor housing processed for nbv battery vac | Ask for a price |
|
NA237115000 | 14 | Nrv hard edge toggle | Ask for a price |
|
NA216655000 | 25 | Battery release spring | Ask for a price |
|
NA291049000 | 26 | No8 x 2.95 tx-pn-plast screw | Ask for a price |
|
NA230223000 | 27 | Battery vac connecting pcb | Ask for a price |
|
NA208559000 | 28 | Power control pcb. Synchronous buck converter | Ask for a price |
|
NA230097000 | 29 | Axial ferrite bead | Ask for a price |
|
NA208625000 | 30 | Led display | Ask for a price |
|
NA220582000 | 34 | Green rocker switch (white print) 0-1 | Ask for a price |
|
NA902326000 | 36 | 36V DC 1 STAGE MOTOR | Ask for a price |
|
NA237617000 | 37 | Motor top mount | Ask for a price |
|
NA237616000 | 38 | Motor gasket | Ask for a price |
|
NA216465000 | 39 | 11mm coil spring | Ask for a price |
|
NA237177000 | 40 | 220 drum - red (trolley vac) | Ask for a price |
|
NA237119000 | 41 | Front fit bag connector | Ask for a price |
|
NA204111000 | 42 | 50mm twin wheel castor with pu tyre wv370-2 | Ask for a price |
|
NA204104000 | 43 | 8 inch wheel | Ask for a price |
|
NA237120000 | 44 | Hub cap | Ask for a price |
|
NA219008000 | 45 | M6 form g washer | Ask for a price |
|
NA219881000 | 46 | M6 x 45mm socket button head screw | Ask for a price |
|
NA219088000 | 47 | M6 nylon insert nut | Ask for a price |
|
NA237319000 | 48 | Symetric hub support | Ask for a price |
|
NA237121000 | 49 | Troley vac ball hitch | Ask for a price |
|
NA207109000 | 50 | 12 inch filter (double bottom) 160grm sms | Ask for a price |
|
NA325813000 | 51 | Cross bar front + inserts (trolley vac) | Ask for a price |
|
NA237152000 | 52 | Cross bar rear (trolley vac) | Ask for a price |
|
NA237150000 | 53 | Handle upright fake screw (trolley vac) | Ask for a price |
|
NA237149000 | 54 | Handle upright holes (trolley vac) | Ask for a price |
|
NA237148000 | 55 | Plunger button (trolley vac) | Ask for a price |
|
NA237146000 | 56 | Plunger pin (trolley vac) | Ask for a price |
|
NA291009000 | 57 | Spring (trolley vac) | Ask for a price |
|
NA237157000 | 58 | Handle body (trolley vac) | Ask for a price |
|
NA391360000 | 59 | 220 moving tube (trolley vac) | Ask for a price |
|
NA219472000 | 60 | M4 x 16mm long pozi pan sems screw | Ask for a price |
|
NA237147000 | 61 | Slider end stop (trolley vac) | Ask for a price |
|
NA237145000 | 62 | Slider sleeve (trolley vac) | Ask for a price |
|
NA237158000 | 63 | Handle cap (trolley vac) | Ask for a price |
|
NA219101000 | 64 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Ask for a price |
|
NA391361000 | 65 | 220 fixed tube (trolley vac) | Ask for a price |
|
NA237156000 | 66 | Bucket mount (trolley vac) | Ask for a price |
|
NA237155000 | 67 | Bucket clip (trolley vac) | Ask for a price |
|
NA219315000 | 68 | M6 x 50mm long bolt | Ask for a price |
|
NA219107000 | 69 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA237166000 | 70 | Bucket clip in peg (trolley vac) | Ask for a price |
|
NA219848000 | 71 | No6 x 1 3/8 inch long pozi pan screw | Ask for a price |
|
NA291005000 | 72 | No6 x 5/8 inch long pozi pan plastite screw japaned | Ask for a price |
|
NA291006000 | 73 | No6 x 1 inch long pozi pan plastite screw japaned | Ask for a price |
|
NA237345000 | 74 | Pvt hose clip | Ask for a price |
|
NA237476000 | 75 | Pvt wand clip | Ask for a price |
|
NA360000000 | 76 | 5l red swing caddy assy | Ask for a price |
|
NA392315000 | 77 | Pcb spacer | Ask for a price |
|
NA219105000 | 78 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
