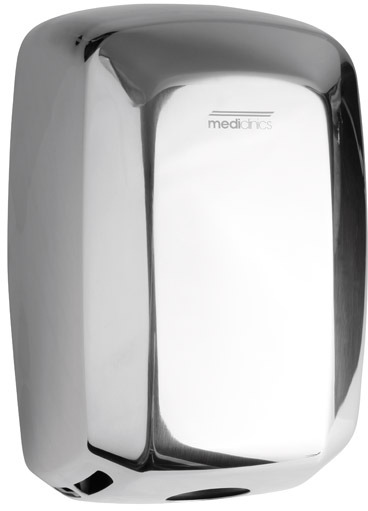

Comac Machflow Stainless Steel Automatic Hand Dryer

MACHFLOW Stainless Steel Automatic Hand Dryer

MACHFLOW stainless steel surface mounted hand dryer is vandal resistant. The dryer is a universal voltage unit. The back base is a fire resistant UL V0 plastic base and has 4 holes 7/32” for wall mounting, including silent-blocks to damp mechanical vibrations. The hand dryer is activated through an infrared electronic sensor and is automatically turn off two second after hands are removed. Sensor has a vandal-resistant polycarbonate viewing window and the detection distance can be regulated from 2” to 8”.

General Description:

• Warm air hand dryer
• Universal voltage
• Powerful operation
• Vandal-proof
• Suitable for high traffic facilities

Components and Materials:

• Cover fixed to the base by means of 2 vandal-proof lock screws.
• Fire resistant UL V0 plastic base, with 4 7/32” holes for wall mounting. It includes silent-blocks to damp mechanical vibrations.
• Fire resistant plastic UL V0 fan scroll.
• High pressure universal brush motor, 18,000-26,000 rpm, A class. RPM may be adjusted manually by means of a potentiometer. The motor includes a 60 seconds vandal thermal cut-off.
• 250 Watt waved wire nickel-chromium heating element that incorporates a resettable thermal cut-off at 66 ºC, after 60 seconds of continuous use.
• Internal UL plastic housing components to be flame retardant type
• Automatic disconnection system after 60 seconds of continuous use
• Fully adjustable (5 to 20 cm) IR electronic detection sensor by means of a potentiometer
• Sensors come with a vandal-resistant polycarbonate viewing window
