TP4X Portable Upholstery and Carpet Extractor 4 Gal #NA802515000

Spare Parts for:

TP4X Portable Upholstery and Carpet Extractor 4 Gal
#NA802515000


Nacecare's TP4X carpet and upholstery extractor features two detachable 2 gal tanks. The set includes a 4" plastic handle.

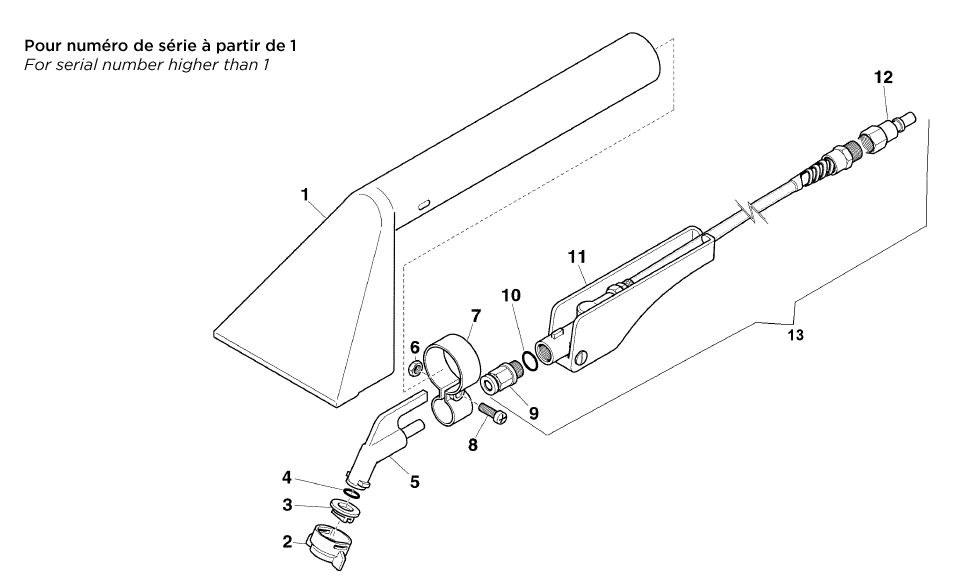

Parts Schema
4" HAND TOOL PLASTIC (1112PPE) Serial Numbers 0001 and higher
Image SKU# Label on drawing Description Ask for a price
NA113280000 1 Plastic body 4” Ask for a price
NA157180000 2 Nut for nozzle Ask for a price
NA157050100 3 Brass nozzle 01/110 Ask for a price
NA153209000 4 O-ring Ask for a price
NA113281000 5 Elbow Ask for a price
NA155250000 6 Nut d.5 Ask for a price
NA123190000 7 Valve holder Ask for a price
NA155040000 8 SCREW TC+ 5x20 Ask for a price
NA117500000 9 Quick connect d.8 – m.1/4 Ask for a price
NA151370000 10 O-ring for quick disconnect Ask for a price
NA15689PE00 12 Quick disconnect male – att. F-1/4” – metal Ask for a price
NA123200CPE 13 Complete valve, with coupling 689-pe and hose nipple 764 Ask for a price
