Spare Parts for:

Nacecare

TP8X Portable Carpet Extractor 8 Gal

#NA802515200

Nacecare's TP8X carpet extractor features two detachable 4-gallon tanks for easy transport. The set includes a stainless steel handle with 3 jets for deep carpet cleaning.

Ask for a price

Parts Schema

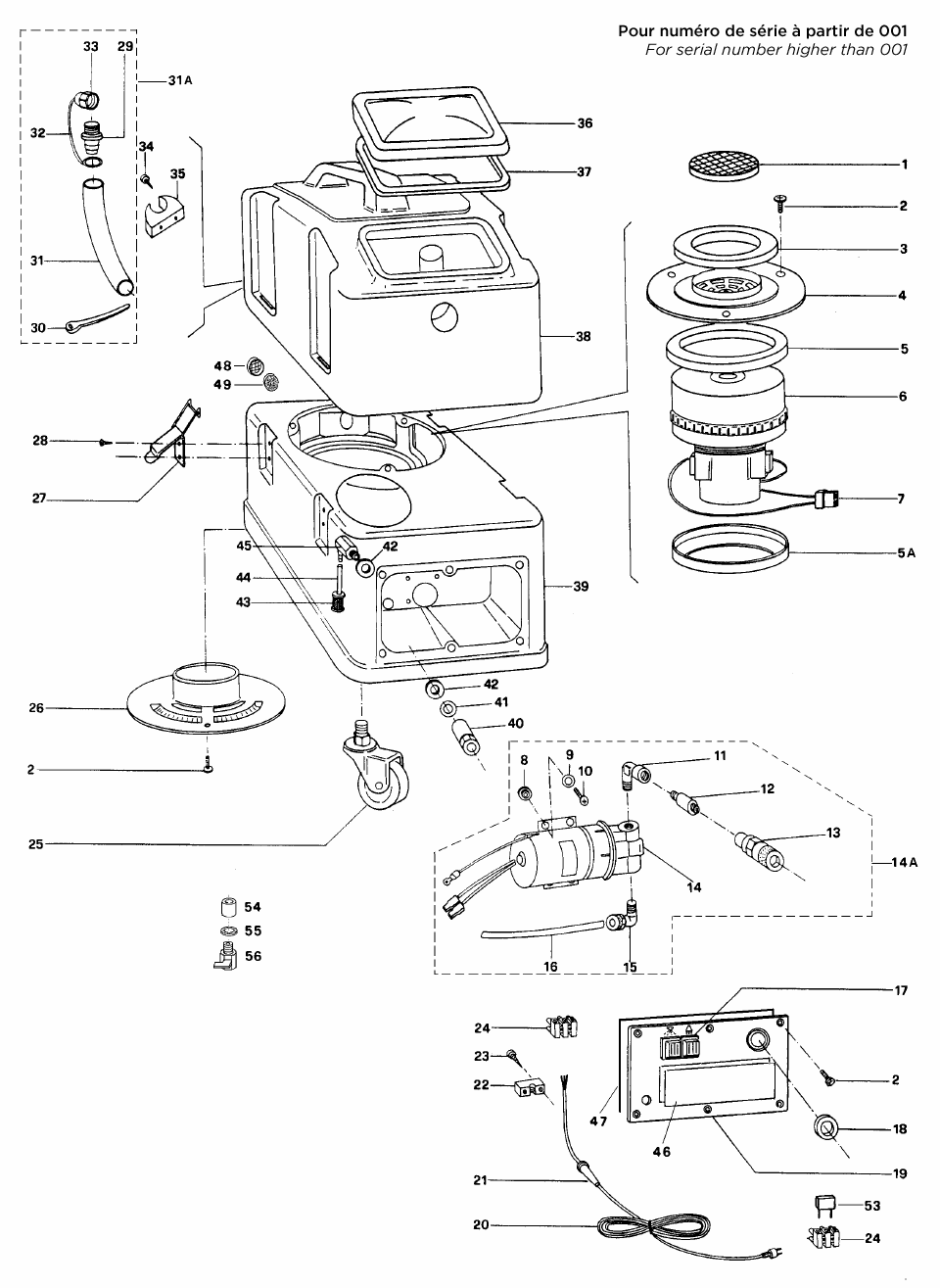

Schematic TP8X (9701) Serial Numbers 9701 and higher

SKU#	Label on drawing	Description	Ask for a price
NA151460000	1	Filter	Ask for a price
NA015536000	2	Screw	Ask for a price
NA151350000	3	Gasket	Ask for a price
NA151360000	4	Upper flange	Ask for a price
NA015812000	5	Gasket 10mm	Ask for a price
NA158110000	5A	Gasket 5mm	Ask for a price
NA015820000	6	2 stages motor 1000w 110v 50/60 hz	Ask for a price
NA152340000	7	Connector	Ask for a price
NA152500000	7	Male electrical terminal	Ask for a price
NA157360000	8	Vibration damping	Ask for a price
NA155460000	10	Screw 5x25	Ask for a price
NA015720000	11	Elbow	Ask for a price
NA015753000	12	Extension for metal coupl.	Ask for a price
NA15687PE00	13	Female quick	Ask for a price
NA151370000	13	O-ring for quick disconnect	Ask for a price
NA015644000	14	Pump 100-120v 100 psi	Ask for a price
NA15644C000	14A	Pump 100-120v 100 psi with fittings	Ask for a price
NA156220000	15	Elbow	Ask for a price
NA157460000	16	Rilsan pipe	Ask for a price
NA015217000	17	Switch	Ask for a price
NA151630000	18	Bush	Ask for a price
NA151480000	19	Panel	Ask for a price
NA152150000	20	Cable 3 x 14 awg x 15m	Ask for a price
NA152370000	21	Fairlead	Ask for a price
NA152380000	22	Cable lock	Ask for a price
NA155370000	23	Screw	Ask for a price
NA152360000	24	Connecting terminal	Ask for a price
NA151150000	25	Wheel	Ask for a price
NA151410000	26	Lower flange	Ask for a price
NA151420000	27	Coupler	Ask for a price
NA155420000	28	Screw	Ask for a price
NA015161000	29	Hose nipple	Ask for a price
NA015541000	30	Tie	Ask for a price
NA15358C000	31A	Complete drain hose - #29-31, #32-33	Ask for a price
NA015162000	32	Tie	Ask for a price
NA015159000	33	Cap for TP8X Extractor	Ask for a price
NA155440000	34	Screw	Ask for a price
NA151600000	35	Clip	Ask for a price
NA151330000	36	Cover	Ask for a price
NA15133C000	36	Cover with gasket	Ask for a price
NA151340000	37	Gasket	Ask for a price
NA15149A000	38	Blue upper tank	Ask for a price
NA15150A000	39	Blue lower tank	Ask for a price
NA157140000	40	Quick disconnect - female	Ask for a price
NA155400000	41	Metal washer	Ask for a price
NA151470000	42	Neoprene washer	Ask for a price
NA156080000	43	Filter	Ask for a price
NA157340000	44	Rilsan pipe	Ask for a price
NA157020000	45	Connecting part	Ask for a price
NA151560000	46	Panel label	Ask for a price
NA151860000	47	Panel gasket	Ask for a price
NA151163800	48	Plastic filter	Ask for a price
NA152024000	49	Filter ppi45 d.40	Ask for a price
NA152350000	53	Motor radio interference suppressor	Ask for a price
NA157520000	54	Connecting part	Ask for a price
NA155210000	55	Locking washer diam.12mm	Ask for a price
NA155751000	56	Drain valve	Ask for a price
