Upright Vacuum 14" HX 14 #NA802902000

Spare Parts for:

Upright Vacuum 14" HX 14
#NA802902000


Upright Dry Vacuum HX 14 of 14" working width. Can go under beds and furniture. Easy to transport.
Parts Schema

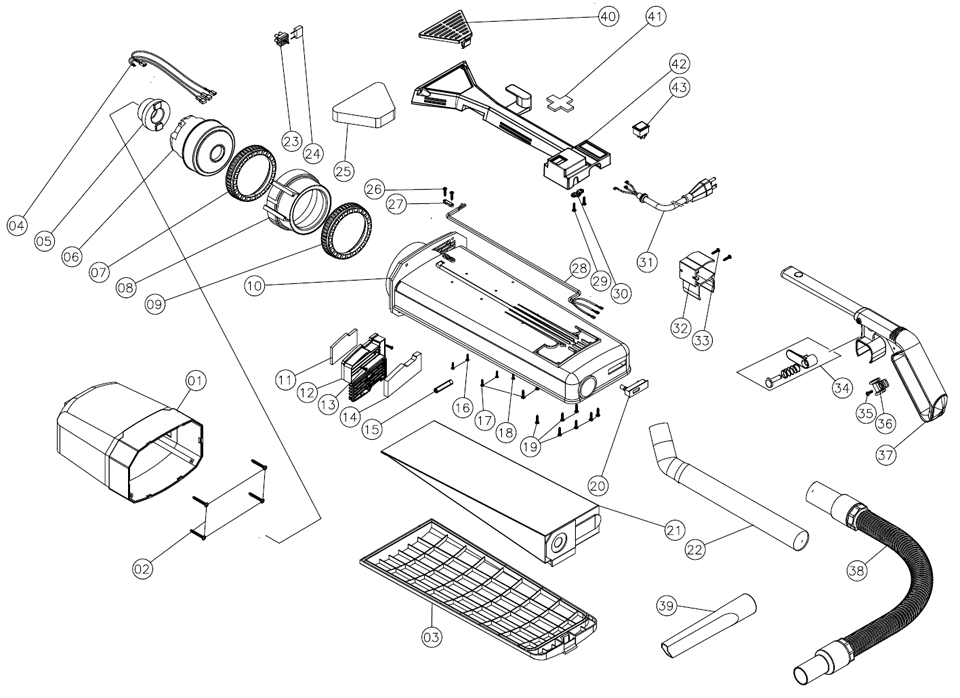

General Assembly HX14 (1401 Serial Numbers 1401 and higher
Image SKU# Label on drawing Description Ask for a price
NA801131000 2 Included in screw set Ask for a price
NA801132000 3 Blue/black complete shutter Ask for a price
NA801133000 4 Motor wiring Ask for a price
NA801134000 5 Motor support Ask for a price
NA801013000 6 120v vacuum motor Ask for a price
NA801135000 7 Motor front ring Ask for a price
NA801136000 8 Spacer Ask for a price
NA801011000 9 Motor front wiring Ask for a price
NA801010000 11 Motor protection filter Ask for a price
NA801009000 12 Green holder for internal filter Ask for a price
NA801131000 13 Included in screw set Ask for a price
NA801007000 14 Internal filter Ask for a price
NA801008000 15 10 green sticks Ask for a price
NA801131000 16 Included in screw set Ask for a price
NA801131000 17 Included in screw set Ask for a price
NA801131000 18 Included in screw set Ask for a price
NA801131000 19 Included in screw set Ask for a price
NA801142000 20 Bag full indicator Ask for a price
NA801130000 21 Paper bags 10 pack Ask for a price
NA801143000 22 Wand Ask for a price
NA801065000 23 Complete 2 pole terminal Ask for a price
NA801002000 24 Suppressor Ask for a price
NA801144000 25 Filter Ask for a price
NA801131000 26 Included in screw set Ask for a price
NA801146000 27 Black cord guide Ask for a price
NA801131000 29 Included in screw set Ask for a price
NA801146000 30 Black cord guide Ask for a price
NA801149000 31 Cable Ask for a price
NA801150000 32 Hose fastener Ask for a price
NA801131000 33 Included in screw set Ask for a price
NA801152000 34 Upper cord coiler set Ask for a price
NA801153000 35 Included in screw set Ask for a price
NA801091000 36 Black cord slide Ask for a price
NA801154000 38 Stretch hose Ask for a price
NA801084000 39 Black crevice tool Ask for a price
NA801155000 41 Small cross Ask for a price
NA801156000 42 Handle bar cover Ask for a price
NA801157000 43 Switch 15a Ask for a price
