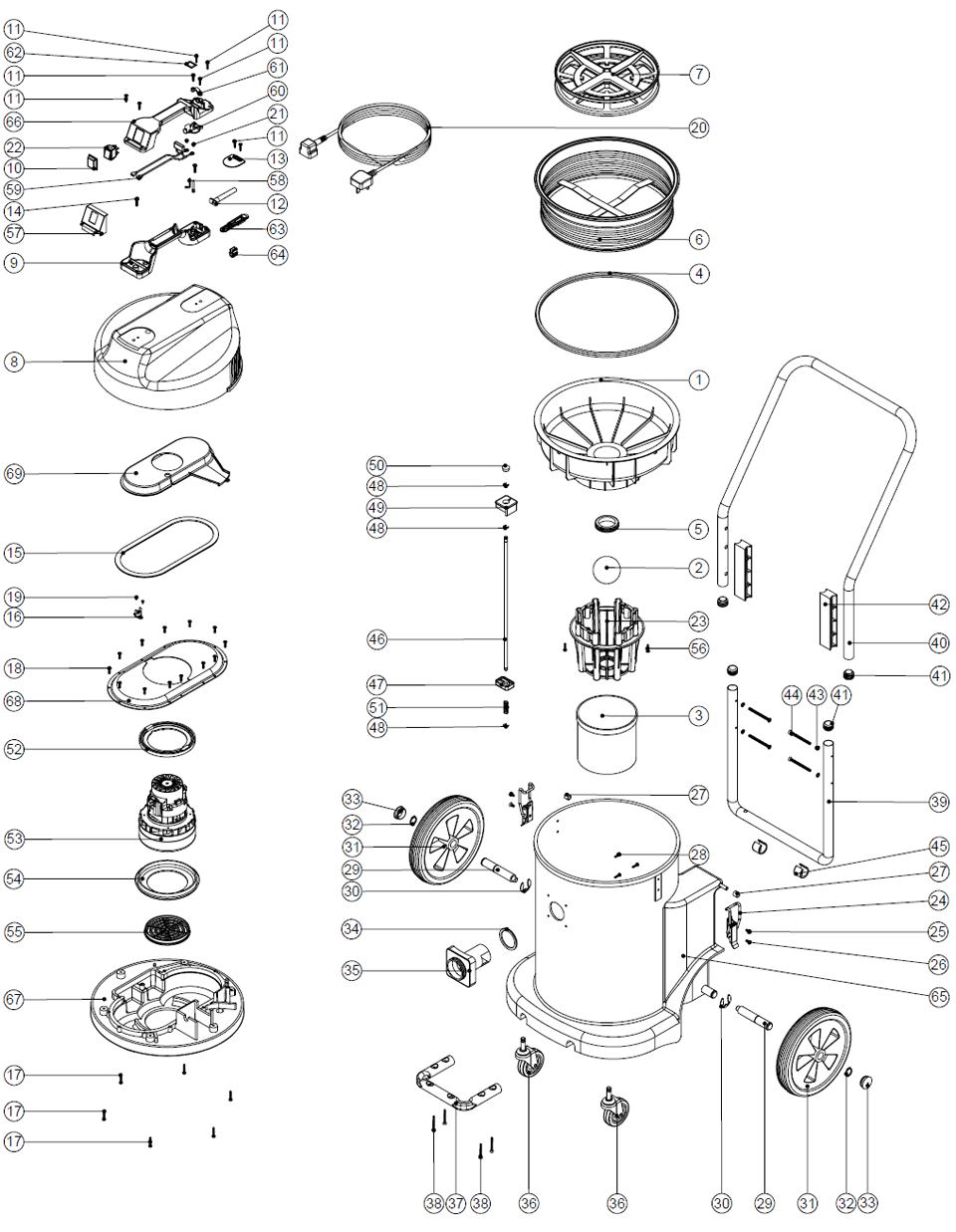

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA225101000 | 1 | Float moulding | Ask for a price |
|
NA206026000 | 2 | Polyprop ball | Ask for a price |
|
NA207073000 | 3 | Gauze filter | Ask for a price |
|
NA202036000 | 4 | Float mould extrusion seal | Ask for a price |
|
NA220235000 | 5 | Float grommet | Ask for a price |
|
NA207030000 | 6 | White filter assembly | Ask for a price |
|
NA209100000 | 7 | Filter grid double | Ask for a price |
|
NA227043000 | 8 | Cover moulding | Ask for a price |
|
NA320686000 | 9 | Handle base moulding | Ask for a price |
|
NA206573000 | 10 | Switch cover (plug handle) | Ask for a price |
|
NA219107000 | 11 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA220923000 | 12 | Stress relief | Ask for a price |
|
NA220131000 | 13 | Cable clamp | Ask for a price |
|
NA219546000 | 14 | M5 x 20mm long pozi pan sems screw | Ask for a price |
|
NA202012000 | 15 | Gasket | Ask for a price |
|
NA220532000 | 16 | Thermostat | Ask for a price |
|
NA219369000 | 17 | No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW | Ask for a price |
|
NA021937000 | 18 | No8 X 5/8 INCH LONG PLASTITE STAINLESS STEEL SCREW | Ask for a price |
|
NA219491000 | 19 | M5 x 3mm long pozi pan taptite screw | Ask for a price |
|
NA236009000 | 20 | 10.0m x 1.00mm x 2 core nucable (uk plug) | Ask for a price |
|
NA236013000 | 10.0m x 1.00mm x 2 core nucable (euro plug) | Ask for a price | |
|
NA236017000 | 10.0m x 1.00mm x 2 core nucable (swiss plug) | Ask for a price | |
|
NA236021000 | 10.0m x 1.00mm x 2 core nucable (south african plug) | Ask for a price | |
|
NA236029000 | 10.0m x 1.00mm x 2 core nucable (australian plug) | Ask for a price | |
|
NA236065000 | 10.0m x 2 core x 2.5mm cable plus 32amp plug hardwired machines | Ask for a price | |
|
NA219090000 | 21 | M4 x 8mm long pozi pan sems screw | Ask for a price |
|
NA220843000 | 22 | Blue rocker switch | Ask for a price |
|
NA225130000 | 23 | Moulded float cage | Ask for a price |
|
NA206135000 | 24 | Toggle fastener | Ask for a price |
|
NA219047000 | 25 | M5 x 10mm long pozi pan sems screw | Ask for a price |
|
NA219330000 | 26 | M5 x 12mm long pozi pan countrsunk screw | Ask for a price |
|
NA21985V000 | 27 | Spacer | Ask for a price |
|
NA219105000 | 28 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA206137000 | 29 | Stub axle | Ask for a price |
|
NA219306000 | 30 | E-clip | Ask for a price |
|
NA204028000 | 31 | 10 inch wheel | Ask for a price |
|
NA219308000 | 32 | Circlip | Ask for a price |
|
NA206131000 | 33 | Black plastic cap | Ask for a price |
|
NA202027000 | 34 | Hose flange gasket | Ask for a price |
|
NA206117000 | 35 | Flange | Ask for a price |
|
NA204060000 | 36 | 3 inch castor | Ask for a price |
|
NA303127000 | 37 | Tool mounting bar | Ask for a price |
|
NA219316000 | 38 | No10 x 43mm long pozi pan counter sunk plastite screw | Ask for a price |
|
NA303128000 | 39 | Lower handle | Ask for a price |
|
NA20637V000 | 41 | 25.4mm tube end stop | Ask for a price |
|
NA206128000 | 42 | Handle block spacer | Ask for a price |
|
NA219423000 | 43 | M6 countersunk lock washer | Ask for a price |
|
NA219422000 | 44 | M6 x 70mm long pozi pan countersunk screw | Ask for a price |
|
NA206295000 | 45 | Plastic saddle foot | Ask for a price |
|
NA206133000 | 46 | Locking bar | Ask for a price |
|
NA206127000 | 47 | Locking bar support | Ask for a price |
|
NA219307000 | 48 | E clip | Ask for a price |
|
NA206126000 | 49 | Locking bar knob | Ask for a price |
|
NA206132000 | 50 | Black plastic cap | Ask for a price |
|
NA219312000 | 51 | Compression spring | Ask for a price |
|
NA227925000 | 52 | Top motor gasket | Ask for a price |
|
NA205411000 | 53 | 240v 2 stage d.i bypass acustek motor (bl21104)(marked 230v) | Ask for a price |
|
NA202005000 | 54 | Motor bottom gasket | Ask for a price |
|
NA206010000 | 55 | Fan guard | Ask for a price |
|
NA219568000 | 56 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
|
NA227635000 | 57 | Switch mounting bracket (1 switch) | Ask for a price |
|
NA206562000 | 58 | Contact pin | Ask for a price |
|
NA220142000 | 59 | Suppressor assembly | Ask for a price |
|
NA227632000 | 60 | Terminal cover & clamp | Ask for a price |
|
NA227564000 | 61 | Plug location clamp | Ask for a price |
|
NA202000000 | 62 | Terminal gasket | Ask for a price |
|
NA227636000 | 63 | Strain relief | Ask for a price |
|
NA227637000 | 64 | Cable clip | Ask for a price |
|
NA500027000 | 65 | Container blue WV 900 w/ Drain | Ask for a price |
|
NA300031000 | 65 | Processed red plastic container | Ask for a price |
|
NA325054000 | 65 | Processed green plastic container | Ask for a price |
|
NA325055000 | 65 | Processed yellow plastic container | Ask for a price |
|
NA325130000 | 65 | Processed grey plastic container | Ask for a price |
|
NA904816000 | 66 | Handle cover (10amp / 2 pin / 1 switch) | Ask for a price |
|
NA904822000 | Handle cover hard wire 1 switch | Ask for a price | |
|
NA301047000 | 67 | Processed bottom motor housing | Ask for a price |
|
NA325129000 | 68 | Top motor housing | Ask for a price |
|
NA227929000 | 69 | Air seperator (simplex) | Ask for a price |
