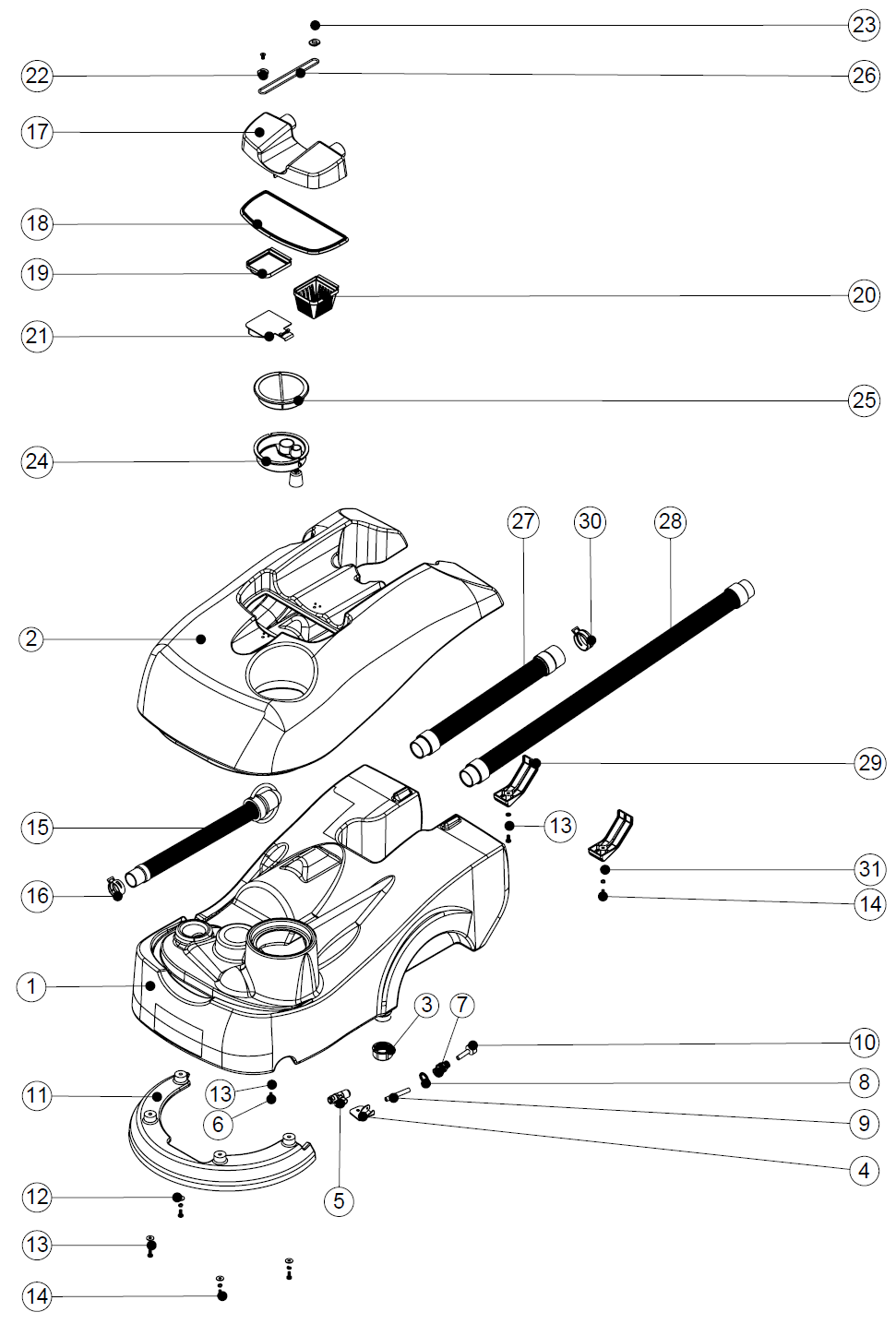

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA237464000 | 1 | Tt 1840 clean tank (mains) | Demander un prix |
|
NA237465000 | 2 | Ttb 1840 collection tank | Demander un prix |
|
NA905628000 | 3 | Tank drain cap | Demander un prix |
|
NA392125000 | 4 | Ttb 1840 tap plate | Demander un prix |
|
NA216260000 | 5 | Mini ball valve | Demander un prix |
|
NA219668000 | 6 | M5 x 10mm long pozi pan stainless steel screw | Demander un prix |
|
NA902109000 | 7 | 8MM Push Fit Brass Bulkhead Fitting | Demander un prix |
|
NA208525000 | 8 | Bonded seal | Demander un prix |
|
NA303960000 | 9 | Tank filter tube | Demander un prix |
|
NA303961000 | 10 | Tank filter assembly | Demander un prix |
|
NA237233000 | 11 | Ttb 1840 deck moulding | Demander un prix |
|
NA219644000 | 12 | M5 form g stainless steel washer | Demander un prix |
|
NA219861000 | 13 | M5 single coil stainless steel washer | Demander un prix |
|
NA219740000 | 14 | M5 x 12mm long stainless steel pozi pan screw | Demander un prix |
|
NA303997000 | 15 | Ttb 1840 dump hose assembly | Demander un prix |
|
NA208471000 | 16 | Constant tension clip | Demander un prix |
|
NA237230000 | 17 | Ttb 1840 separator moulding | Demander un prix |
|
NA237418000 | 18 | Ttb 1840 separator seal moulding | Demander un prix |
|
NA237232000 | 19 | Ttb 1840 air filter panel | Demander un prix |
|
NA237411000 | 20 | Top tank filter | Demander un prix |
|
NA237231000 | 21 | Ttb 1840 shut off flap | Demander un prix |
|
NA237397000 | 22 | O ring clip moulding | Demander un prix |
|
NA291008000 | 23 | M5 x 10mm long pozi pan countersunk stainless steel screw | Demander un prix |
|
NA303985000 | 24 | Ttb 1840 filler cap assembly | Demander un prix |
|
NA237268000 | 25 | Filler cap lid | Demander un prix |
|
NA208715000 | 26 | O RING (3mmdia.95mm) | Demander un prix |
|
NA213055000 | 27 | Ttb 1840 vac hose c/w cuffs | Demander un prix |
|
NA213054000 | 28 | Suction hose | Demander un prix |
|
NA237466000 | 29 | Skid plate moulding | Demander un prix |
|
NA208537000 | 30 | Vac hose constant tension clip | Demander un prix |
|
NA219355000 | 31 | M5 form a stainless steel washer | Demander un prix |
