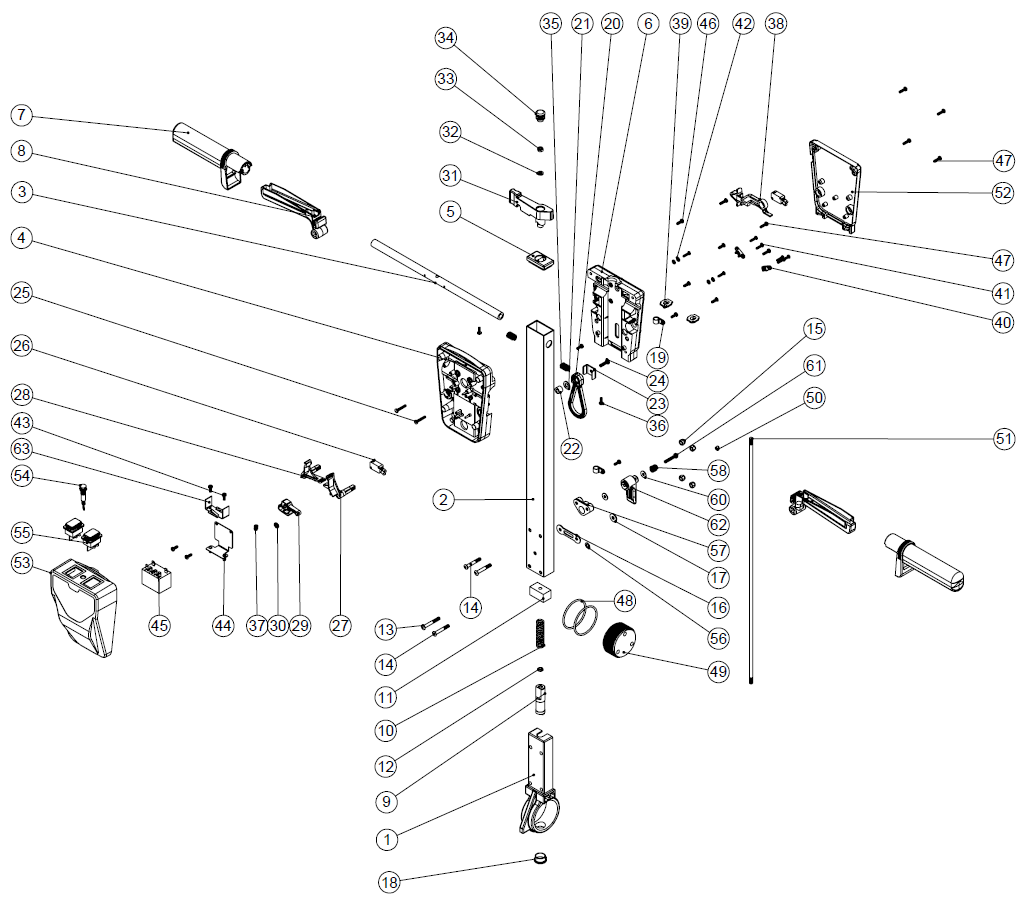

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA229081000 | 1 | Handle casting machined | Demander un prix |
|
NA429132000 | 2 | Tt 1840 handle tube (mains) painted | Demander un prix |
|
NA338269000 | 3 | Cross tube | Demander un prix |
|
NA227576000 | 4 | Front inner half moulding | Demander un prix |
|
NA227582000 | 5 | Handle plug moulding | Demander un prix |
|
NA227577000 | 6 | Rear inner half moulding | Demander un prix |
|
NA227580000 | 7 | Hand grip moulding | Demander un prix |
|
NA227581000 | 8 | Trigger moulding | Demander un prix |
|
NA229073000 | 9 | Gear locking pin | Demander un prix |
|
NA229138000 | 10 | Spring | Demander un prix |
|
NA229030000 | 11 | Anti vibration pad | Demander un prix |
|
NA219099000 | 12 | M6 half nut | Demander un prix |
|
NA219881000 | 13 | M6 x 45mm socket button head screw | Demander un prix |
|
NA219807000 | 14 | M6 x 40mm long socket button head bolt | Demander un prix |
|
NA219088000 | 15 | M6 nylon insert nut | Demander un prix |
|
NA229139000 | 16 | Cable clamp | Demander un prix |
|
NA219008000 | 17 | M6 form g washer | Demander un prix |
|
NA229099000 | 18 | 25mm dia hole plug | Demander un prix |
|
NA219393000 | 19 | P clip | Demander un prix |
|
NA226008000 | 20 | Stress relief | Demander un prix |
|
NA219010000 | 21 | M8 form a washer | Demander un prix |
|
NA226006000 | 22 | Spacer (black) | Demander un prix |
|
NA329231000 | 23 | Stress relief bracket | Demander un prix |
|
NA219054000 | 24 | M5 x 20mm long pozi pan screw | Demander un prix |
|
NA219811000 | 25 | No8 x 1 inch long pozi-pan self tap screw | Demander un prix |
|
NA229483000 | 26 | Snap action switch | Demander un prix |
|
NA227585000 | 27 | Left hand switch operating lever moulding | Demander un prix |
|
NA227586000 | 28 | Right hand switch operating lever moulding | Demander un prix |
|
NA227587000 | 29 | Centre switch operating lever moulding | Demander un prix |
|
NA219805000 | 30 | 4mm spirefix | Demander un prix |
|
NA227583000 | 31 | Adjustment lever moulding | Demander un prix |
|
NA219493000 | 32 | M6 nylon washer | Demander un prix |
|
NA219642000 | 33 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA20638V000 | 34 | 19mm black tube end stop | Demander un prix |
|
NA219803000 | 35 | Trigger compression spring | Demander un prix |
|
NA219270000 | 36 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Demander un prix |
|
NA219804000 | 37 | Switch compression spring | Demander un prix |
|
NA227584000 | 38 | Interlock lever moulding | Demander un prix |
|
NA237467000 | 39 | Blanking plug with hole | Demander un prix |
|
NA229669000 | 40 | Loline handle cable clamp | Demander un prix |
|
NA219107000 | 41 | No6 x 5/8 inch long pozi pan plastite screw | Demander un prix |
|
NA219206000 | 42 | M4 form a washer | Demander un prix |
|
NA219471000 | 43 | M4 x 12mm long pozi pan sems screw | Demander un prix |
|
NA303526000 | 44 | Nutserted relay mounting bracket | Demander un prix |
|
NA206575000 | 45 | 240v / 25a relay | Demander un prix |
|
NA219101000 | 46 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Demander un prix |
|
NA219105000 | 47 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Demander un prix |
|
NA219254000 | 48 | O ring 3mm dia x 60mm i/d | Demander un prix |
|
NA229074000 | 49 | Adjustment gear | Demander un prix |
|
NA229009000 | 50 | Blanking plug | Demander un prix |
|
NA215029000 | 51 | 610mm handle locking rod | Demander un prix |
|
NA227579000 | 52 | Rear cover moulding | Demander un prix |
|
NA229748000 | 53 | Front cover moulding (mains & battery) | Demander un prix |
|
NA220812000 | 54 | 230v neon indicator & red lens | Demander un prix |
|
NA208757000 | 55 | Black dpst on/off switch | Demander un prix |
|
NA219007000 | 56 | M6 form b washer | Demander un prix |
|
NA227806000 | 57 | Cable release base moulding | Demander un prix |
|
NA206599000 | 58 | Spring (ref:c5514370) | Demander un prix |
|
NA219076000 | 59 | M5 nylon insert nut | Demander un prix |
|
NA219644000 | 60 | M5 form g stainless steel washer | Demander un prix |
|
NA219720000 | 61 | M5 x 30mm long stainless steel pozi pan screw | Demander un prix |
|
NA227807000 | 62 | Cable release top moulding | Demander un prix |
|
NA206500000 | 63 | Relay bracket | Demander un prix |
