Spare Parts for:

Nacecare

AV12QX Carpet Extractor with Brush 12 Gal

#NA802516400

Nacecare's AV12QX industrial carpet extractor includes a rotating brush and squeegee for deep carpet cleaning. This carpet washer includes two 12-gallon tanks for heavy-duty cleaning.

Ask for a price

Parts Schema

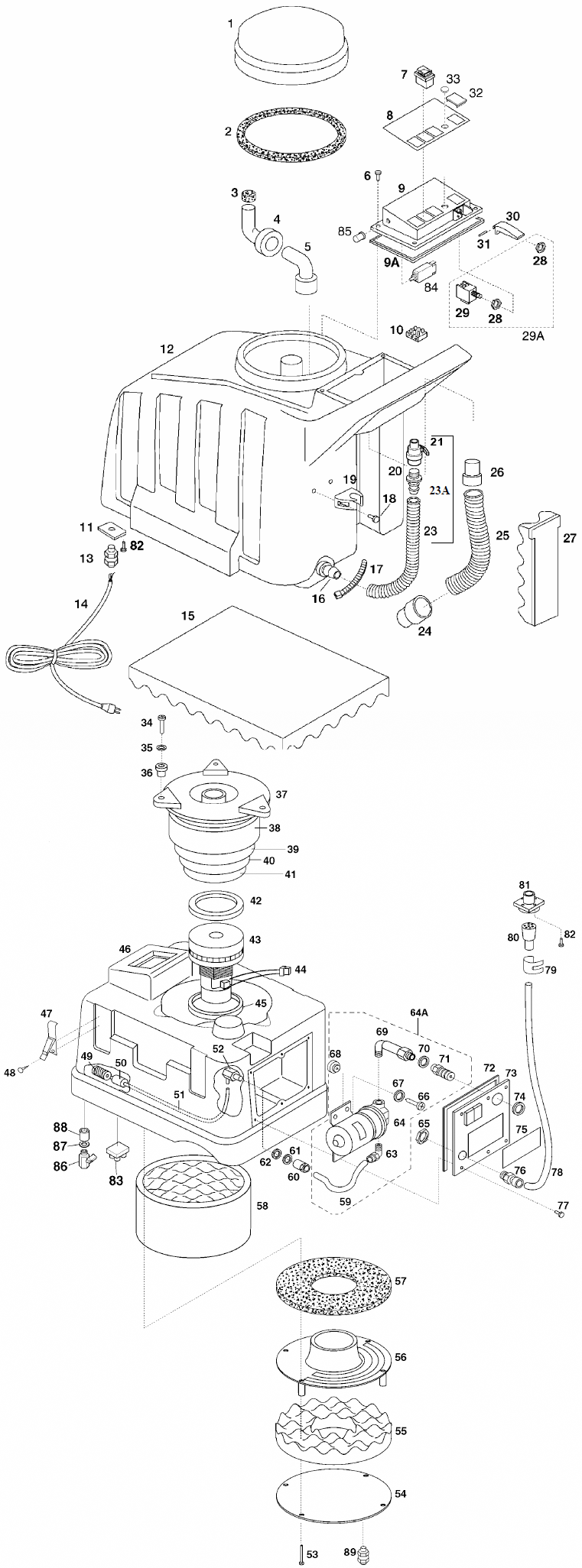

AV12QX Upper Part Schematic 1998 TO 2005 (0001) Serial Numbers between 0001 to 0500

SKU#	Label on drawing	Description	Ask for a price
NA15178C000	1	Cover with gasket	Ask for a price
NA151790000	2	Gasket	Ask for a price
NA151880000	3	Vacuum filter	Ask for a price
NA151310000	4	Elbow	Ask for a price
NA151530000	5	Elbow	Ask for a price
NA155510000	6	SCREW TC+ 4x16 INOX	Ask for a price
NA015217000	7	Switch	Ask for a price
NA152200000		3 position switch	Ask for a price
NA151191000	8	Panel label	Ask for a price
NA151770000	9	Control panel	Ask for a price
NA151280000	9A	Gasket for upper panel	Ask for a price
NA152360000	10	Connecting terminal	Ask for a price
NA158132000	10A	Varistor for pump	Ask for a price
NA151090000	11	Fairlead plate	Ask for a price
NA151900000	12	Recovery tank	Ask for a price
NA152950000	13	Fairlead with nut	Ask for a price
NA152151000	14	Complete cable – us plug	Ask for a price
NA015192000	15	Soundprofing panel	Ask for a price
NA015161000	16	Hose nipple	Ask for a price
NA015541000	17	Tie	Ask for a price
NA155440000	18	Screw	Ask for a price
NA151600000	19	Clip	Ask for a price
NA015161000	20	Hose nipple	Ask for a price
NA151591000	21	Drain valve 1”	Ask for a price
NA15358CZAH	23A	Complete drain hose assy.	Ask for a price
NA15364C000	25	Hose d.38	Ask for a price
NA151930000	27	Soundproofing panel	Ask for a price
NA155140000	28	Ring nut	Ask for a price
NA152770000	29	Micro-switch	Ask for a price
NA15231C000	29A	Micro-switch, complete with support and 2 nuts (cod.277+231)	Ask for a price
NA154571000	30	Solution lever	Ask for a price
NA155990000	31	Pin	Ask for a price
NA155021000	32	Cap	Ask for a price
NA155020000	33	Cap	Ask for a price
NA155600000	34	Screw tc+ 5x30 uni 7687 inox	Ask for a price
NA155171000	35	WASHER 5x15x1,5 UNI 6593 INOX	Ask for a price
NA157361000	36	Vibration damping	Ask for a price
NA151940000	37	Aluminium silencer flange	Ask for a price
NA015195000	38	Soundproofing filter 12x100x830	Ask for a price
NA015196000	39	Soundproofing filter 9x90x780	Ask for a price
NA015197000	40	Soundproofing filter 9x100x655	Ask for a price
NA015198000	41	Soundproofing filter 12x100x530	Ask for a price
NA158250000	42	MOTOR GASKET 3mm	Ask for a price
NA158090000	43	3 stages motor 1300w 110-120v 50/60hz	Ask for a price
NA152340000	44	Connector	Ask for a price
NA152500000		Male electrical terminal	Ask for a price
NA158250000	45	MOTOR GASKET 3mm	Ask for a price
NA151910000	46	Solution tank	Ask for a price
NA151420000	47	Coupler	Ask for a price
NA155420000	48	Screw	Ask for a price
NA156080000	49	Filter	Ask for a price
NA157470000	50	Ballast for water filter	Ask for a price
NA157450000	51	Extraflex hose 67cm	Ask for a price
NA15702D000	52	Coupling for water filter	Ask for a price
NA157240000	52	Connecting part	Ask for a price
NA155300000	53	Screw tc brugola 5x65 uni 5931 8.8 zn	Ask for a price
NA015200000	55	Lower soundproofing disc	Ask for a price
NA152010000	56	Lower motor flange	Ask for a price
NA015202000	57	Lower soundproofing filter	Ask for a price
NA151320000	58	Lower soundproofing cilinder	Ask for a price
NA157460000	59	Rilsan pipe	Ask for a price
NA157140000	60	Quick disconnect - female	Ask for a price
NA155400000	61	Metal washer	Ask for a price
NA151470000	62	Neoprene washer	Ask for a price
NA156220000	63	Elbow	Ask for a price
NA015644000	64	Pump 100-120v 100 psi	Ask for a price
NA15644CM00	64	Pump 100-120v 50-60 hz 100 psi + metal couplings	Ask for a price
NA155640000	65	Ring nut	Ask for a price
NA155460000	66	Screw 5x25	Ask for a price
NA157360000	68	Vibration damping	Ask for a price
NA015720000	69	Elbow	Ask for a price
NA015753000	69	Extension for metal coupl.	Ask for a price
NA151370000	70	O-ring for quick disconnect	Ask for a price
NA15687PE00	71	Female quick	Ask for a price
NA151860000	72	Panel gasket	Ask for a price
NA15148G000	73	Lower panel for elite(without hole for plug)	Ask for a price
NA151630000	74	Bush	Ask for a price
NA151190000	75	Lower panel label	Ask for a price
NA152620000	76	Connecting part	Ask for a price
NA015536000	77	Screw	Ask for a price
NA152910000	78	Cable sheath	Ask for a price
NA152614C00	78	Cable sheath complete	Ask for a price
NA152650000	79	Tie	Ask for a price
NA152600000	80	Plug	Ask for a price
NA152590000	81	Socket	Ask for a price
NA152594C00		Socket + wires	Ask for a price
NA155380000	82	Screw tc+ 3,9 x 13	Ask for a price
NA152793500	83	External rectifier for shurflo pump	Ask for a price
NA152930000	84	Thermal protection – 1,5a (100-120v)	Ask for a price
NA152940000	85	Rubber protection	Ask for a price
NA157510000	86	Ball valve (drain)	Ask for a price
NA155210000	87	Locking washer diam.12mm	Ask for a price
NA157520000	88	Connecting part	Ask for a price
NA152950000	89	Fairlead with nut	Ask for a price
