AV12QX Carpet Extractor with Brush 12 Gal #NA802516400

Spare Parts for:

AV12QX Carpet Extractor with Brush 12 Gal
#NA802516400


Nacecare's AV12QX industrial carpet extractor includes a rotating brush and squeegee for deep carpet cleaning. This carpet washer includes two 12-gallon tanks for heavy-duty cleaning.
Parts Schema

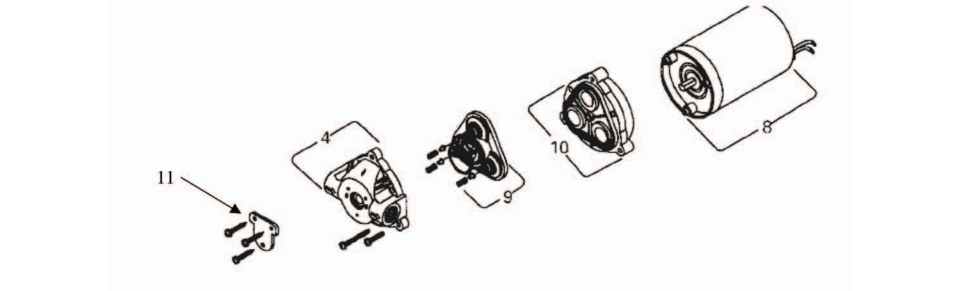

Shurflo Pump Diagram Serial Numbers 0001 and higher
Image SKU# Label on drawing Description Ask for a price
NA156441000 4 Upper Housing Ask for a price
NA156443000 10 Diaphragm/Drive Assy Ask for a price
NA156444000 8 Motor Ask for a price
NA156442000 9 Bypass Valve Assy Ask for a price
NA156445000 11 Pressure Switch Cover Ask for a price

Parts Schemas List

Parts Schema
Schema Version
Serial Numbers 0001 and higher
Serial Numbers between 0001 to 0500
Serial Numbers 501 and higher
Serial Numbers between 0001 to 0500
Serial Numbers 0501 and higher
Serial Numbers 0001 and higher
Serial Numbers 0001 and higher
Serial Numbers between 0001 to 1010
Serial Numbers 1011 and higher
Serial Numbers 1011 and higher
