Spare Parts for:

Nacecare

Dry Vacuum NVH 380 with Electric Powerhead A350E

#NA802627100

Dry Vaccum 380 NVH with A350E Kit

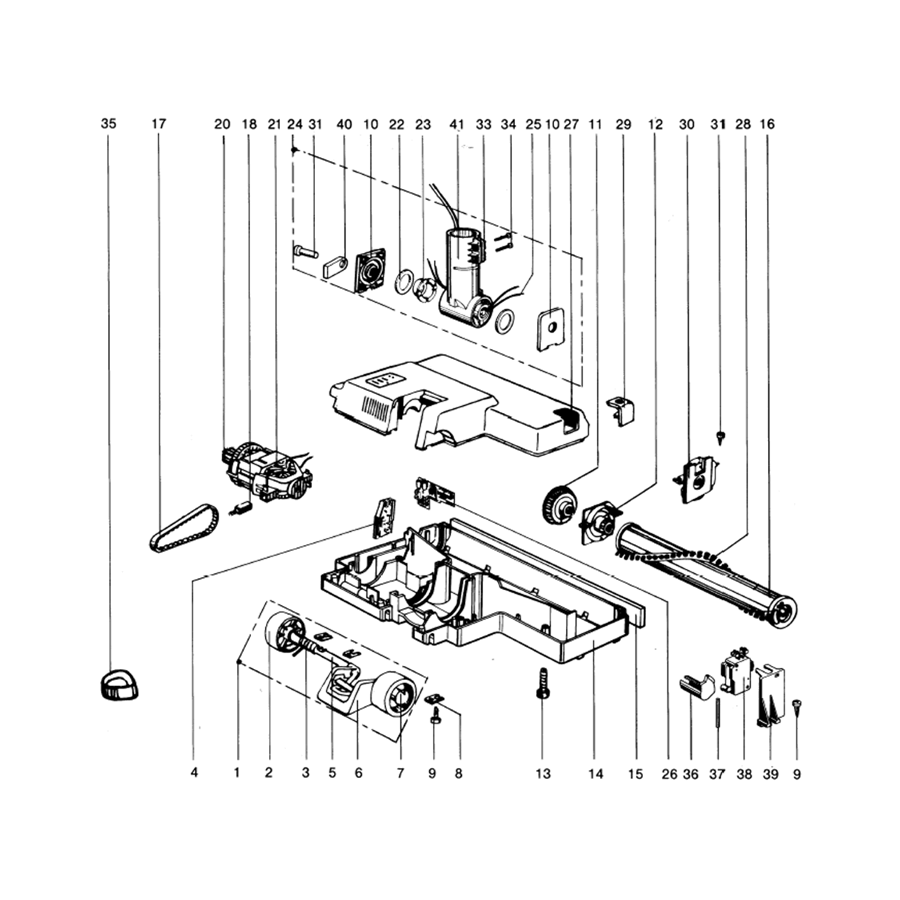

Parts Schema

Electric Power Head A350E (0001) Serial Numbers between 0001 and 1427

SKU#	Label on drawing	Description	Ask for a price
NA129722000	1	axle assembly	Ask for a price
NA129726000	2	wheel	Ask for a price
NA129724000	3	spring	Ask for a price
NA129743000	4	bearing plate	Ask for a price
NA129723000	5	axle assembly	Ask for a price
NA129725000	6	foot pedal	Ask for a price
NA129706000	7	end clip	Ask for a price
NA129727000	8	axle clamp	Ask for a price
NA129700000	9	screw, 3.9 x 13	Ask for a price
NA129728000	10	swivel neck support	Ask for a price
NA129754000	11	brush roller pulley	Ask for a price
NA129745000	12	bearing block, lh	Ask for a price
NA129702000	13	screw M5 x 25	Ask for a price
NA129719000	14	chassis, complete	Ask for a price
NA129721000	15	bumper	Ask for a price
NA129733000	16	brush assembly complete	Ask for a price
NA129738000	17	drive belt	Ask for a price
NA129708000	18	carbon brush	Ask for a price
NA129732000	19	motor gasket	Ask for a price
NA129731000	20	motor pulley	Ask for a price
NA129747000	21	brush motor	Ask for a price
NA129705000	22	washer	Ask for a price
NA129755000	23	plastic bearing inside	Ask for a price
NA129758000	24	swivel neck assembly w/cord	Ask for a price
NA129711000	25	wire on swivel neck	Ask for a price
NA129748000	26	electronic control board	Ask for a price
NA129756000	27	powerhead cover, complete	Ask for a price
NA129736000	28	brush strip	Ask for a price
NA129740000	29	brush strip cover	Ask for a price
NA129737000	30	bearing block rh	Ask for a price
NA129701000	31	screw, 3.9 x 16	Ask for a price
NA124683000	32	cord strap	Ask for a price
NA129704000	33	plated nut M4	Ask for a price
NA129703000	34	screw, M4 x 12	Ask for a price
NA129751000	36	switch, lever	Ask for a price
NA129753000	37	pin	Ask for a price
NA129709000	38	micro switch	Ask for a price
NA129752000	39	microswitch support	Ask for a price
NA129720000	39	metal plate and wire on base	Ask for a price
NA129757000	41	Neck (Without Cord)	Ask for a price
NA129758000	41	swivel neck assembly w/cord	Ask for a price
NA124695000	0	pig-tail cord with Numatic plug	Ask for a price
NA124625000	0	power cord (connects to powerhead)	Ask for a price
NA124962000	0	8' vacuum hose	Ask for a price
NA125066000	0	adaptor coupling for hose	Ask for a price
NA125305000	0	curved wand with air relief	Ask for a price
NA125335000	0	button lock wand	Ask for a price
NA125337000	0	button lock wand, lower	Ask for a price
