Spare Parts for:

Nacecare

Dry Vacuum NVH 380 with Electric Powerhead A350E

#NA802627100

Dry Vaccum 380 NVH with A350E Kit

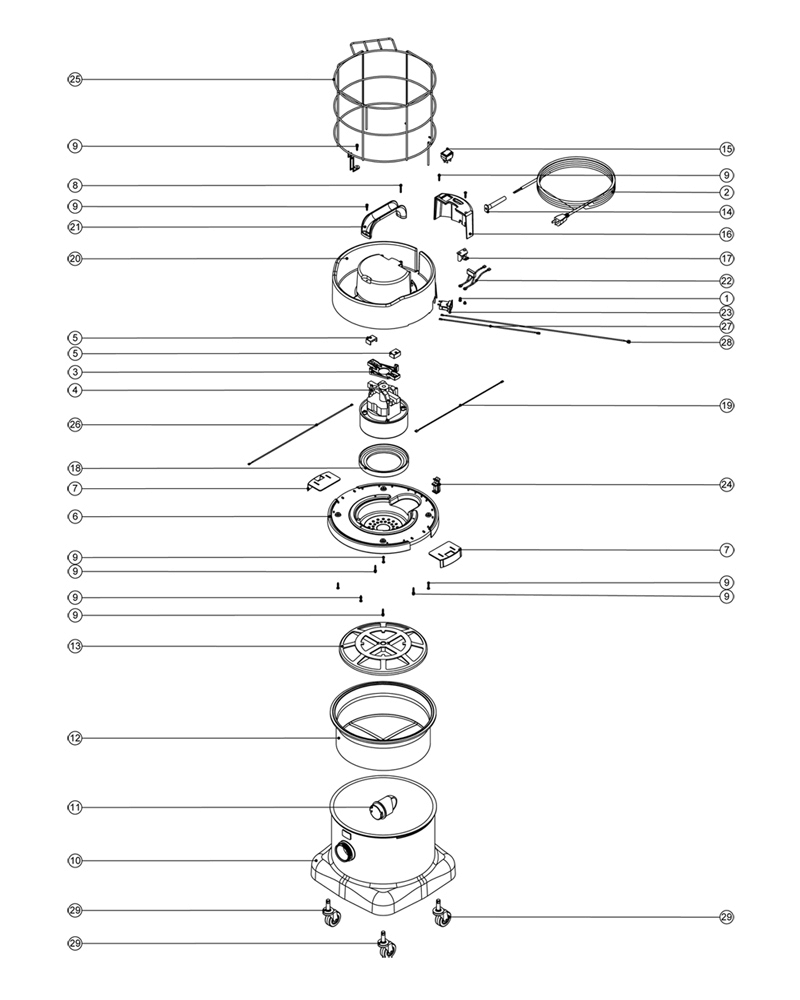

Parts Schema

General Assembly (0506) Serial Numbers between 0506 and 0605

SKU#	Label on drawing	Description	Ask for a price
NA219090000	1	M4 x 8mm long pozi pan sems screw	Ask for a price
NA236041000	2	Mains cable (10.0 metre long / 18awg / 2 core / yellow cable / csa plug)	Ask for a price
NA227881000	3	Motor plate	Ask for a price
NA205401000	4	The 2 speed 2 stage motor is the quietest on the market. With is 47 dB level noise on low power and 49 on high, this product is perfect for a daytime used. Design for Henry/James Dry vacuum from Nacecare.	Ask for a price
NA227438000	5	Rubber end pad	Ask for a price
NA227343000	6	Grey bottom motor housing	Ask for a price
NA227115000	7	Toggle	Ask for a price
NA219041000	9	No8 X 3/4 INCH LONG POZI PAN SCREW	Ask for a price
NA225003000	10	Red container	Ask for a price
NA227004000	11	Bag connector 1	Ask for a price
NA207109000	12	12 inch filter (double bottom) 160grm sms	Ask for a price
NA209400000	13	Single filter grid	Ask for a price
NA220923000	14	Stress relief	Ask for a price
NA220552000	15	Red rocker switch (white print)	Ask for a price
NA227342000	16	Grey switch box	Ask for a price
NA325212000	17	Terminal block + inserts	Ask for a price
NA227882000	18	Bottom motor gasket	Ask for a price
NA320296000	19	340mm long white link wire	Ask for a price
NA325494000	20	Black top motor housing (processed for cage & printed white numatic)	Ask for a price
NA206451000	21	Handle	Ask for a price
NA220698000	22	Suppressor assembly	Ask for a price
NA220130000	23	Pto socket	Ask for a price
NA229426000	24	Henry clipholder	Ask for a price
NA401377000	25	Round top wire cage (painted black)	Ask for a price
NA320335000	26	410mm long white link wire	Ask for a price
NA320697000	27	280mm long white link wire	Ask for a price
NA321110000	28	550mm long white link wire	Ask for a price
NA204059000	29	2 inch castor wv370-2	Ask for a price
