Spare Parts for:

Nacecare

Henry HGB 817 Battery 17" Autoscrubber

#NA907365000

HGB Henry 817 is an autoscrubber of 17" with an 8 gallon solution and recovery tanks. Compact, easy to use and transport, it's a serious cleaner with a smile!

Ask for a price

Parts Schema

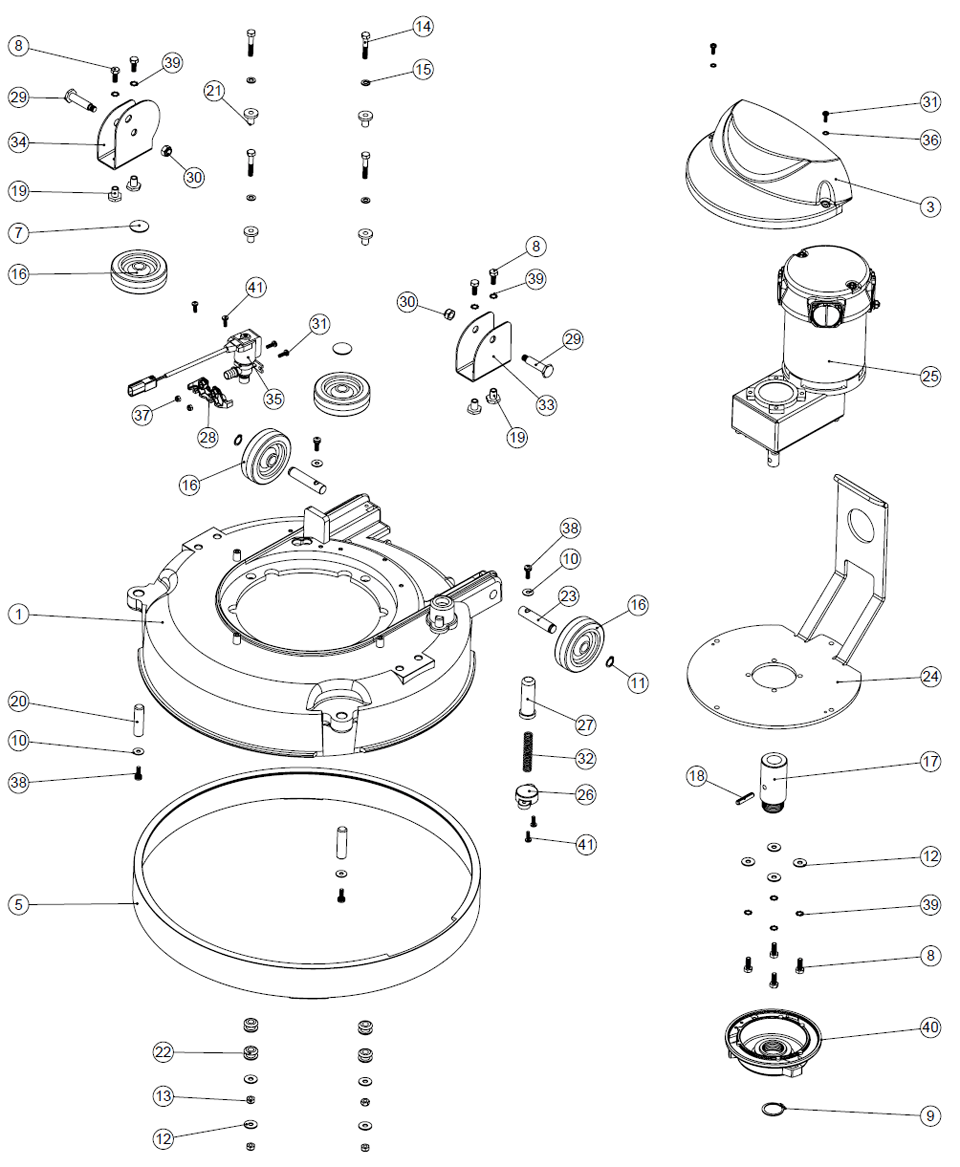

Brush Deck Assembly Serial Numbers 1701 and higher

SKU#	Label on drawing	Description	Ask for a price
NA329392000	1	Deck assembly	Ask for a price
NA904896000	1	Hgb3045 red base moulding (spares use 905414) hgb	Ask for a price
NA237380000	3	Amer motor cover	Ask for a price
NA904897000	3	Amer motor cover (black) hgb	Ask for a price
NA229644000	5	450mm diameter splash skirt moulding	Ask for a price
NA904898000	5	450mm diameter splash skirt moulding (black) hgb	Ask for a price
NA204021000	7	12.7mm stainless steel hub cap	Ask for a price
NA219719000	8	M6 x 16mm long hexagonal stainless steel head bolt	Ask for a price
NA230048000	9	26mm external circlip	Ask for a price
NA219644000	10	M5 form g stainless steel washer	Ask for a price
NA219345000	11	12mm external circlip	Ask for a price
NA219647000	12	M6 form g stainless steel washer	Ask for a price
NA219642000	13	M6 stainless steel nylon insert nut	Ask for a price
NA291127000	14	M6 x 35 long hex bolt stainless steel	Ask for a price
NA219870000	15	M6 form a washer stainless steel	Ask for a price
NA204068000	16	3 inch grey wheel	Ask for a price
NA208727000	17	Drive shaft	Ask for a price
NA291079000	18	6mm x 30mm stainless steel roll pin	Ask for a price
NA219606000	19	Bracket spacer	Ask for a price
NA206013000	20	Buffer wheel pin	Ask for a price
NA208011000	21	Motor mounting spacer	Ask for a price
NA229025000	22	Standard grommet	Ask for a price
NA229382000	23	Rear wheel pin	Ask for a price
NA392362000	24	Motor adaptor plate paint silver grey	Ask for a price
NA205245000	25	Amer 100rpm motor 230222 carbon brushes (set)	Ask for a price
NA223242000	26	Plunger mounting plate moulding	Ask for a price
NA229128000	27	Plunger	Ask for a price
NA902556000	28	Solenoid mount moulding	Ask for a price
NA206236000	29	Pivot pin	Ask for a price
NA219639000	30	M8 stainless steel nylon insert nut	Ask for a price
NA219890000	31	M4 x 12mm long pozi pan stainless steel screw	Ask for a price
NA219394000	32	Compression spring	Ask for a price
NA392249000	33	Deck mount rh	Ask for a price
NA392248000	34	Deck mount bracket	Ask for a price
NA902949000	35	Terminated solonoid cable.black.125.0m5.2.24	Ask for a price
NA291145000	36	M4 shakeproof washer stainless steel	Ask for a price
NA219687000	37	M4 stainless steel nylon insert nut	Ask for a price
NA291132000	38	M5 x 16mm long stainless steel pozi pan sems screw	Ask for a price
NA902353000	39	M6 external shakeproof washer stainless steel	Ask for a price
NA230285000	40	Modified chuck (cro)	Ask for a price
NA219569000	41	No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite	Ask for a price
