Henry HGB 817 Battery 17" Autoscrubber #NA907365000

Spare Parts for:

Henry HGB 817 Battery 17" Autoscrubber
#NA907365000


HGB Henry 817 is an autoscrubber of 17" with an 8 gallon solution and recovery tanks. Compact, easy to use and transport, it's a serious cleaner with a smile!
Parts Schema

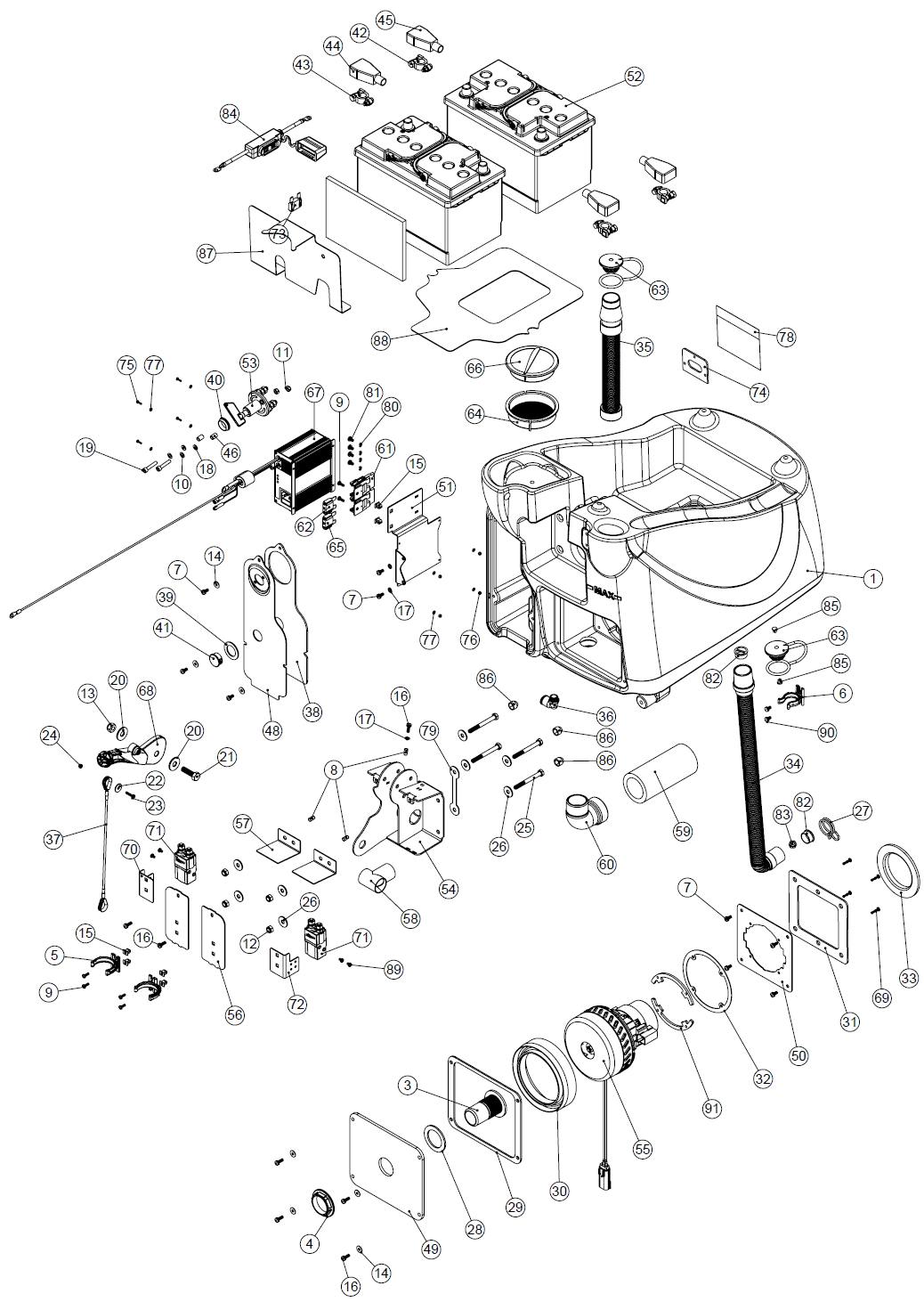

Bottom Tank Assembly Serial Numbers 1705 and higher
Image SKU# Label on drawing Description Ask for a price
NA902590000 1 Tgb3045 bottom tank moulding (graphite) Ask for a price
NA904725000 1 Hgb3045 bottom tank moulding (red - with logo) (904726 without logo) hgb Ask for a price
NA237526000 3 38mm red drain hose connector Ask for a price
NA206116000 4 Black nut Ask for a price
NA237754000 5 35-38mm hose clip Ask for a price
NA901916000 6 28mm HOSE CLIP Ask for a price
NA291131000 7 M5 x 12mm long stainless steel pozi pan sems screw Ask for a price
NA219558000 8 M5 stainless steel nutsert Ask for a price
NA219569000 9 No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite Ask for a price
NA219560000 10 M6 form b stainless steel washer Ask for a price
NA219642000 11 M6 stainless steel nylon insert nut Ask for a price
NA219639000 12 M8 stainless steel nylon insert nut Ask for a price
NA219897000 13 M10 stainless steel nylon insert nut Ask for a price
NA219644000 14 M5 form g stainless steel washer Ask for a price
NA900986000 15 Nylon grommet nut (plastic insert to suit no 8 plastite screw) Ask for a price
NA291132000 16 M5 x 16mm long stainless steel pozi pan sems screw Ask for a price
NA219355000 17 M5 form a stainless steel washer Ask for a price
NA219462000 18 Rubber washer Ask for a price
NA219747000 19 M6 x 30mm stainless steel cap head screw Ask for a price
NA291124000 20 M10 penny washer stainless steel Ask for a price
NA219895000 21 M10 x 35mm long hexagonal stainless steel screw Ask for a price
NA291118000 22 M5 stainless steel washer 19mm od Ask for a price
NA219686000 23 M4 x 20mm long stainless steel pozi pan machine screw Ask for a price
NA219687000 24 M4 stainless steel nylon insert nut Ask for a price
NA291123000 25 M8 x 75 long hex head bolt stainless steel Ask for a price
NA219716000 26 M8 form g stainless steel washer Ask for a price
NA902133000 27 Spring wire clamp (ydnac-y8010356) Ask for a price
NA219310000 28 Rubber washer Ask for a price
NA902275000 29 Vac plate gasket Ask for a price
NA202069000 30 Bottom motor gasket Ask for a price
NA208799000 31 Tt motor plate gasket Ask for a price
NA202139000 32 Motor gasket Ask for a price
NA202008000 33 Motor cap gasket Ask for a price
NA213025000 34 Dump hose Ask for a price
NA208960000 35 Ttb/tt filling hose Ask for a price
NA901539000 36 Elbow angle connector 3/8 parallel thread c/w o-ring to 12mm push in Ask for a price
NA208962000 37 Tt lifting wire Ask for a price
NA902708000 38 Charger & pcb plate gasket Ask for a price
NA902328000 39 Window plug gasket Ask for a price
NA902331000 40 Qf pvc grommet (26mm x 22mm x 2mm) Ask for a price
NA206314000 41 Window plug Ask for a price
NA220455000 42 Battery terminal convertor 80ah version Ask for a price
NA220454000 43 Positive battery terminal converter 80ah version Ask for a price
NA208935000 44 Red battery terminal cover (415n8v02) Ask for a price
NA208936000 45 Black battery terminal cover (415n8v14) Ask for a price
NA229744000 46 Spacer Ask for a price
NA208645000 47 Foam battery spacer Ask for a price
NA902707000 48 Charger & pcb cover plate Ask for a price
NA392441000 49 Tt4045/55 vac motor back plate Ask for a price
NA902709000 50 Vac motor plate (ccl) Ask for a price
NA902706000 51 Charger & pcb bracket Ask for a price
NA220868000 52 12v traction block battery Ask for a price
NA206746000 53 Master key switch & key 206813 spare key Ask for a price
NA903612000 54 Tgb 3045 handle mount weld assembly z/pl Ask for a price
NA903292000 55 Vac motor assembly Ask for a price
NA903539000 56 Handle mount cover painted silver Ask for a price
NA903599000 57 Cover plate Ask for a price
NA903600000 58 T shape dip moulding Ask for a price
NA208956000 59 Silencer foam tube 150mm Ask for a price
NA208583000 60 Dip moulded elbow (mains version) Ask for a price
NA230102000 61 Fuse holder rated at 60 amps Ask for a price
NA230104000 62 30 amp maxi fuse Ask for a price
NA903341000 63 32mm hose cap red (c/w 8mm hole) Ask for a price
NA903543000 64 Clean tank inlet filter (red) Ask for a price
NA221091000 65 20 amp maxi fuse Ask for a price
NA903544000 66 Filler cap lid (red) Ask for a price
NA903533000 67 Spe charger assembly c/w inhibit Ask for a price
NA902324000 68 Red squeegee lift handle Ask for a price
NA219568000 69 No8 x 3/4 inch long pozi pan stainless steel screw Ask for a price
NA903598000 70 Contactor plate (left) Ask for a price
NA903736000 71 24v albright contactor (su60-2009) Ask for a price
NA903737000 72 Contactor plate (right) Ask for a price
NA221047000 73 40 amp maxi fuse Ask for a price
NA202105000 74 Socket cover sealing gasket Ask for a price
NA902534000 75 M3 x 10mm long pozi pan screw stainless steel Ask for a price
NA291154000 76 M3 nylon insert nut stainless steel Ask for a price
NA904219000 77 M3 stainless steel external shakeproof washer Ask for a price
NA904220000 78 Splash guard sheet Ask for a price
NA904283000 79 Cable restraint Ask for a price
NA219861000 80 M5 single coil stainless steel washer Ask for a price
NA219864000 81 M5 x 8mm long pozi-pan screw z/pl Ask for a price
NA904108000 82 Float stop moulding Ask for a price
NA904109000 83 Float moulding Ask for a price
NA903761000 84 Waterproof battery fuse holder.246.ring.ring Ask for a price
NA904403000 85 Barbed rivet black Ask for a price
NA903260000 86 Bolt and nut cap Ask for a price
NA904729000 87 Wire & battery plate (pp) Ask for a price
NA904728000 88 Battery spacer (pp) Ask for a price
NA904703000 89 M4 x 6mm long pozi-pan screw stainless steel 1.6nm Ask for a price
NA291135000 90 M5 x 10mm long stainless steel pozi pan sems screw Ask for a price
NA905066000 91 Vac spacer plate Ask for a price
