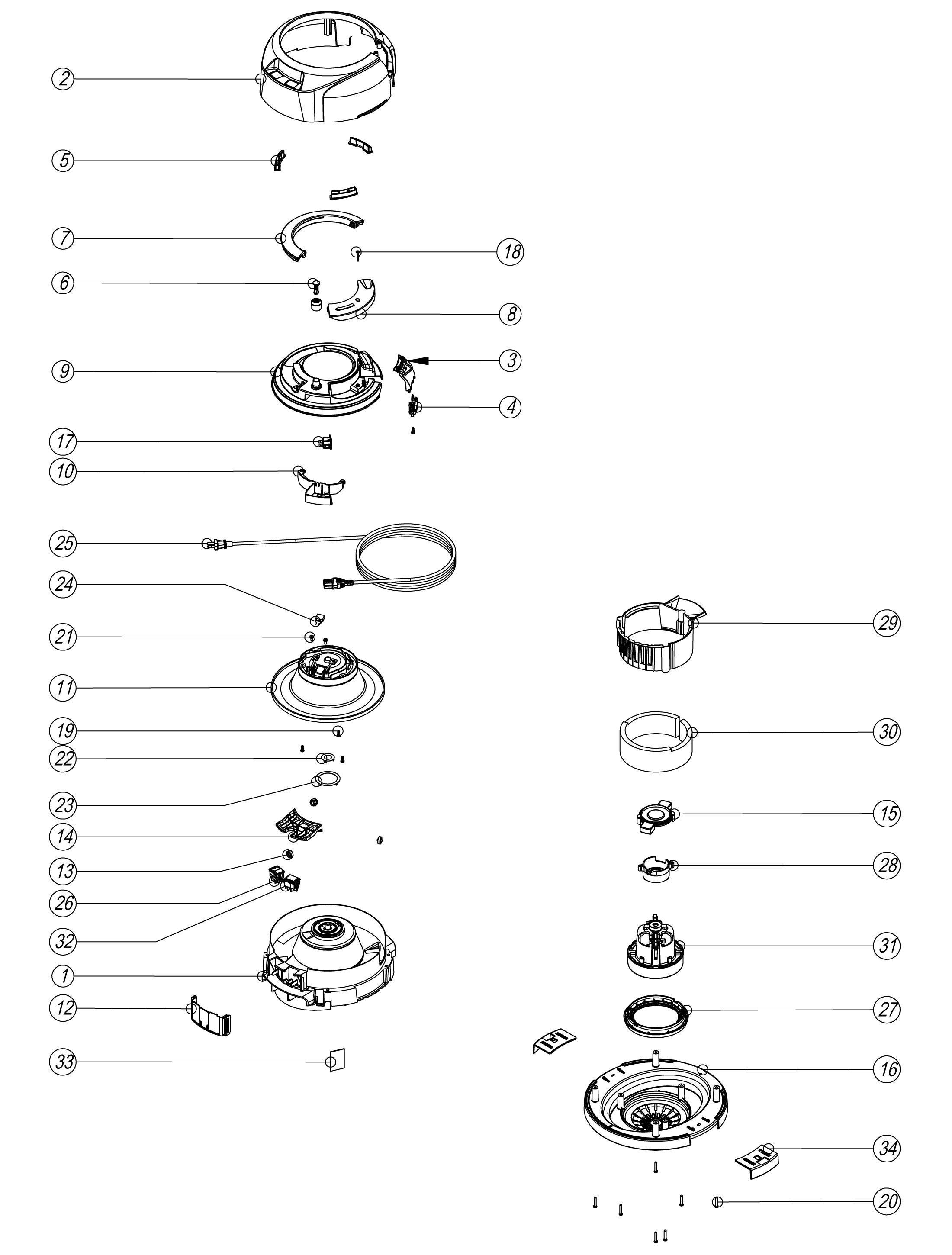

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA237130000 | 1 | Top motor housing (pvr front switch) (v2 rated material) | Ask for a price |
|
NA338105000 | 2 | PPR Cover 1 stage 2 speed TMH | Ask for a price |
|
NA237395000 | 3 | Ppr (plugged) black cable cover | Ask for a price |
|
NA237391000 | 4 | Ppr - cable guide | Ask for a price |
|
NA237386000 | 5 | Ppr - calliper | Ask for a price |
|
NA229617000 | 6 | Cable reel winder knob assy | Ask for a price |
|
NA237396000 | 7 | Ppr - handle | Ask for a price |
|
NA237581000 | 8 | Ppr - reeler plug cover (v2 rated) | Ask for a price |
|
NA388061000 | 9 | Ppr (plugged) black reeler cover (v2 rated) | Ask for a price |
|
NA237580000 | 10 | Ppr - socket saddle (v2 rated) | Ask for a price |
|
NA325560000 | 11 | Cable reel moulding assembly (v2 rated) | Ask for a price |
|
NA229738000 | 12 | Switch cover v2 rated material | Ask for a price |
|
NA237133000 | 14 | Wire entry enclosure (pvr front switch) (v2 rated material) | Ask for a price |
|
NA229614000 | 15 | Motor plate bi -material | Ask for a price |
|
NA237607000 | 16 | Bottom motor housing (twin-shot) | Ask for a price |
|
NA230204000 | 17 | Nuc18s inlet - volex | Ask for a price |
|
NA291117000 | 18 | No.8 x 1 inch (4.5mm captive) pozi-pan screw / plastite / blackodised | Ask for a price |
|
NA219101000 | 19 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Ask for a price |
|
NA291082000 | 20 | #8 screw 1"l t20 pan head p/l thread forming | Ask for a price |
|
NA291151000 | 21 | M4 x 10mm long t20 sems screw z/pl - product code 8.8 - tx20 head | Ask for a price |
|
NA227141000 | 22 | Inner contact ring | Ask for a price |
|
NA227142000 | 23 | Outer contact ring | Ask for a price |
|
NA230096000 | 24 | Suppressor capacitor assembly with discharge resistor | Ask for a price |
|
NA236160000 | 25 | 12.5mt x 18awg x 2 core yellow cable (ppr plugged) csa | Ask for a price |
|
NA220582000 | 26 | Green rocker switch (white print) 0-1 | Ask for a price |
|
NA237089000 | 27 | Bottom motor gasket - cup motor | Ask for a price |
|
NA237480000 | 28 | Adaptor motor (dl1 603t) | Ask for a price |
|
NA237674000 | 29 | Airguide (dl1 type) | Ask for a price |
|
NA203038000 | 30 | Pod side felt (dl1 type) | Ask for a price |
|
NA205291000 | 31 | Motor 600w (120v) (dl1651t) | Ask for a price |
|
NA208885000 | 32 | Neon indicator (everel, b71121g000000) 1 | Ask for a price |
|
NA227957000 | 33 | Blanking plate | Ask for a price |
|
NA237115000 | 34 | Nrv hard edge toggle | Ask for a price |
