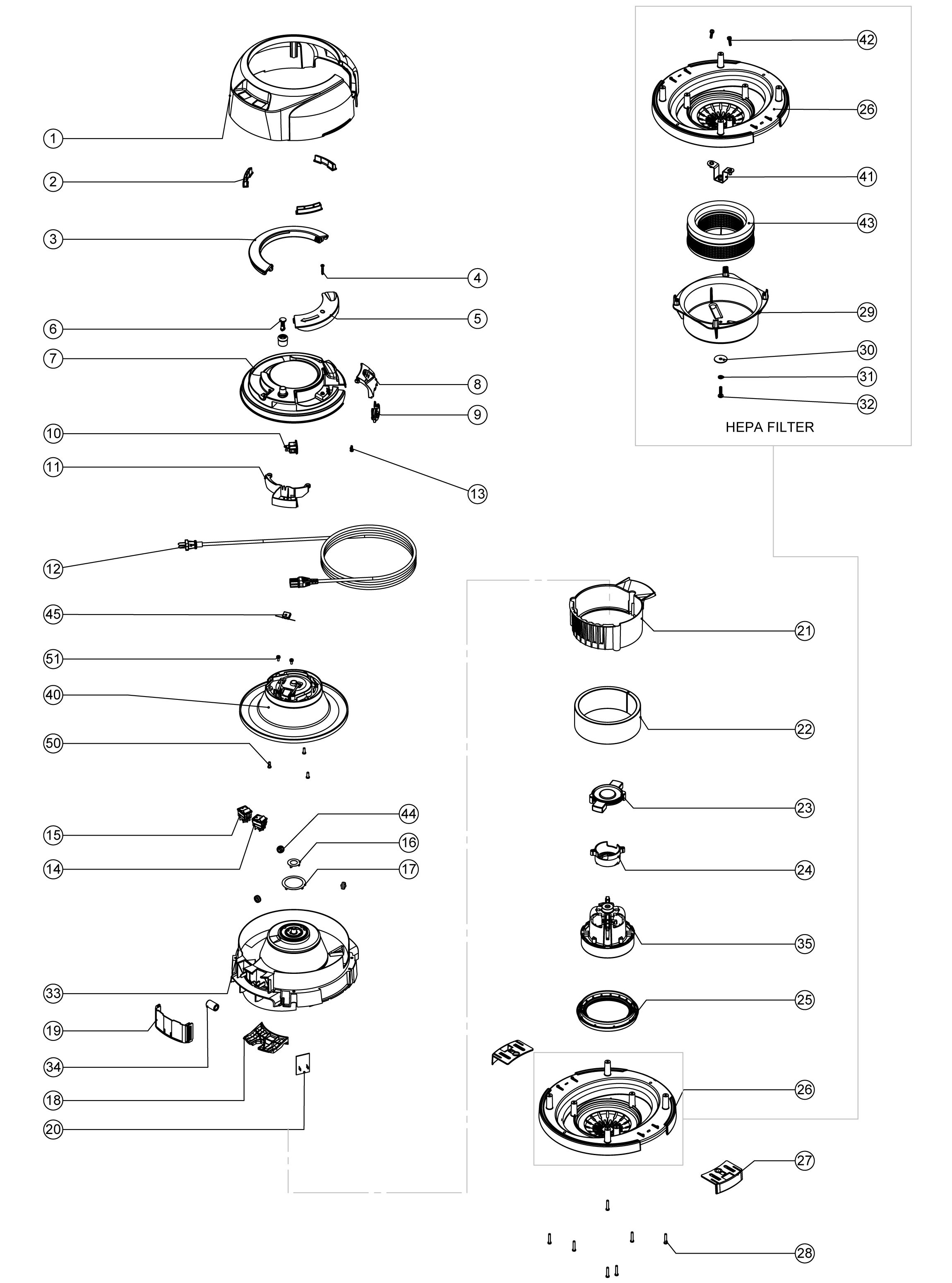

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA237386000 | 2 | Ppr - calliper | Ask for a price |
|
|
NA237386000 | 2 | Ppr - calliper | Ask for a price |
|
NA237396000 | 3 | Ppr - handle | Ask for a price |
|
|
NA237396000 | 3 | Ppr - handle | Ask for a price |
|
NA291117000 | 4 | No.8 x 1 inch (4.5mm captive) pozi-pan screw / plastite / blackodised | Ask for a price |
|
|
NA291117000 | 4 | No.8 x 1 inch (4.5mm captive) pozi-pan screw / plastite / blackodised | Ask for a price |
|
NA237581000 | 5 | Ppr - reeler plug cover (v2 rated) | Ask for a price |
|
|
NA237581000 | 5 | Ppr - reeler plug cover (v2 rated) | Ask for a price |
|
NA229617000 | 6 | Cable reel winder knob assy | Ask for a price |
|
|
NA229617000 | 6 | Cable reel winder knob assy | Ask for a price |
|
NA388061000 | 7 | Ppr (plugged) black reeler cover (v2 rated) | Ask for a price |
|
|
NA388061000 | 7 | Ppr (plugged) black reeler cover (v2 rated) | Ask for a price |
|
NA237395000 | 8 | Ppr (plugged) black cable cover | Ask for a price |
|
|
NA237395000 | 8 | Ppr (plugged) black cable cover | Ask for a price |
|
NA237391000 | 9 | Ppr - cable guide | Ask for a price |
|
|
NA237391000 | 9 | Ppr - cable guide | Ask for a price |
|
NA230204000 | 10 | Nuc18s inlet - volex | Ask for a price |
|
|
NA230204000 | 10 | Nuc18s inlet - volex | Ask for a price |
|
NA237580000 | 11 | Ppr - socket saddle (v2 rated) | Ask for a price |
|
|
NA237580000 | 11 | Ppr - socket saddle (v2 rated) | Ask for a price |
|
NA236160000 | 12 | 12.5mt x 18awg x 2 core yellow cable (ppr plugged) csa | Ask for a price |
|
|
NA236160000 | 12 | 12.5mt x 18awg x 2 core yellow cable (ppr plugged) csa | Ask for a price |
|
NA219101000 | 13 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Ask for a price |
|
NA230096000 | 13 | Suppressor capacitor assembly with discharge resistor | Ask for a price |
|
NA219090000 | 14 | M4 x 8mm long pozi pan sems screw | Ask for a price |
|
NA220243000 | 14 | Switch.spdt.rkr.hv | Ask for a price |
|
NA220552000 | 15 | Red rocker switch (white print) | Ask for a price |
|
|
NA219101000 | 16 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Ask for a price |
|
NA227141000 | 16 | Inner contact ring | Ask for a price |
|
NA227142000 | 17 | Outer contact ring | Ask for a price |
|
|
NA220243000 | 17 | Switch.spdt.rkr.hv | Ask for a price |
|
|
NA220552000 | 18 | Red rocker switch (white print) | Ask for a price |
|
NA237133000 | 18 | Wire entry enclosure (pvr front switch) (v2 rated material) | Ask for a price |
|
NA229738000 | 19 | Switch cover v2 rated material | Ask for a price |
|
|
NA227141000 | 19 | Inner contact ring | Ask for a price |
|
NA206608000 | 20 | Numatic 2 speed control pcb | Ask for a price |
|
|
NA227142000 | 21 | Outer contact ring | Ask for a price |
|
NA203020000 | 22 | Pod side felt | Ask for a price |
|
|
NA237133000 | 22 | Wire entry enclosure (pvr front switch) (v2 rated material) | Ask for a price |
|
|
NA229738000 | 23 | Switch cover v2 rated material | Ask for a price |
|
NA229614000 | 23 | Motor plate bi -material | Ask for a price |
|
NA237480000 | 24 | Adaptor motor (dl1 603t) | Ask for a price |
|
|
NA206608000 | 24 | Numatic 2 speed control pcb | Ask for a price |
|
NA237089000 | 25 | Bottom motor gasket - cup motor | Ask for a price |
|
NA237607000 | 26 | Bottom motor housing (twin-shot) | Ask for a price |
|
|
NA203020000 | 26 | Pod side felt | Ask for a price |
|
|
NA229614000 | 27 | Motor plate bi -material | Ask for a price |
|
NA291082000 | 28 | #8 screw 1"l t20 pan head p/l thread forming | Ask for a price |
|
|
NA237480000 | 28 | Adaptor motor (dl1 603t) | Ask for a price |
|
|
NA237089000 | 29 | Bottom motor gasket - cup motor | Ask for a price |
|
NA237622000 | 29 | filter cartridge housing | Ask for a price |
|
NA291048000 | 30 | m6 x m30 mild steel zinc pass washer | Ask for a price |
|
|
NA237607000 | 30 | Bottom motor housing (twin-shot) | Ask for a price |
|
NA219493000 | 31 | M6 nylon washer | Ask for a price |
|
NA219056000 | 32 | M6 x 25mm long pozi pan screw | Ask for a price |
|
|
NA291082000 | 32 | #8 screw 1"l t20 pan head p/l thread forming | Ask for a price |
|
NA237130000 | 33 | Top motor housing (pvr front switch) (v2 rated material) | Ask for a price |
|
|
NA237622000 | 33 | filter cartridge housing | Ask for a price |
|
NA230097000 | 34 | Axial ferrite bead | Ask for a price |
|
|
NA291048000 | 34 | m6 x m30 mild steel zinc pass washer | Ask for a price |
|
NA205291000 | 35 | Motor 600w (120v) (dl1651t) | Ask for a price |
|
|
NA219493000 | 35 | M6 nylon washer | Ask for a price |
|
NA220582000 | 36 | Green rocker switch (white print) 0-1 | Ask for a price |
|
|
NA219056000 | 36 | M6 x 25mm long pozi pan screw | Ask for a price |
|
NA208885000 | 37 | Neon indicator (everel, b71121g000000) 1 | Ask for a price |
|
|
NA237130000 | 37 | Top motor housing (pvr front switch) (v2 rated material) | Ask for a price |
|
NA208300000 | 38 | Autosave 2 speed control pcb | Ask for a price |
|
NA227882000 | 38 | Bottom motor gasket | Ask for a price |
|
NA227957000 | 39 | Blanking plate | Ask for a price |
|
|
NA230097000 | 39 | Axial ferrite bead | Ask for a price |
|
|
NA205291000 | 40 | Motor 600w (120v) (dl1651t) | Ask for a price |
|
NA325560000 | 40 | Cable reel moulding assembly (v2 rated) | Ask for a price |
|
|
NA220582000 | 41 | Green rocker switch (white print) 0-1 | Ask for a price |
|
NA903164000 | 41 | filter bracket c/w inserts | Ask for a price |
|
|
NA208885000 | 42 | Neon indicator (everel, b71121g000000) 1 | Ask for a price |
|
NA219546000 | 42 | M5 x 20mm long pozi pan sems screw | Ask for a price |
|
|
NA208300000 | 43 | Autosave 2 speed control pcb | Ask for a price |
|
NA901650000 | 43 | h13 filter cartridge (pph) | Ask for a price |
|
NA901009000 | 44 | Roller wheel | Ask for a price |
|
NA219667000 | 44 | No6 X 1/2" LONG PLASTITE SCREW | Ask for a price |
|
|
NA227957000 | 45 | Blanking plate | Ask for a price |
|
|
NA230096000 | 45 | Suppressor capacitor assembly with discharge resistor | Ask for a price |
|
|
NA903164000 | 46 | filter bracket c/w inserts | Ask for a price |
|
NA291152000 | 50 | No8.1/2 inch lg.t20.screw.z/pl.plastite | Ask for a price |
|
|
NA219546000 | 47 | M5 x 20mm long pozi pan sems screw | Ask for a price |
|
NA291151000 | 51 | M4 x 10mm long t20 sems screw z/pl - product code 8.8 - tx20 head | Ask for a price |
|
|
NA901650000 | 48 | h13 filter cartridge (pph) | Ask for a price |
