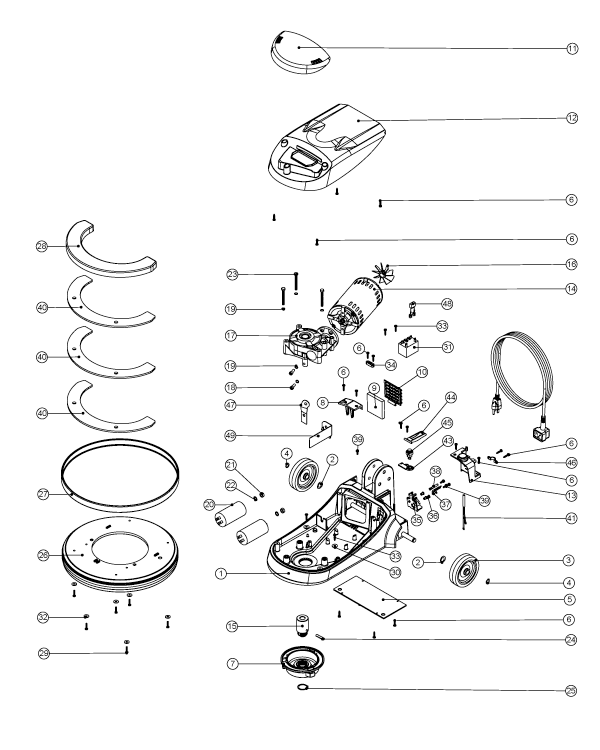

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA304235000 | 1 | Base assembly | Ask for a price |
|
NA219891000 | 2 | 13mm wavey washer | Ask for a price |
|
NA329112000 | 3 | 100mm wheel | Ask for a price |
|
NA219345000 | 4 | 12mm external circlip | Ask for a price |
|
NA304236000 | 5 | Base plate | Ask for a price |
|
NA219914000 | 6 | No6.5/8 inch lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA230207000 | 7 | Die cast chuck machined | Ask for a price |
|
NA229667000 | 8 | Filter cover top | Ask for a price |
|
NA329522000 | 9 | Filter | Ask for a price |
|
NA229668000 | 10 | Filter cover | Ask for a price |
|
NA229791000 | 11 | Loline cap moulding blue | Ask for a price |
|
NA328119000 | 12 | Nll316 blue lid moulding printed nacecare | Ask for a price |
|
NA206866000 | 13 | 10a input cover c/w window plug | Ask for a price |
|
NA314000000 | 15 | Drive shaft | Ask for a price |
|
NA229686000 | 16 | Fan moulding | Ask for a price |
|
NA206791000 | 17 | Emd gearbox (gb12) (21:1 ratio) (120v) | Ask for a price |
|
NA219887000 | 18 | M6 x 16mm stainless steel cap head screw | Ask for a price |
|
NA219544000 | 19 | M6 shakeproof washer | Ask for a price |
|
NA221048000 | 20 | Run cap 50mfd 50/60hz c/w stud | Ask for a price |
|
NA219079000 | 21 | M8 plain nut | Ask for a price |
|
NA219018000 | 22 | M8 shakeproof washer | Ask for a price |
|
NA219224000 | 23 | M6 x 55mm long hex head bolt | Ask for a price |
|
NA230048000 | 25 | 26mm external circlip | Ask for a price |
|
NA229792000 | 26 | Nll 316 deck moulding blue | Ask for a price |
|
NA214111000 | 27 | Buffer ring | Ask for a price |
|
NA229793000 | 28 | Deck weight cover blue | Ask for a price |
|
NA219568000 | 29 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
|
NA219497000 | 30 | M5 nylon washer | Ask for a price |
|
NA206576000 | 31 | 100v-120v / 25a relay | Ask for a price |
|
NA219644000 | 32 | M5 form g stainless steel washer | Ask for a price |
|
NA221152000 | 33 | No6 x 12mm long pozi pan self tap screw | Ask for a price |
|
NA227008000 | 34 | Black cable clamp | Ask for a price |
|
NA216288000 | 35 | Terminal block | Ask for a price |
|
NA219009000 | 36 | M4 brass tappex insert | Ask for a price |
|
NA206563000 | 37 | Earth contact pin | Ask for a price |
|
NA206562000 | 38 | Contact pin | Ask for a price |
|
NA219471000 | 39 | M4 x 12mm long pozi pan sems screw | Ask for a price |
|
NA429098000 | 40 | Weight painted silver grey | Ask for a price |
|
NA321266000 | 41 | Ac led with terminals (120v) | Ask for a price |
|
NA236083000 | 42 | Mains cable (15.0 meters / 16 awg / 3 core yellow cable / socket + csa plug) | Ask for a price |
|
NA216293000 | 43 | Lever plate | Ask for a price |
|
NA216292000 | 44 | Cut out lever | Ask for a price |
|
NA229454000 | 45 | Handle switch | Ask for a price |
|
NA229729000 | 46 | 10amp plug clamp | Ask for a price |
|
NA304250000 | 47 | Capacitor plate | Ask for a price |
|
NA230136000 | 48 | Suppressor assembly | Ask for a price |
|
NA304251000 | 49 | Capacitor guard plate | Ask for a price |
