13" Low Speed Floor Machine LL 316 #NA704421000

Spare Parts for:

13" Low Speed Floor Machine LL 316
#NA704421000


LL316 Low speed burnisher with shampoo tank

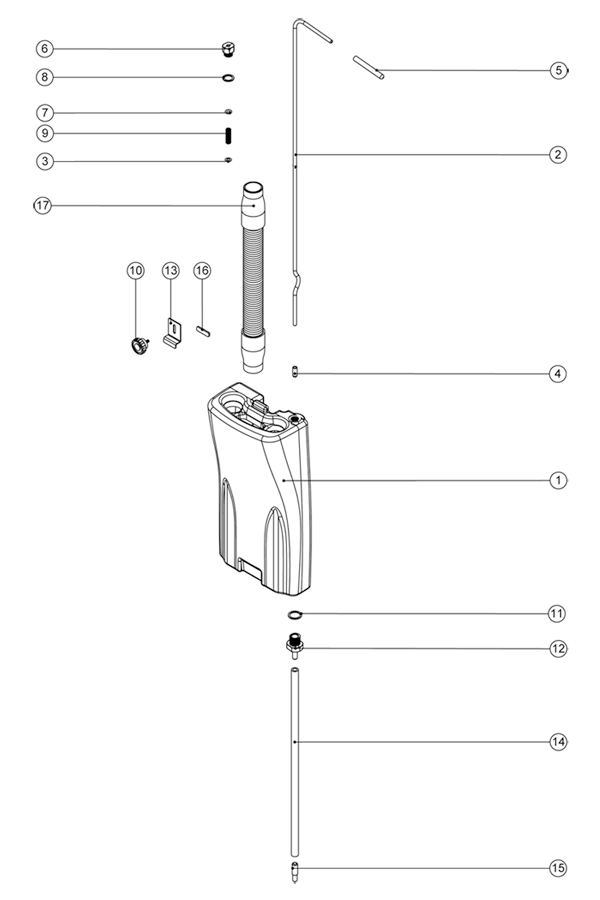

Parts Schema
Tank Solution Assembly (0729) Serial numbers 0729 and higher
Image SKU# Label on drawing Description Ask for a price
NA606101000 1 Shampoo tank Ask for a price
NA206740000 2 Loline solution tank pull handle Ask for a price
NA219560000 3 M6 form b stainless steel washer Ask for a price
NA229006000 4 End tip Ask for a price
NA229007000 5 Rod cap Ask for a price
NA229093000 6 Top fitting Ask for a price
NA229082000 7 O ring Ask for a price
NA206908000 8 Rubber washer 21.5mm o/d x 16mm i/d Ask for a price
NA229130000 9 Spring Ask for a price
NA219141000 10 M5 solution tank knob Ask for a price
NA206907000 11 Rubber washer 25.5mm o/d x 20mm i/d Ask for a price
NA229094000 12 Bottom fitting Ask for a price
NA329535000 13 Loline solution tank bracket Ask for a price
NA303694000 14 430mm long solution tube Ask for a price
NA229092000 15 Tube connector Ask for a price
NA229261000 16 Foam clamp pad Ask for a price
NA213041000 17 Solution mix hose for Low Speed Floor Machine LL316 Ask for a price

Parts Schemas List

Parts Schema
Schema Version
Serial numbers between 0644 to 0702
Serial numbers between 0644 to 0702
Serial numbers between 0703 to 0706
Serial numbers 0707 and higher
Serial numbers between 0719 to 0738
Serial numbers 0739 and higher
Serial numbers between 0635 to 0728
Serial numbers between 0635 to 0728
Serial numbers 0729 and higher
