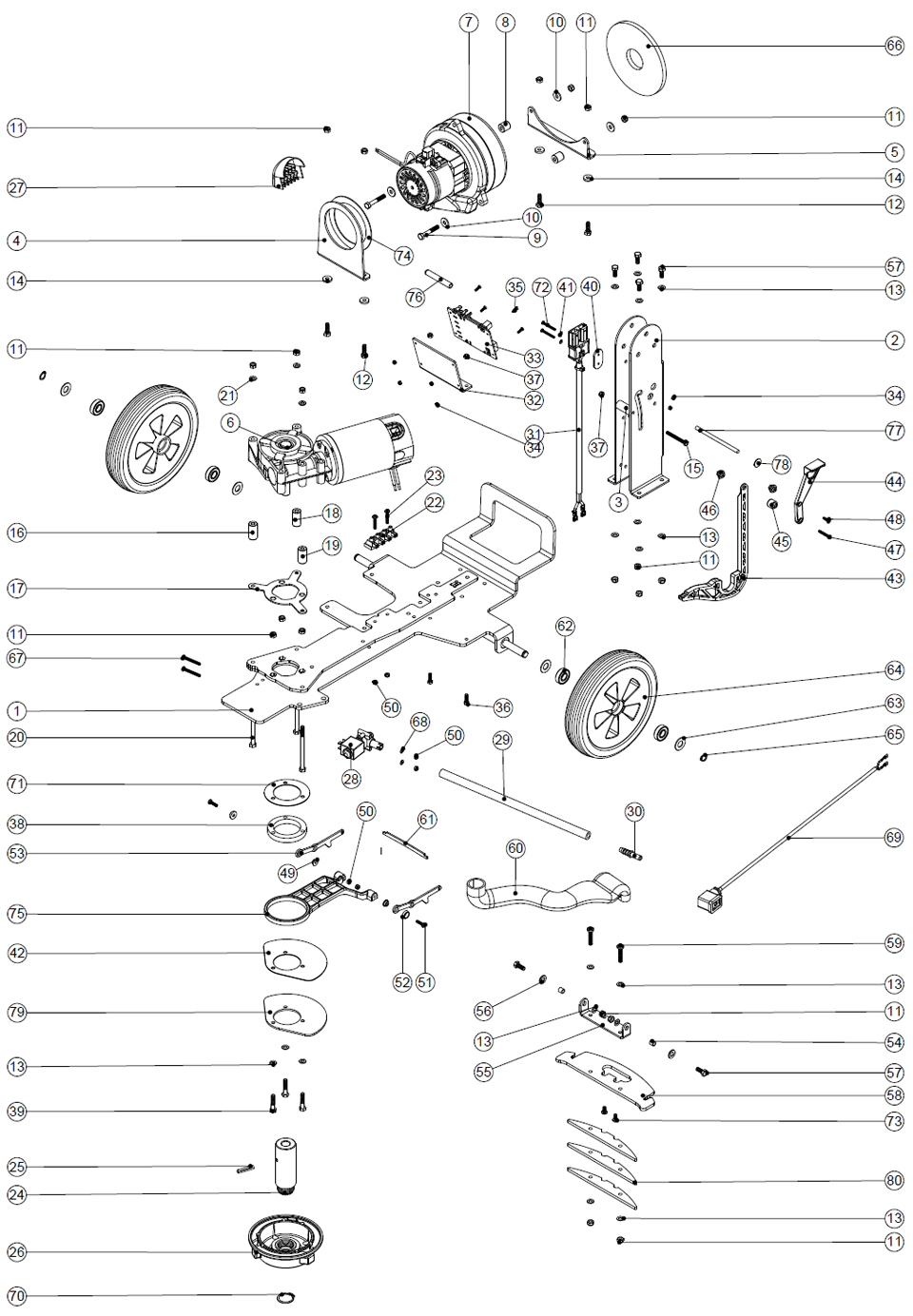

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA429123000 | 1 | Ttb 1840 chassis welded assembly | Ask for a price |
|
NA392092000 | 2 | Ttb 1840 handle mounting bracket | Ask for a price |
|
NA208465000 | 3 | Ttb 1840 handle spacer | Ask for a price |
|
NA429124000 | 4 | Ttb 1840 front motor plate | Ask for a price |
|
NA429125000 | 5 | Ttb 1840 rear vac motor plate | Ask for a price |
|
NA205239000 | 7 | 24v 2 stage vacuum motor with tangential discharge and tube | Ask for a price |
|
NA229187000 | 8 | 15mm spacer | Ask for a price |
|
NA21965V000 | 9 | M6 x 40mm long hex bolt | Ask for a price |
|
NA219008000 | 10 | M6 form g washer | Ask for a price |
|
NA219642000 | 11 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219976000 | 12 | M6 x 20mm long hexangonal head set screw | Ask for a price |
|
NA219560000 | 13 | M6 form b stainless steel washer | Ask for a price |
|
NA208472000 | 14 | Rubber spacer | Ask for a price |
|
NA219706000 | 15 | M5 x 45mm long stainless steel hexagonal bolt | Ask for a price |
|
NA208461000 | 16 | 30mm gearbox spacer | Ask for a price |
|
NA429127000 | 17 | Nut retaining plate z/pl | Ask for a price |
|
NA208460000 | 18 | 29mm gearbox spacer | Ask for a price |
|
NA208459000 | 19 | 28mm gearbox spacer | Ask for a price |
|
NA291021000 | 20 | M6 x 90mm long stainless steel hexagonal head bolt | Ask for a price |
|
NA219870000 | 21 | M6 form a washer stainless steel | Ask for a price |
|
NA220204000 | 22 | Terminal block | Ask for a price |
|
NA219267000 | 23 | M4 x 20mm long pozi pan sems screw | Ask for a price |
|
NA208447000 | 24 | Ttb 1840 drive shaft | Ask for a price |
|
NA314050000 | 26 | Ttb 1840 modified chuck | Ask for a price |
|
NA237218000 | 27 | Ttb 1840 vac diffuser | Ask for a price |
|
NA220379000 | 28 | Electric solenoid valve for autoscrubber from Nacecare. | Ask for a price |
|
NA303962000 | 29 | Solenoid tube (230mm) | Ask for a price |
|
NA206796000 | 30 | Barbed connector | Ask for a price |
|
NA321619000 | 31 | Ttb 1840 dc connector assembly | Ask for a price |
|
NA429128000 | 32 | Ttb 1840 pcb mounting plate | Ask for a price |
|
NA310067000 | 33 | PCB Replacement Kit | Ask for a price |
|
NA219070000 | 34 | M3 nylon insert nut | Ask for a price |
|
NA219236000 | 35 | M3 x 10mm long slot screw | Ask for a price |
|
NA219904000 | 36 | M5 x16mm long hexagonal stainless steel bolt | Ask for a price |
|
NA219633000 | 37 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA208449000 | 38 | Ttb 1840 swing arm centre pivot | Ask for a price |
|
NA291022000 | 39 | M6 x 30mm long stainless steel hexagonal head bolt | Ask for a price |
|
NA392126000 | 40 | Ttb 1840 dc connector back plate | Ask for a price |
|
NA219237000 | 41 | M3 form a washer | Ask for a price |
|
NA208482000 | 42 | Ttb 1840 swing arm nylon plate | Ask for a price |
|
NA237238000 | 43 | Ttb 1840 squeegee lift arm | Ask for a price |
|
NA237239000 | 44 | Ttb 1840 squeegee lift handle | Ask for a price |
|
NA237240000 | 45 | Ttb 1840 lift spacer | Ask for a price |
|
NA237241000 | 46 | Ttb 1840 screw end | Ask for a price |
|
NA219602000 | 47 | No6 X 1 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA219667000 | 48 | No6 X 1/2" LONG PLASTITE SCREW | Ask for a price |
|
NA237265000 | 49 | Pivot bush | Ask for a price |
|
NA219687000 | 50 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA219862000 | 51 | M4 x 16mm long pozi pan stainless steel screw | Ask for a price |
|
NA219573000 | 52 | Screw insulator | Ask for a price |
|
NA392120000 | 53 | Ttb 1840 squeegee pivot arm | Ask for a price |
|
NA208475000 | 54 | 8mm spacer | Ask for a price |
|
NA039211900 | 55 | Pipe connecting bracket | Ask for a price |
|
NA219578000 | 56 | M8 form a stainless steel washer | Ask for a price |
|
NA219719000 | 57 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA042912900 | 58 | Ttb 1840 squeegee skid plate | Ask for a price |
|
NA219984000 | 59 | M6 x 30mm lg pozi-pan stainless steel machine screw | Ask for a price |
|
NA090253100 | 60 | Ttb 1840 fluid pipe | Ask for a price |
|
NA392124000 | 61 | Ttb 1840 squeegee lift plate | Ask for a price |
|
NA206637000 | 62 | Stainless steel bearing | Ask for a price |
|
NA208490000 | 63 | Ttb 1840 wheel washer | Ask for a price |
|
NA219345000 | 65 | 12mm external circlip | Ask for a price |
|
NA208477000 | 66 | Motor pad | Ask for a price |
|
NA219703000 | 67 | M4 x 35mm long stainless steel pozi pan screw | Ask for a price |
|
NA219688000 | 68 | M4 form a stainless steel washer | Ask for a price |
|
NA236153000 | 69 | Ttb 1840 solenoid lead c/w terminals | Ask for a price |
|
NA230048000 | 70 | 26mm external circlip | Ask for a price |
|
NA208491000 | 71 | Ttb 1840 nylon disc | Ask for a price |
|
NA219611000 | 72 | M3 x 30mm long pozi pan screw | Ask for a price |
|
NA219668000 | 73 | M5 x 10mm long pozi pan stainless steel screw | Ask for a price |
|
NA392139000 | 74 | Tt/b 1840 vac disc plate | Ask for a price |
|
NA429133000 | 75 | Ttb 1840 swing arm painted | Ask for a price |
|
NA391400000 | 77 | Hose retaining bar | Ask for a price |
|
NA21926V000 | 78 | 6mm chrome hub cap | Ask for a price |
|
NA429126000 | 79 | Ttb 1840 swing arm bottom plate | Ask for a price |
|
NA429131000 | 80 | Ttb 1840 additional weight | Ask for a price |
