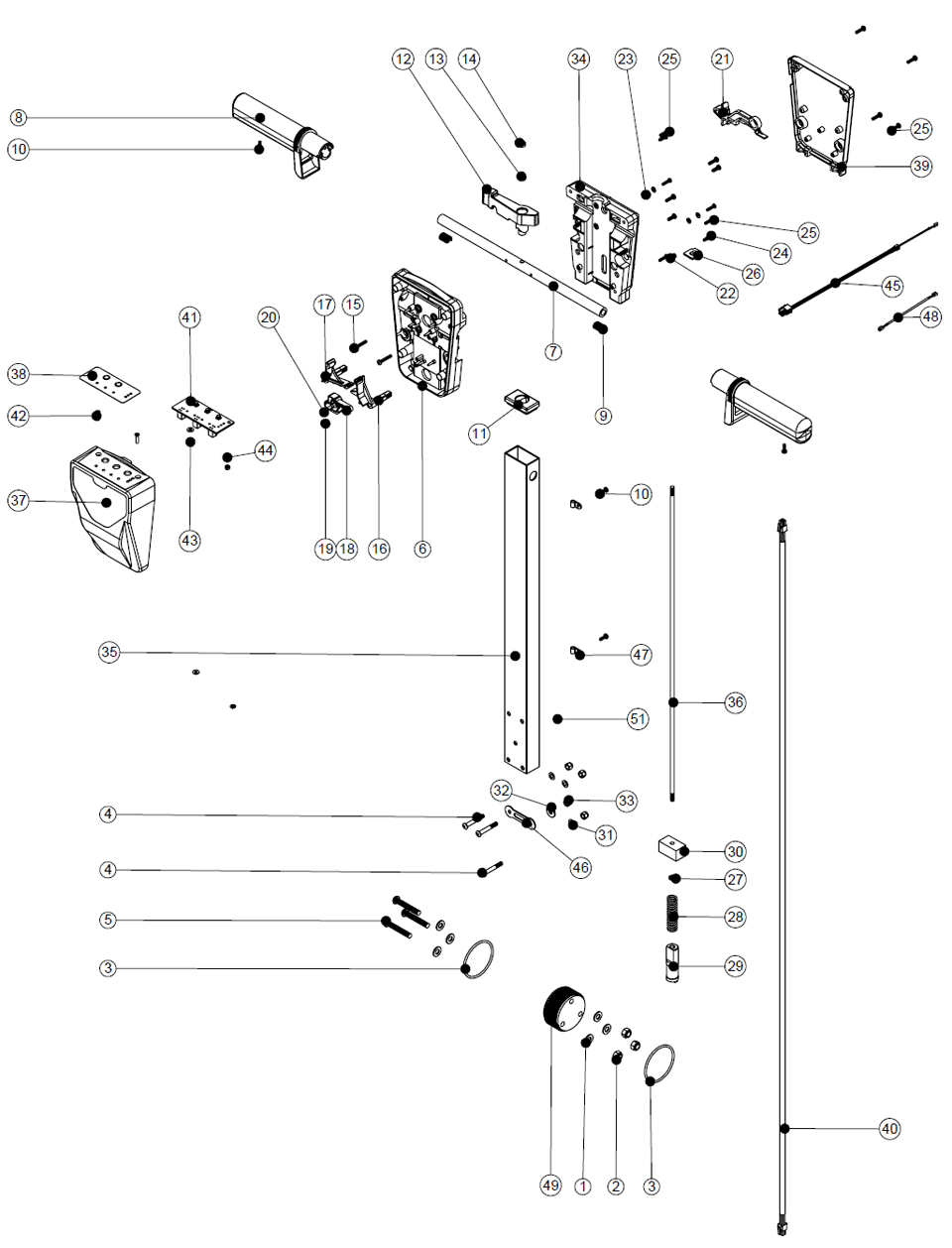

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA219010000 | 1 | M8 form a washer | Ask for a price |
|
NA219078000 | 2 | M8 nylon insert nut | Ask for a price |
|
NA219254000 | 3 | O ring 3mm dia x 60mm i/d | Ask for a price |
|
NA219807000 | 4 | M6 x 40mm long socket button head bolt | Ask for a price |
|
NA219922000 | 5 | M8 x 50mm long socket button head stainless steel bolt | Ask for a price |
|
NA227576000 | 6 | Front inner half moulding | Ask for a price |
|
NA338269000 | 7 | Cross tube | Ask for a price |
|
NA227580000 | 8 | Hand grip moulding | Ask for a price |
|
NA219803000 | 9 | Trigger compression spring | Ask for a price |
|
NA219270000 | 10 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Ask for a price |
|
NA227582000 | 11 | Handle plug moulding | Ask for a price |
|
NA227583000 | 12 | Adjustment lever moulding | Ask for a price |
|
NA219493000 | 13 | M6 nylon washer | Ask for a price |
|
NA219642000 | 14 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219811000 | 15 | No8 x 1 inch long pozi-pan self tap screw | Ask for a price |
|
NA227585000 | 16 | Left hand switch operating lever moulding | Ask for a price |
|
NA227586000 | 17 | Right hand switch operating lever moulding | Ask for a price |
|
NA227587000 | 18 | Centre switch operating lever moulding | Ask for a price |
|
NA219805000 | 19 | 4mm spirefix | Ask for a price |
|
NA219804000 | 20 | Switch compression spring | Ask for a price |
|
NA227584000 | 21 | Interlock lever moulding | Ask for a price |
|
NA219107000 | 22 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA219206000 | 23 | M4 form a washer | Ask for a price |
|
NA219101000 | 24 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Ask for a price |
|
NA219105000 | 25 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA227666000 | 26 | Blanking plug | Ask for a price |
|
NA219099000 | 27 | M6 half nut | Ask for a price |
|
NA229138000 | 28 | Spring | Ask for a price |
|
NA229073000 | 29 | Gear locking pin | Ask for a price |
|
NA229030000 | 30 | Anti vibration pad | Ask for a price |
|
NA219007000 | 31 | M6 form b washer | Ask for a price |
|
NA219008000 | 32 | M6 form g washer | Ask for a price |
|
NA219088000 | 33 | M6 nylon insert nut | Ask for a price |
|
NA227577000 | 34 | Rear inner half moulding | Ask for a price |
|
NA429132000 | 35 | Tt 1840 handle tube (mains) painted | Ask for a price |
|
NA215029000 | 36 | 610mm handle locking rod | Ask for a price |
|
NA237429000 | 37 | Ttb 1840 front cover moulding hi/lo | Ask for a price |
|
NA208483000 | 38 | Control board overlay | Ask for a price |
|
NA227579000 | 39 | Rear cover moulding | Ask for a price |
|
NA208469000 | 40 | Ttb 1840 4 core loom assembly | Ask for a price |
|
NA909609000 | 41 | TTB 516 PCB KIT | Ask for a price |
|
NA219407000 | 42 | M4 x 16mm long pozi pan countersunk screw | Ask for a price |
|
NA219083000 | 43 | M4 nylon insert nut | Ask for a price |
|
NA208521000 | 44 | Nylon washer 10.0 od x 4.1 id x 1.0mm | Ask for a price |
|
NA208486000 | 45 | 3 core handle loom | Ask for a price |
|
NA229139000 | 46 | Cable clamp | Ask for a price |
|
NA208496000 | 47 | P clip | Ask for a price |
|
NA321627000 | 48 | 130mm black link wire | Ask for a price |
|
NA229074000 | 49 | Adjustment gear | Ask for a price |
|
NA219688000 | 50 | M4 form a stainless steel washer | Ask for a price |
|
NA229009000 | 51 | Blanking plug | Ask for a price |
