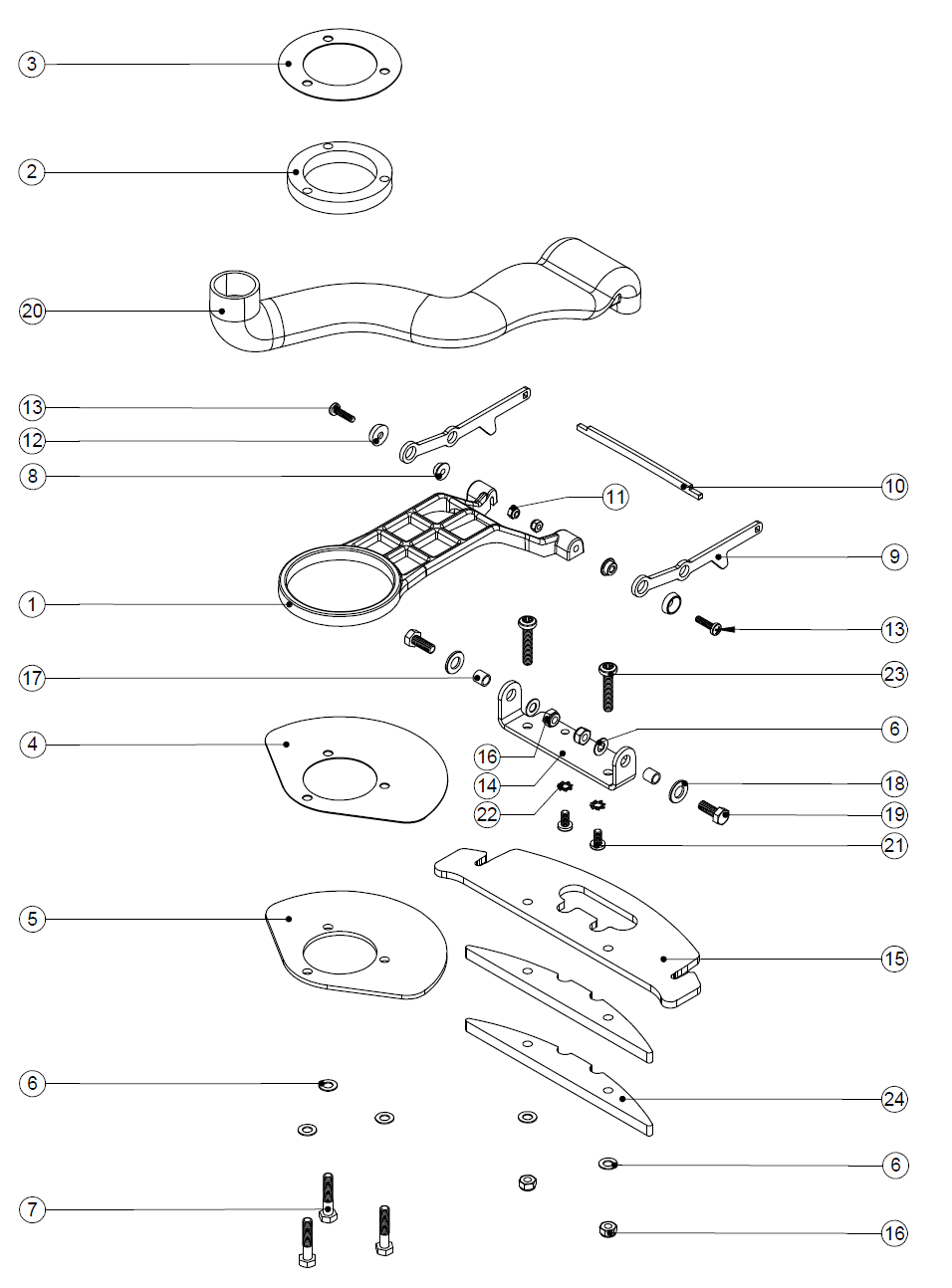

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA429133000 | 1 | Ttb 1840 swing arm painted | Ask for a price |
|
NA208449000 | 2 | Ttb 1840 swing arm centre pivot | Ask for a price |
|
NA208491000 | 3 | Ttb 1840 nylon disc | Ask for a price |
|
NA208482000 | 4 | Ttb 1840 swing arm nylon plate | Ask for a price |
|
NA429126000 | 5 | Ttb 1840 swing arm bottom plate | Ask for a price |
|
NA219560000 | 6 | M6 form b stainless steel washer | Ask for a price |
|
NA291022000 | 7 | M6 x 30mm long stainless steel hexagonal head bolt | Ask for a price |
|
NA237265000 | 8 | Pivot bush | Ask for a price |
|
NA392120000 | 9 | Ttb 1840 squeegee pivot arm | Ask for a price |
|
NA392124000 | 10 | Ttb 1840 squeegee lift plate | Ask for a price |
|
NA219687000 | 11 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA219573000 | 12 | Screw insulator | Ask for a price |
|
NA219862000 | 13 | M4 x 16mm long pozi pan stainless steel screw | Ask for a price |
|
NA039211900 | 14 | Pipe connecting bracket | Ask for a price |
|
NA042912900 | 15 | Ttb 1840 squeegee skid plate | Ask for a price |
|
NA219642000 | 16 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA208475000 | 17 | 8mm spacer | Ask for a price |
|
NA219578000 | 18 | M8 form a stainless steel washer | Ask for a price |
|
NA219719000 | 19 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA219668000 | 21 | M5 x 10mm long pozi pan stainless steel screw | Ask for a price |
|
NA291020000 | 22 | M5 stainless steel external shakeproof lock washer | Ask for a price |
|
NA219984000 | 23 | M6 x 30mm lg pozi-pan stainless steel machine screw | Ask for a price |
|
NA429131000 | 24 | Ttb 1840 additional weight | Ask for a price |
