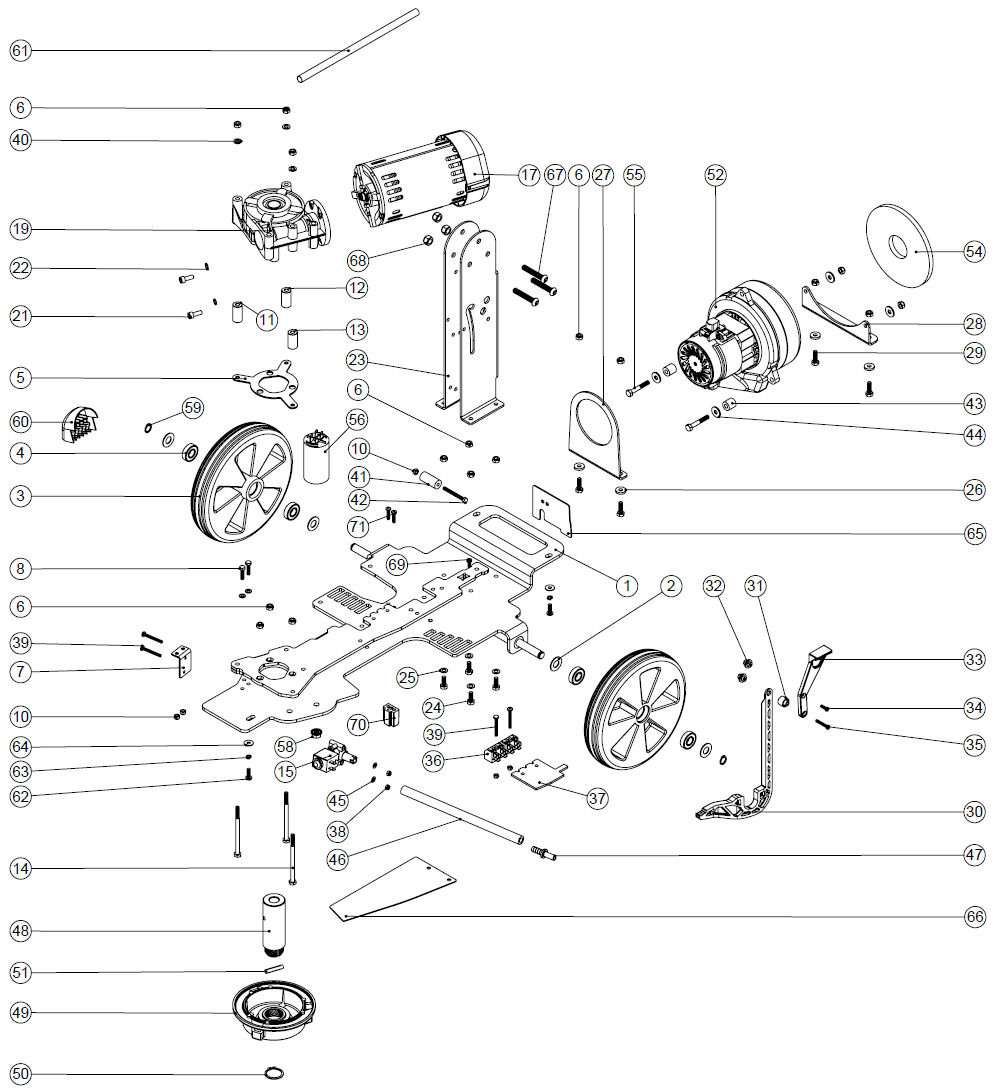

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA429137000 | 1 | Tt 1840 chasis (mains) z/pl | Ask for a price |
|
NA208490000 | 2 | Ttb 1840 wheel washer | Ask for a price |
|
NA206637000 | 4 | Stainless steel bearing | Ask for a price |
|
NA429127000 | 5 | Nut retaining plate z/pl | Ask for a price |
|
NA219642000 | 6 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA392117000 | 7 | Ttb 1840 solenoid bracket | Ask for a price |
|
NA291029000 | 8 | M5.20mm lg.hex.screw s/s | Ask for a price |
|
NA219355000 | 9 | M5 form a stainless steel washer | Ask for a price |
|
NA219633000 | 10 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA208461000 | 11 | 30mm gearbox spacer | Ask for a price |
|
NA208460000 | 12 | 29mm gearbox spacer | Ask for a price |
|
NA208459000 | 13 | 28mm gearbox spacer | Ask for a price |
|
NA291021000 | 14 | M6 x 90mm long stainless steel hexagonal head bolt | Ask for a price |
|
NA220348000 | 15 | Solenoid valve 240v 50/60hz | Ask for a price |
|
NA220350000 | 15 | Solenoid valve 110v 50/60hz (110-120v) | Ask for a price |
|
NA205255000 | 17 | 220-240v 50/60hz brush drive motor with fan | Ask for a price |
|
NA206791000 | 19 | Emd gearbox (gb12) (21:1 ratio) (120v) | Ask for a price |
|
NA206754000 | 19 | Emd gearbox (gb12) (18.67:1 ratio) | Ask for a price |
|
NA219887000 | 21 | M6 x 16mm stainless steel cap head screw | Ask for a price |
|
NA219544000 | 22 | M6 shakeproof washer | Ask for a price |
|
NA392092000 | 23 | Ttb 1840 handle mounting bracket | Ask for a price |
|
NA219719000 | 24 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA219560000 | 25 | M6 form b stainless steel washer | Ask for a price |
|
NA208472000 | 26 | Rubber spacer | Ask for a price |
|
NA429124000 | 27 | Ttb 1840 front motor plate | Ask for a price |
|
NA429125000 | 28 | Ttb 1840 rear vac motor plate | Ask for a price |
|
NA219976000 | 29 | M6 x 20mm long hexangonal head set screw | Ask for a price |
|
NA237238000 | 30 | Ttb 1840 squeegee lift arm | Ask for a price |
|
NA237240000 | 31 | Ttb 1840 lift spacer | Ask for a price |
|
NA237241000 | 32 | Ttb 1840 screw end | Ask for a price |
|
NA237239000 | 33 | Ttb 1840 squeegee lift handle | Ask for a price |
|
NA219667000 | 34 | No6 X 1/2" LONG PLASTITE SCREW | Ask for a price |
|
NA219602000 | 35 | No6 X 1 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA208532000 | 36 | Tab terminal block 2 pole | Ask for a price |
|
NA392317000 | 37 | Raiser plate | Ask for a price |
|
NA219687000 | 38 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA219703000 | 39 | M4 x 35mm long stainless steel pozi pan screw | Ask for a price |
|
NA219870000 | 40 | M6 form a washer stainless steel | Ask for a price |
|
NA208465000 | 41 | Ttb 1840 handle spacer | Ask for a price |
|
NA219706000 | 42 | M5 x 45mm long stainless steel hexagonal bolt | Ask for a price |
|
NA229187000 | 43 | 15mm spacer | Ask for a price |
|
NA219008000 | 44 | M6 form g washer | Ask for a price |
|
NA219688000 | 45 | M4 form a stainless steel washer | Ask for a price |
|
NA303962000 | 46 | Solenoid tube (230mm) | Ask for a price |
|
NA206796000 | 47 | Barbed connector | Ask for a price |
|
NA208447000 | 48 | Ttb 1840 drive shaft | Ask for a price |
|
NA314050000 | 49 | Ttb 1840 modified chuck | Ask for a price |
|
NA230048000 | 50 | 26mm external circlip | Ask for a price |
|
NA323104000 | 51 | Tt 1840 115-120v motor mod (110-120v) | Ask for a price |
|
NA205254000 | 52 | 220-240v 2 stage vacuum motor with tangential discharge and tube | Ask for a price |
|
NA208477000 | 54 | Motor pad | Ask for a price |
|
NA208778000 | 55 | Run cap c/w 8mm stud & fast on tab terminals (110-120v) | Ask for a price |
|
NA21965V000 | 55 | M6 x 40mm long hex bolt | Ask for a price |
|
NA220876000 | 56 | 20 mfd motor run capacitor | Ask for a price |
|
NA219754000 | 58 | M8 flanged nut | Ask for a price |
|
NA219345000 | 59 | 12mm external circlip | Ask for a price |
|
NA237218000 | 60 | Ttb 1840 vac diffuser | Ask for a price |
|
NA330103000 | 61 | Motor wire sleeve (260mm cut length) | Ask for a price |
|
NA219547000 | 62 | M5 x 16mm long pozi pan stainless steel screw | Ask for a price |
|
NA219861000 | 63 | M5 single coil stainless steel washer | Ask for a price |
|
NA219644000 | 64 | M5 form g stainless steel washer | Ask for a price |
|
NA304461000 | 65 | Tt1840 rear splash plate | Ask for a price |
|
NA304462000 | 66 | Tt1840 motor splash plate | Ask for a price |
|
NA219822000 | 67 | M8 x 45mm long socket button stainless steel head bolt | Ask for a price |
|
NA219639000 | 68 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA219471000 | 69 | M4 x 12mm long pozi pan sems screw | Ask for a price |
|
NA237532000 | 70 | Upper lift block | Ask for a price |
|
NA219568000 | 71 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
