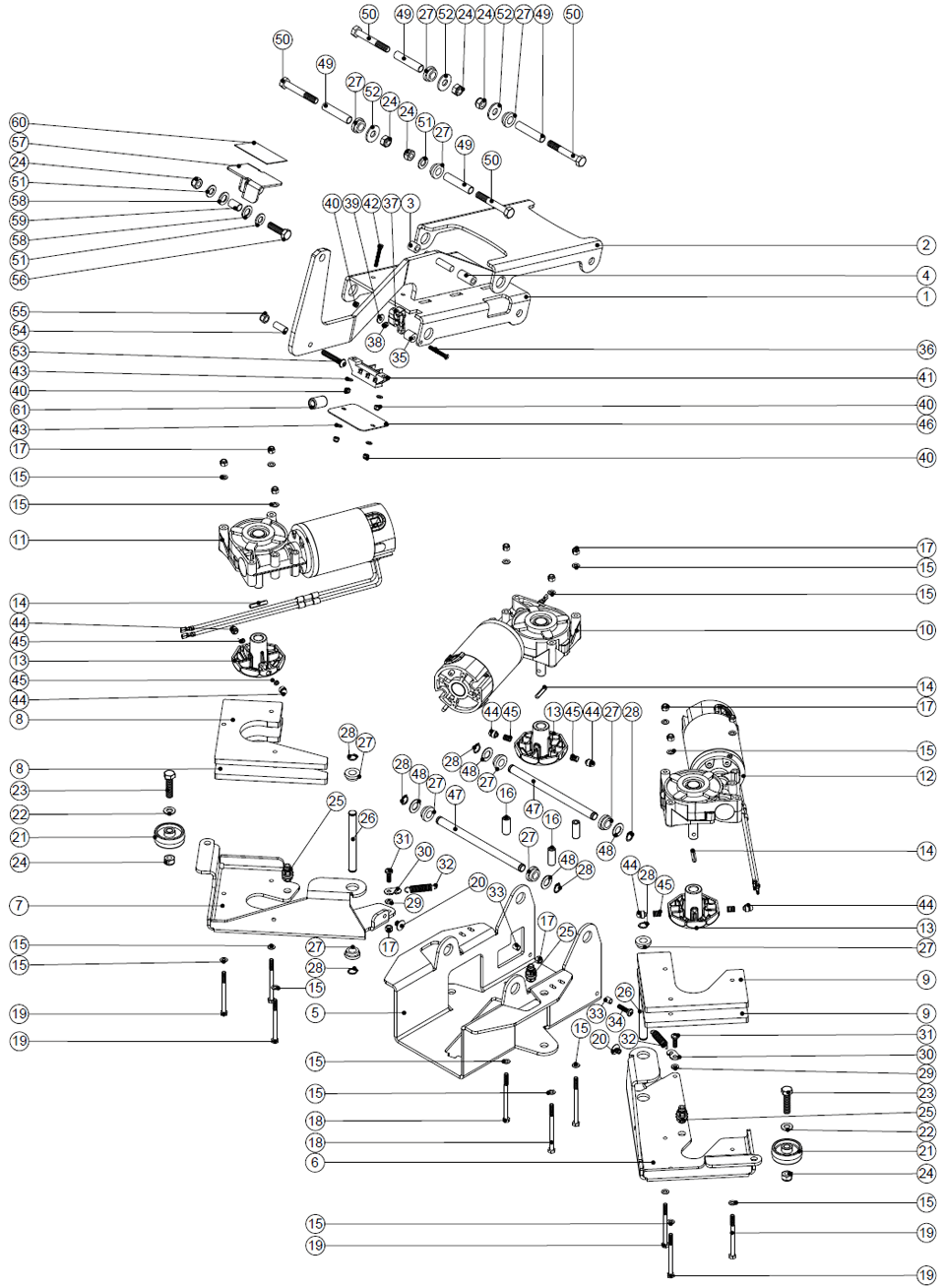

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA303794000 | 1 | Brush deck pedal arm welded assembly | Demander un prix |
|
NA329817000 | 2 | Brush deck rear link | Demander un prix |
|
NA391210000 | 3 | 15mm long silicon tube | Demander un prix |
|
NA391211000 | 4 | 30mm long silicon tube | Demander un prix |
|
NA329816000 | 5 | Brush deck centre pivot | Demander un prix |
|
NA404042000 | 6 | Welded brush deck left pivot (painted anthracite grey) | Demander un prix |
|
NA404043000 | 7 | Welded brush deck right pivot (painted anthracite grey) | Demander un prix |
|
NA404037000 | 8 | Righthand brush deck weight (painted anthracite grey) | Demander un prix |
|
NA404036000 | 9 | Lefthand brush deck weight (painted anthracite grey) | Demander un prix |
|
NA321458000 | 10 | Emd brush drive motor (leads extended 100mm) | Demander un prix |
|
NA321459000 | 11 | Emd brush drive motor (leads extended 400mm) | Demander un prix |
|
NA321460000 | 12 | Emd brush drive motor (leads extended 300mm) | Demander un prix |
|
NA303809000 | 13 | Chuck Casting | Demander un prix |
|
NA219007000 | 15 | M6 form b washer | Demander un prix |
|
NA206851000 | 16 | Motor mounting spacer | Demander un prix |
|
NA219088000 | 17 | M6 nylon insert nut | Demander un prix |
|
NA219534000 | 18 | m6 x 90mm long hex bolt | Demander un prix |
|
NA219915000 | 19 | M6 x 80mm long stainless steel hexagonal head bolt | Demander un prix |
|
NA208024000 | 20 | Push in barbed fastener | Demander un prix |
|
NA206712000 | 21 | 50mm diameter black wheel | Demander un prix |
|
NA219449000 | 22 | M10 form a washer | Demander un prix |
|
NA219589000 | 23 | M10 x 40mm long hex bolt | Demander un prix |
|
NA219649000 | 24 | M10 nylon insert nut | Demander un prix |
|
NA208032000 | 25 | 6mm bulkhead connector | Demander un prix |
|
NA206981000 | 26 | Brush deck pivot pin | Demander un prix |
|
NA208058000 | 27 | Shouldered bush - ø12.9mm i/d | Demander un prix |
|
NA219151000 | 28 | 13mm external circlip | Demander un prix |
|
NA219493000 | 29 | M6 nylon washer | Demander un prix |
|
NA329920000 | 30 | Brush deck spring pivot bracket | Demander un prix |
|
NA219701000 | 31 | M6 x 20mm long pozi pan stainless steel screw | Demander un prix |
|
NA208050000 | 32 | Brush deck rotation spring | Demander un prix |
|
NA219843000 | 33 | 6mm i/d x 9.5mm long spirol spacer (stainless steel) | Demander un prix |
|
NA219056000 | 34 | M6 x 25mm long pozi pan screw | Demander un prix |
|
NA219587000 | 35 | 15.39mm o/d x 5.16mm i/d x 15.88mm long nylon spacer | Demander un prix |
|
NA219376000 | 36 | M5 x 40mm long pozi-countersunk screw | Demander un prix |
|
NA227587000 | 37 | Centre switch operating lever moulding | Demander un prix |
|
NA219804000 | 38 | Switch compression spring | Demander un prix |
|
NA219005000 | 39 | M5 form g washer | Demander un prix |
|
NA219076000 | 40 | M5 nylon insert nut | Demander un prix |
|
NA206788000 | 41 | Terminal block | Demander un prix |
|
NA219971000 | 42 | M5 x 35mm long hexagonal head screw | Demander un prix |
|
NA219003000 | 43 | M5 form a steel washer | Demander un prix |
|
NA208135000 | 44 | Chuck dome | Demander un prix |
|
NA206957000 | 45 | Drive system spring | Demander un prix |
|
NA329922000 | 46 | Brush deck terminal splash gaurd | Demander un prix |
|
NA206980000 | 47 | Pivot tube | Demander un prix |
|
NA219302000 | 48 | M12 form b stainless steel washer | Demander un prix |
|
NA391194000 | 49 | Pivot tube a | Demander un prix |
|
NA219570000 | 50 | M10 x 70mm long hex bolt | Demander un prix |
|
NA219012000 | 51 | M10 form e washer | Demander un prix |
|
NA219948000 | 52 | M10 penny washer | Demander un prix |
|
NA219822000 | 53 | M8 x 45mm long socket button stainless steel head bolt | Demander un prix |
|
NA391191000 | 54 | Lever pivot spacer (s/s 10mm o/d 8mm i/d x 24mm long) | Demander un prix |
|
NA219078000 | 55 | M8 nylon insert nut | Demander un prix |
|
NA219341000 | 56 | M10 x 35mm long hex bolt | Demander un prix |
|
NA329807000 | 57 | Foot pedal hinge bracket | Demander un prix |
|
NA219911000 | 58 | Plastic washer | Demander un prix |
|
NA303811000 | 59 | 12.7mm diameter x 18g x 20mm long stainless steel tube | Demander un prix |
|
NA391221000 | 60 | Foot pedal grip pad | Demander un prix |
|
NA230097000 | 61 | Axial ferrite bead | Demander un prix |
