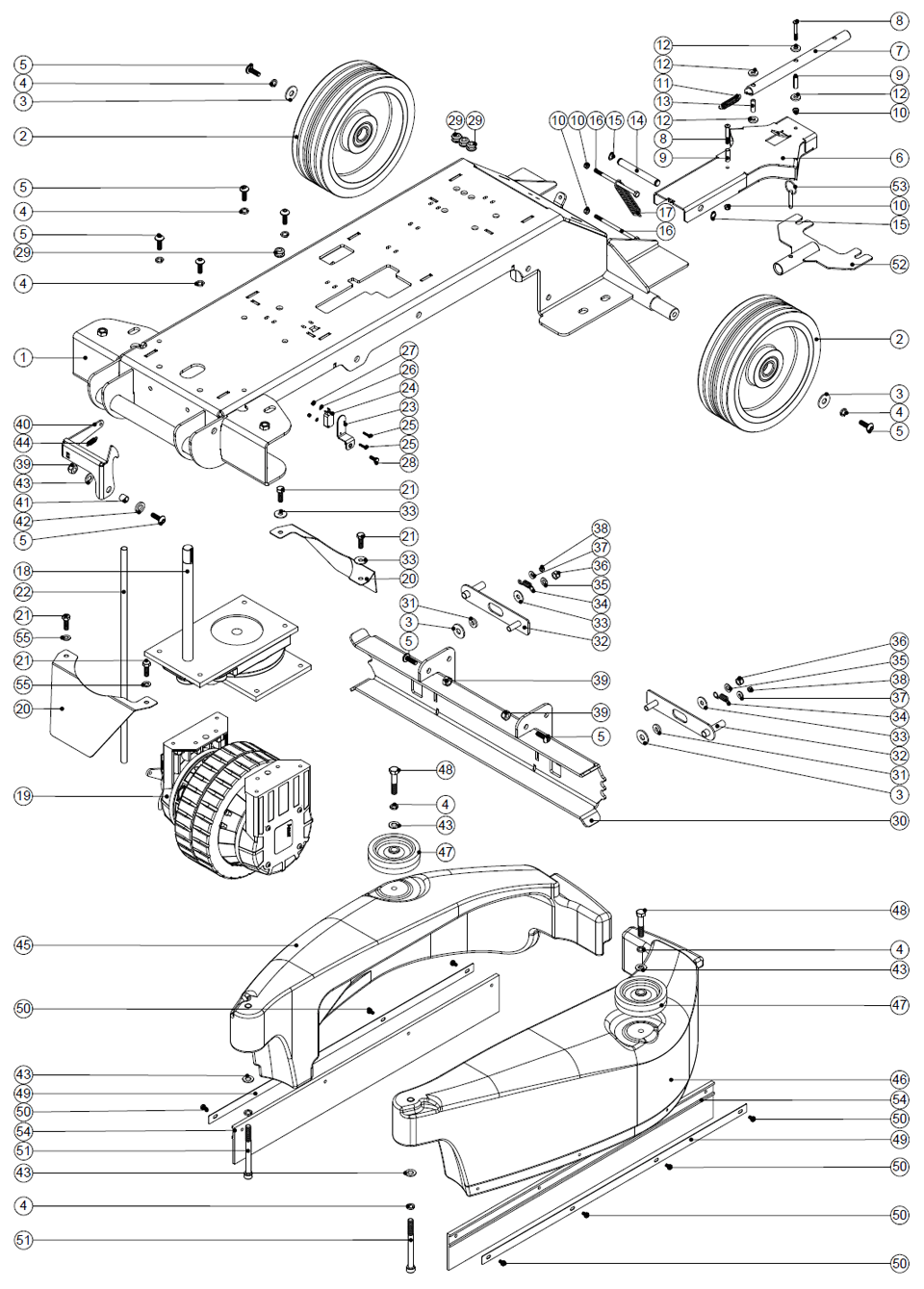

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA404038000 | 1 | Chassis welded assembly (painted anthracite grey) | Demander un prix |
|
NA206939000 | 2 | 254mm diameter wheel | Demander un prix |
|
NA219948000 | 3 | M10 penny washer | Demander un prix |
|
NA219349000 | 4 | M10 single coil washer | Demander un prix |
|
NA219910000 | 5 | M10 x 25mm long socket button head stainless steel screw | Demander un prix |
|
NA303797000 | 6 | Top/bottom lifting plate welded assembly | Demander un prix |
|
NA030379900 | 7 | Pivot tube welded assembly | Demander un prix |
|
NA219807000 | 8 | M6 x 40mm long socket button head bolt | Demander un prix |
|
NA206954000 | 9 | Spiro spacer | Demander un prix |
|
NA219642000 | 10 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA206955000 | 11 | Return spring | Demander un prix |
|
NA206964000 | 12 | Slide nylon spacer | Demander un prix |
|
NA206963000 | 13 | Vertical nylon spacer | Demander un prix |
|
NA206965000 | 14 | Pivot axle | Demander un prix |
|
NA219345000 | 15 | 12mm external circlip | Demander un prix |
|
NA219945000 | 16 | M6 x 110mm long hexagonal head bolt zinc plated | Demander un prix |
|
NA20695V000 | 17 | Spring | Demander un prix |
|
NA206928000 | 18 | Steering system | Demander un prix |
|
NA902687000 | 19 | Motor wheel & modified brake lead assembly | Demander un prix |
|
NA329852000 | 20 | Splash gaurd | Demander un prix |
|
NA219092000 | 21 | M8 x 25mm long hex bolt | Demander un prix |
|
NA208091000 | 22 | Pb15mm x 500mm long / sealed ends / black polyester braiding | Demander un prix |
|
NA303841000 | 23 | Nutserted brush deck microswitch bracket | Demander un prix |
|
NA229483000 | 24 | Snap action switch | Demander un prix |
|
NA219038000 | 25 | M3 x 16mm long slot screw models with nord charger | Demander un prix |
|
NA219237000 | 26 | M3 form a washer | Demander un prix |
|
NA219070000 | 27 | M3 nylon insert nut | Demander un prix |
|
NA219045000 | 28 | M5 x 16mm long pozi pan sems screw | Demander un prix |
|
NA229025000 | 29 | Standard grommet | Demander un prix |
|
NA303808000 | 30 | Side pod runner welded assembly | Demander un prix |
|
NA219959000 | 31 | M8 plastic washer | Demander un prix |
|
NA303813000 | 32 | Side pod adjuster bracket welded assembly | Demander un prix |
|
NA219716000 | 33 | M8 form g stainless steel washer | Demander un prix |
|
NA208079000 | 34 | Extension spring | Demander un prix |
|
NA219010000 | 35 | M8 form a washer | Demander un prix |
|
NA219639000 | 36 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA219005000 | 37 | M5 form g washer | Demander un prix |
|
NA219076000 | 38 | M5 nylon insert nut | Demander un prix |
|
NA219649000 | 39 | M10 nylon insert nut | Demander un prix |
|
NA329849000 | 40 | Brush deck foot pedal latch | Demander un prix |
|
NA303810000 | 41 | 12.7mm diameter x 18g x 12.5mm long stainless steel tube | Demander un prix |
|
NA229346000 | 42 | Spacer | Demander un prix |
|
NA219012000 | 43 | M10 form e washer | Demander un prix |
|
NA208019000 | 44 | Brush pedal latch spring | Demander un prix |
|
NA229834000 | 45 | Right hand side pod moulding | Demander un prix |
|
NA229835000 | 46 | Left hand side pod moulding | Demander un prix |
|
NA329187000 | 47 | 100mm wheel (modified) | Demander un prix |
|
NA219968000 | 48 | M10 x 50mm long hex head bolt z/pl | Demander un prix |
|
NA329843000 | 49 | Splash skirt fixing strip | Demander un prix |
|
NA219047000 | 50 | M5 x 10mm long pozi pan sems screw | Demander un prix |
|
NA219967000 | 51 | M10 x 110mm long socket cap screw | Demander un prix |
|
NA303795000 | 52 | Quick release tube/plate welded assembly | Demander un prix |
|
NA206953000 | 53 | Detent pins | Demander un prix |
|
NA206947000 | 54 | Splash skirt | Demander un prix |
|
NA219578000 | 55 | M8 form a stainless steel washer | Demander un prix |
