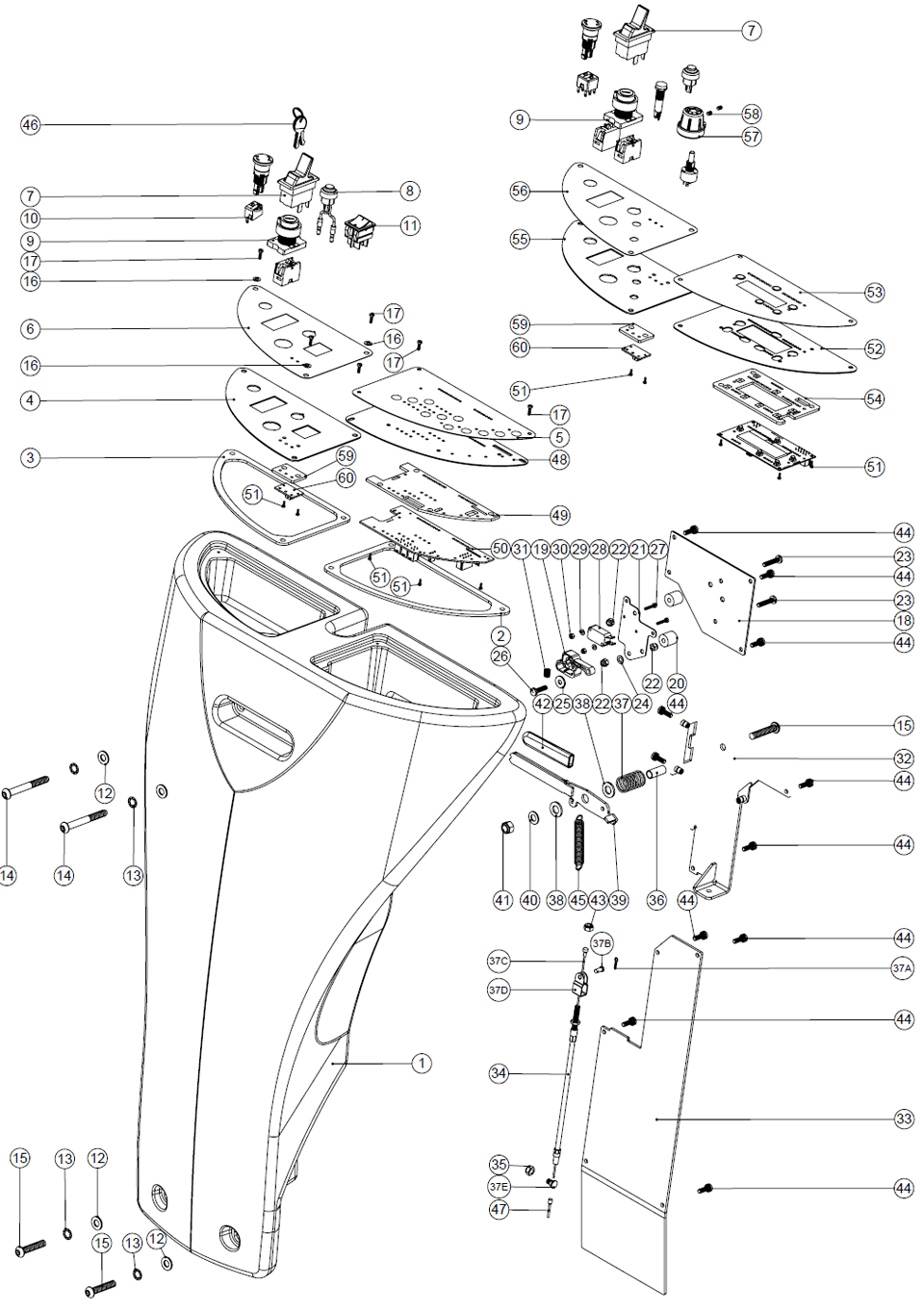

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA229858000 | 1 | Steering column moulding | Demander un prix |
|
NA208096000 | 2 | Pcb gasket | Demander un prix |
|
NA208097000 | 3 | Key panel gasket | Demander un prix |
|
NA304509000 | 4 | Ttv678 key & emergency stop panel back plate painted grey c/w self-clinch nuts ttv678/300t on-board charger | Demander un prix |
|
NA208048000 | 5 | Ride on display panel membrane (pedal version) | Demander un prix |
|
NA208833000 | 6 | Key & e-stop overlay (charger leds) ttv678/300t on-board charger | Demander un prix |
|
NA206933000 | 7 | Paddle switch | Demander un prix |
|
NA321449000 | 8 | Horn switch & soldered lead assembly | Demander un prix |
|
NA208138000 | 9 | Key switch (2 position) | Demander un prix |
|
NA208095000 | 10 | Switch block (single pole / 2 position) (a0151b) | Demander un prix |
|
NA220843000 | 11 | Blue rocker switch | Demander un prix |
|
NA219010000 | 12 | M8 form a washer | Demander un prix |
|
NA219018000 | 13 | M8 shakeproof washer | Demander un prix |
|
NA219806000 | 14 | M8 x 70mm long socket button head bolt | Demander un prix |
|
NA219865000 | 15 | M8 x 40mm long socket bolt | Demander un prix |
|
NA219688000 | 16 | M4 form a stainless steel washer | Demander un prix |
|
NA219236000 | 17 | M3 x 10mm long slot screw | Demander un prix |
|
NA404050000 | 18 | Lever switch plate painted black | Demander un prix |
|
NA227587000 | 19 | Centre switch operating lever moulding | Demander un prix |
|
NA219587000 | 20 | 15.39mm o/d x 5.16mm i/d x 15.88mm long nylon spacer | Demander un prix |
|
NA329831000 | 21 | Lever switch plate 2 | Demander un prix |
|
NA219076000 | 22 | M5 nylon insert nut | Demander un prix |
|
NA219575000 | 23 | M5 x 25mm long pozi pan stainless steel screw | Demander un prix |
|
NA219003000 | 24 | M5 form a steel washer | Demander un prix |
|
NA219005000 | 25 | M5 form g washer | Demander un prix |
|
NA219054000 | 26 | M5 x 20mm long pozi pan screw | Demander un prix |
|
NA219500000 | 27 | m3 x 16mm long stainless steel slot screw | Demander un prix |
|
NA229483000 | 28 | Snap action switch | Demander un prix |
|
NA219237000 | 29 | M3 form a washer | Demander un prix |
|
NA219070000 | 30 | M3 nylon insert nut | Demander un prix |
|
NA219804000 | 31 | Switch compression spring | Demander un prix |
|
NA303790000 | 32 | Lever pivot/selector plate welded assembly | Demander un prix |
|
NA329912000 | 33 | Steering column cover | Demander un prix |
|
NA206959000 | 34 | Lifting cable assembly includes items: 37a,37b,37c,37d,37e | Demander un prix |
|
NA208155000 | 37A | Cotter pin | Demander un prix |
|
NA208158000 | 37B | Cable u bracket pin | Demander un prix |
|
NA208154000 | 37C | Inner cable | Demander un prix |
|
NA208157000 | 37D | Cable u bracket | Demander un prix |
|
NA208156000 | 37E | Cable nipple | Demander un prix |
|
NA391191000 | 36 | Lever pivot spacer (s/s 10mm o/d 8mm i/d x 24mm long) | Demander un prix |
|
NA219592000 | 37 | Compression spring | Demander un prix |
|
NA219449000 | 38 | M10 form a washer | Demander un prix |
|
NA303789000 | 39 | Lever plate weld assembly | Demander un prix |
|
NA219578000 | 40 | M8 form a stainless steel washer | Demander un prix |
|
NA219078000 | 41 | M8 nylon insert nut | Demander un prix |
|
NA206991000 | 42 | Lever handle moulding | Demander un prix |
|
NA219642000 | 43 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219045000 | 44 | M5 x 16mm long pozi pan sems screw | Demander un prix |
|
NA226093000 | 45 | Extension spring | Demander un prix |
|
NA208167000 | 46 | Spare set of keys (2 keys) spare item | Demander un prix |
|
NA208451000 | 47 | Red insulated bootlace ferrule -18mm pin 1 per required when ordering item 37 | Demander un prix |
|
NA304274000 | 48 | Metal pcb support plate painted grey c/w self clinch nuts | Demander un prix |
|
NA392151000 | 49 | Plastic pcb support plate | Demander un prix |
|
NA208518000 | 50 | Usb control panel/pcb (mk3) | Demander un prix |
|
NA219978000 | 51 | M2 x 6mm long pozi pan screw | Demander un prix |
|
NA304478000 | 52 | Tro control panel back plate painted grey c/w clinch nuts tro650 | Demander un prix |
|
NA208795000 | 53 | Tro display panel membrane tro650 | Demander un prix |
|
NA392044000 | 54 | Display pcb plastic cover plate | Demander un prix |
|
NA304489000 | 55 | Tro key & emergency stop panel back plate painted grey c/w self-clinch nuts tro650 on-board charger | Demander un prix |
|
NA404188000 | Key & emergency stop panel back plate painted silver grey tro650 chargerless | Demander un prix | |
|
NA208794000 | 56 | Tro key & emergency stop overlay tro650 on-board charger | Demander un prix |
|
NA208814000 | Tro key & emergency stop overlay non charger version tro650 chargerless | Demander un prix | |
|
NA329363000 | 57 | Speed adjustment knob c/w insert traction machines only | Demander un prix |
|
NA219744000 | 58 | M4 x 6mm long blackodised grub screw traction machines only | Demander un prix |
|
NA392360000 | 59 | Tro charger pcb spacer ttv678/300t, tro650 on-board charger | Demander un prix |
|
NA208805000 | 60 | Led charger display pcb mentzer | Demander un prix |
|
NA208137000 | 61 | Key switch actuator block | Demander un prix |
|
NA206901000 | 62 | Emergency stop (a01es) 24mm diameter button | Demander un prix |
|
NA909620000 | 63 | Tro650 lcd display without detergent | Demander un prix |
|
NA270316000 | 64 | Potentiometer type pe30 22k ohms 20% 3w (no slot in shaft end) traction machines only | Demander un prix |
|
NA270291000 | 65 | Green led indicator 2v c/w 2.2k resistor traction machines only | Demander un prix |
|
NA229454000 | 66 | Handle switch | Demander un prix |
|
NA208458000 | 67 | Switch block (double pole / 2 position) (a0152b) traction machines only | Demander un prix |
