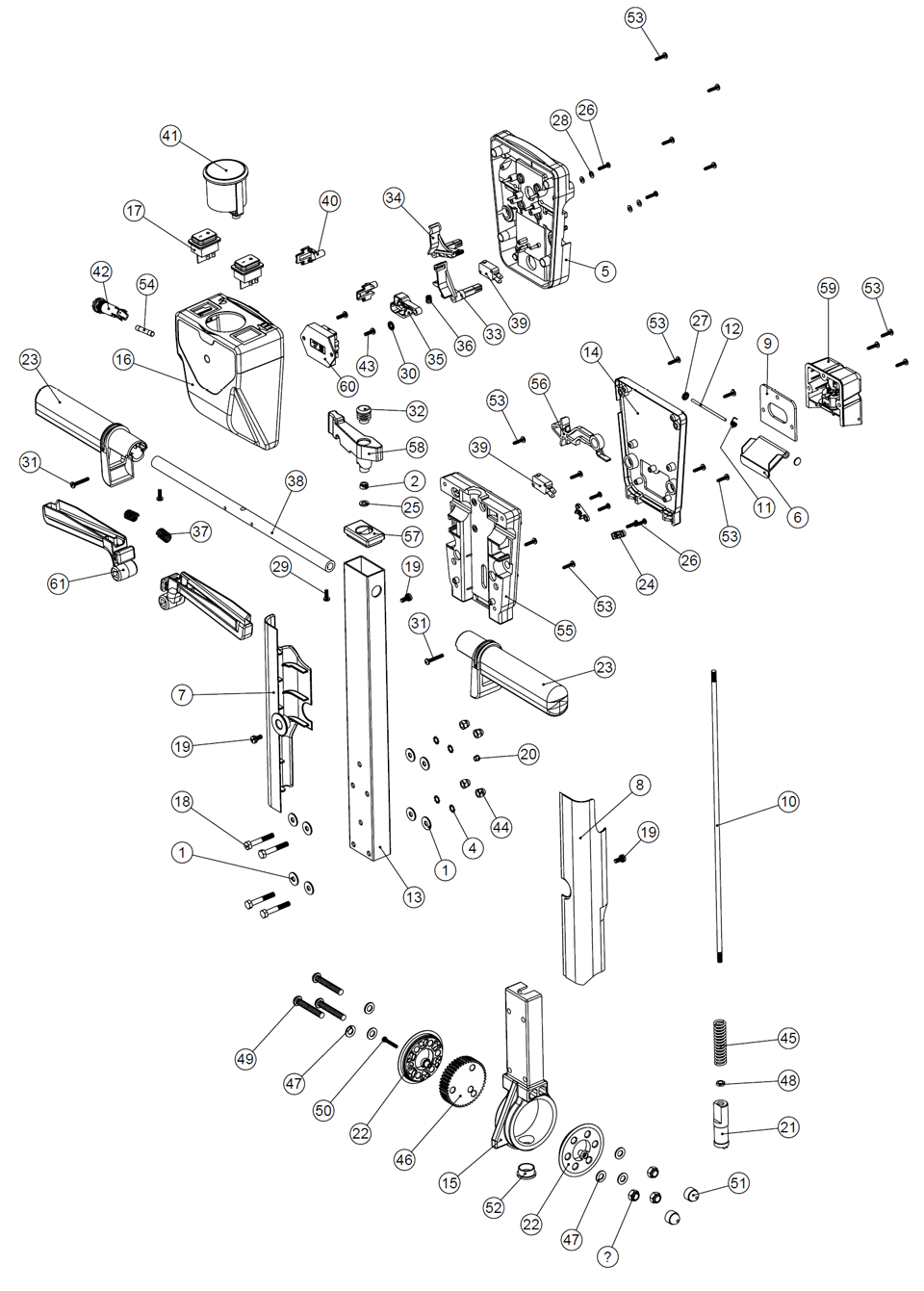

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA219647000 | 1 | M6 form g stainless steel washer | Demander un prix |
|
NA219642000 | 2 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219639000 | 3 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA902353000 | 4 | M6 external shakeproof washer stainless steel | Demander un prix |
|
NA227576000 | 5 | Front inner half moulding | Demander un prix |
|
NA229508000 | 5 | Flame retardant front inner half moulding | Demander un prix |
|
NA227781000 | 6 | Flap moulding | Demander un prix |
|
NA237692000 | 7 | Handle cable cover l/h | Demander un prix |
|
NA237693000 | 8 | Handle cable cover r/h | Demander un prix |
|
NA202105000 | 9 | Socket cover sealing gasket | Demander un prix |
|
NA229461000 | 10 | 440mm handle locking rod | Demander un prix |
|
NA219819000 | 11 | Torsion spring | Demander un prix |
|
NA390979000 | 12 | 72mm long x 3mm diameter stainless steel bar | Demander un prix |
|
NA903603000 | 13 | Tgb/ttg 430mm processed ali handle paint silver | Demander un prix |
|
NA303509000 | 14 | Modified rear cover | Demander un prix |
|
NA303628000 | 14 | Flame retardent modified rear cover moulding | Demander un prix |
|
NA900398000 | 15 | Handle casting machined (hns version) | Demander un prix |
|
NA903556000 | 16 | Tgb handle front cover tfpp | Demander un prix |
|
NA903560000 | 16 | Tgb handle front cover frpp | Demander un prix |
|
NA902235000 | 17 | Switch dpst red illuminated with membrane 24v | Demander un prix |
|
NA291125000 | 18 | M6 x 40 long hex bolt stainless steel | Demander un prix |
|
NA291131000 | 19 | M5 x 12mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA229009000 | 20 | Blanking plug | Demander un prix |
|
NA229073000 | 21 | Gear locking pin | Demander un prix |
|
NA900396000 | 22 | Adjustment gear spacer | Demander un prix |
|
NA227580000 | 23 | Hand grip moulding | Demander un prix |
|
NA229669000 | 24 | Loline handle cable clamp | Demander un prix |
|
NA219493000 | 25 | M6 nylon washer | Demander un prix |
|
NA219107000 | 26 | No6 x 5/8 inch long pozi pan plastite screw | Demander un prix |
|
NA219832000 | 27 | 3mm diameter starlock | Demander un prix |
|
NA219206000 | 28 | M4 form a washer | Demander un prix |
|
NA219270000 | 29 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Demander un prix |
|
NA219805000 | 30 | 4mm spirefix | Demander un prix |
|
NA219811000 | 31 | No8 x 1 inch long pozi-pan self tap screw | Demander un prix |
|
NA20638V000 | 32 | 19mm black tube end stop | Demander un prix |
|
NA227585000 | 33 | Left hand switch operating lever moulding | Demander un prix |
|
NA227586000 | 34 | Right hand switch operating lever moulding | Demander un prix |
|
NA227587000 | 35 | Centre switch operating lever moulding | Demander un prix |
|
NA219804000 | 36 | Switch compression spring | Demander un prix |
|
NA219803000 | 37 | Trigger compression spring | Demander un prix |
|
NA338269000 | 38 | Cross tube | Demander un prix |
|
NA229483000 | 39 | Snap action switch | Demander un prix |
|
NA903558000 | 40 | Tgb handle boss | Demander un prix |
|
NA902532000 | 41 | Battery discharge indicator + hour meter 24v o-ring included | Demander un prix |
|
NA903032000 | 42 | Bulgin panel mount fuseholder | Demander un prix |
|
NA219569000 | 43 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
|
NA219764000 | 44 | M6 stainless steel dome nut | Demander un prix |
|
NA229138000 | 45 | Spring | Demander un prix |
|
NA900397000 | 46 | Mini adjustment gear | Demander un prix |
|
NA219578000 | 47 | M8 form a stainless steel washer | Demander un prix |
|
NA219099000 | 48 | M6 half nut | Demander un prix |
|
NA219922000 | 49 | M8 x 50mm long socket button head stainless steel bolt | Demander un prix |
|
NA291150000 | 50 | No6 x 1 inch long pozi pan screw s/s | Demander un prix |
|
NA903260000 | 51 | Bolt and nut cap | Demander un prix |
|
NA229099000 | 52 | 25mm dia hole plug | Demander un prix |
|
NA021937000 | 53 | No8 X 5/8 INCH LONG PLASTITE STAINLESS STEEL SCREW | Demander un prix |
|
NA903066000 | 54 | FUSE 2.5A (6.3x32) | Demander un prix |
|
NA227577000 | 55 | Rear inner half moulding | Demander un prix |
|
NA229509000 | 55 | Flame retardant rear inner half moulding | Demander un prix |
|
NA227584000 | 56 | Interlock lever moulding | Demander un prix |
|
NA903546000 | 57 | Handle plug moulding (red) | Demander un prix |
|
NA903545000 | 58 | Adjustment lever moulding (red) | Demander un prix |
|
NA904030000 | 59 | 240v emi filter with socket cover assembly (processed) 240v version | Demander un prix |
|
NA903766000 | 60 | Dmh terminal block pcb assembly | Demander un prix |
|
NA903547000 | 61 | Trigger moulding (red) | Demander un prix |
