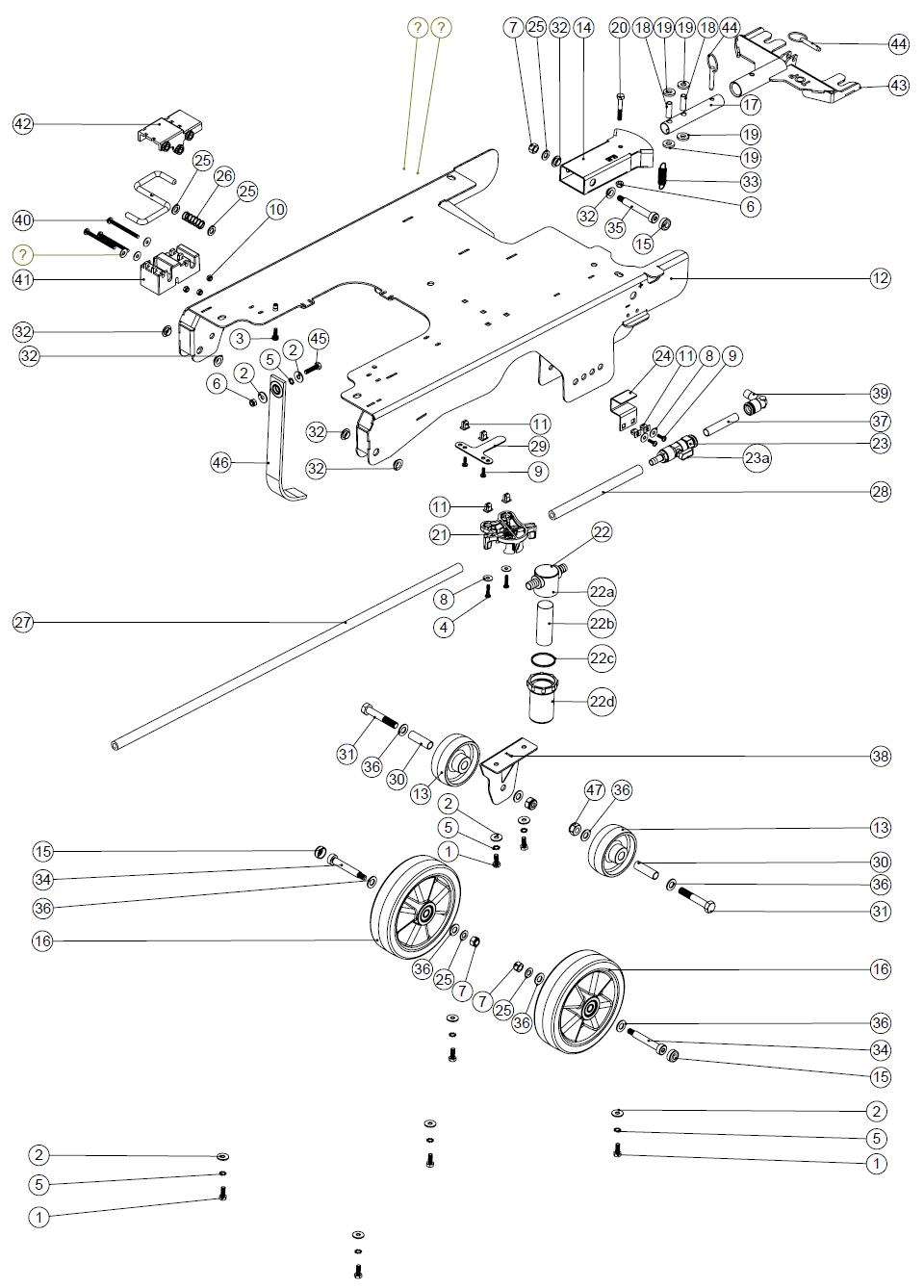

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA219719000 | 1 | M6 x 16mm long hexagonal stainless steel head bolt | Demander un prix |
|
NA219647000 | 2 | M6 form g stainless steel washer | Demander un prix |
|
NA291132000 | 3 | M5 x 16mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA219568000 | 4 | No8 x 3/4 inch long pozi pan stainless steel screw | Demander un prix |
|
NA902353000 | 5 | M6 external shakeproof washer stainless steel | Demander un prix |
|
NA219642000 | 6 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219639000 | 7 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA219644000 | 8 | M5 form g stainless steel washer | Demander un prix |
|
NA219569000 | 9 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
|
NA219633000 | 10 | M5 stainless steel nylon insert nut | Demander un prix |
|
NA900986000 | 11 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Demander un prix |
|
NA903559000 | 12 | Tgb/4045/4055 chassis weld assy (12swg m/s) paint silver | Demander un prix |
|
NA206713000 | 13 | 80mm diameter black wheel | Demander un prix |
|
NA304359000 | 14 | Tt/ttb/4045/4055 squeegee mount weld assembly | Demander un prix |
|
NA237632000 | 15 | Shoulder bolt cover | Demander un prix |
|
NA208638000 | 16 | 160mm WHEEL WITH POLYURETHENE TIRE | Demander un prix |
|
NA304356000 | 17 | Floor tool pivot tube | Demander un prix |
|
NA206954000 | 18 | Spiro spacer | Demander un prix |
|
NA206964000 | 19 | Slide nylon spacer | Demander un prix |
|
NA291125000 | 20 | M6 x 40 long hex bolt stainless steel | Demander un prix |
|
NA901006000 | 21 | Filter mounting bracket | Demander un prix |
|
NA208888000 | 22 | Extended strainer | Demander un prix |
|
NA208827000 | 22a | Strainer black top spare part | Demander un prix |
|
NA208889000 | 22b | Extended strainer 50 mesh screen spare part | Demander un prix |
|
NA208830000 | 22c | Strainer gasket spare part | Demander un prix |
|
NA002088900 | 22d | Extended strainer clear bowl spare part pour TTB 1117 | Demander un prix |
|
NA901542000 | 23 | 12mm push fit to 10mm hose tail ball valve assembly | Demander un prix |
|
NA901544000 | 23a | Tap handle c/w cover and m3x6mm screw (spare item) spare part | Demander un prix |
|
NA392314000 | 24 | 10mm tap bracket | Demander un prix |
|
NA219578000 | 25 | M8 form a stainless steel washer | Demander un prix |
|
NA208578000 | 26 | Deck lock spring | Demander un prix |
|
NA391453000 | 27 | Silicon tube 750mm long x 8mm i/d x 3.2mm wall section | Demander un prix |
|
NA391452000 | 28 | Silicon tube 8mm i/d x 3.2mm wall section (cut 190mm) | Demander un prix |
|
NA321902000 | 29 | Silencer clamp | Demander un prix |
|
NA391440000 | 30 | 1/2 inch x 18g x 41mm long stainless steel spacer tube | Demander un prix |
|
NA219894000 | 31 | M10 x 60mm long hexagonal stainless steel bolt | Demander un prix |
|
NA208312000 | 32 | Igus bearing (gfm 101205) | Demander un prix |
|
NA208619000 | 33 | Floor tool spring | Demander un prix |
|
NA291057000 | 34 | M8 x 10 x 55mm long hex socket shoulder bolt | Demander un prix |
|
NA208574000 | 35 | M8 x 10 x 60mm long hex socket shoulder bolt | Demander un prix |
|
NA219903000 | 36 | M10 form a stainless steel washer | Demander un prix |
|
NA901553000 | 37 | Nylon tube 12mm od x 10mm id (65mm) | Demander un prix |
|
NA903611000 | 38 | Tgb transport wheel bracket weld assembly paint silver | Demander un prix |
|
NA901545000 | 39 | Elbow angle connector 12mm push in to 12mm stem | Demander un prix |
|
NA901558000 | 40 | M5 x 60mm stainless steel pozi pan machine screw | Demander un prix |
|
NA901280000 | 41 | Latch block bottom moulding | Demander un prix |
|
NA901279000 | 42 | Latch block top moulding | Demander un prix |
|
NA304466000 | 43 | Floor tool bracket assembly (tt/ttb4045/4055) | Demander un prix |
|
NA206953000 | 44 | Detent pins | Demander un prix |
|
NA219925000 | 45 | M6 x 25MM LONG STAINLESS STEEL HEX SCREW | Demander un prix |
|
NA903683000 | 46 | Anti-static strap (cut to lenght: 270mm long) | Demander un prix |
|
NA219897000 | 47 | M10 stainless steel nylon insert nut | Demander un prix |
|
NA904440000 | 48 | Deck latch bar | Demander un prix |
|
NA219558000 | 49 | M5 stainless steel nutsert | Demander un prix |
